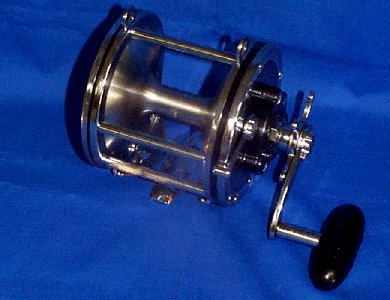

Model Specs:

More Info
  • One-piece cast brass spool.
  • Hard steel driving gears, stainless steel pinion gears.
  • Hand polished chromium plated external metal parts.
  • Comfortable torpedo handle.
  • One-shot lubrication system.
Mono Cap
(yds/lb)
Braid Cap
(yds/lb)
Bearings Gear Ratio
725/30
450/50
390/60
1075/80
925/100
750/130
2 2:1
Availability SKU Name Our Price
REEL DISCONTINUED BY PENN   REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

14 and 114-LH Design Changes - Versions over the years   114 and 114-LH Design Changes - Versions over the years
114 Converting To Left Hand Parts 114-LH 114 Converting To Left Hand Parts
MUST READ!
$0.00 More Info
114 6/0 Senator Reel - Dog/Spring installation   114 6/0 Senator Reel - Dog/Spring installation
1-114 In Stock 1-114
1180455
1-114 Plate, Handle Side Plate (Black)
114 Fits All Versions.
$21.40 More Info
2-114-I In Stock 2-114-I
1180619
2-114-I Inner Side Ring

MULTI USE See Description

$10.35 More Info
2-114-O In Stock 2-114-O
1180620
2-114-O Ring, Outer (See Description)

MULTI USE See Description

Used on multiple models in different quantities.
$13.80 More Info
2N-114 In Stock 2N-114
1180665
2N-114 Ring, Outer Side Ring f/ Full&Half Frame
Used on multiple models in different quantities.
114 Fits Both Half Frames and Full Frame Versions.
114H Fits Full Frame Version.
$9.40 More Info
3-114LH In Stock 3-114LH
1180707
3-114LH Bridge with Sleeve (Left Hand)

114 Fits All Versions.
$29.05 More Info
4-114 In Stock 4-114
1180765
4-114 Washer, Hard Fiber Spacer Washer (Under Main Gear)

114 Fits All Versions.
$1.40 More Info
5-114LH In Stock 5-114LH
1180847
5-114LH Gear, Main Gear (LEFT HAND)

114 Fits All Versions.
$34.60 More Info
6-114SP In Stock 6-114SP 6-114SP Kit, Drag Washer Kit HT-100™ with Metals (10 pcs) $12.50 More Info
6-114 In Stock 6-114
1180910
6-114 Washer, Drag Washer HT-100
114 Fits All Versions.
$1.40 More Info
7-114  In Stock 7-114
1181010
7-114 Washer, Drag, Metal Earred Drag Washer ONLY
114 Fits All Versions.
$1.25 More Info
7C-114 In Stock 7C-114
1181043
7C-114 Washer, Drag, Metal Drag Washers (Set of 6)

114 Fits All Versions.
$10.35 More Info
8-114 In Stock 8-114
1181067
8-114 Spring, Tension Spring (Belleville)
114H Fits All Versions.
$1.30 More Info
8-115 In Stock 8-115
1181068
8-115 Spring, Tension Spring (Thick) (Belleville) $1.40 More Info
9N-114 Discontinued. Not Available 9N-114
1181172
9N-114 Sleeve, Spacing
114 Fits All Versions.
More Info
10-114 In Stock 10-114
1181185
10-114 Star Drag Wheel
114 Fits All Versions.
$6.25 More Info
11-114 In Stock 11-114
1181234
11-114 Jack, Eccentric Jack (Brass)
114 Fits All Versions.
114H Fits All Versions.
$3.05 More Info
12-114 In Stock 12-114
1181262
12-114 Yoke, Pinion Yoke (Brass)
114 Fits All Versions.
114H Fits All Versions.
$2.10 More Info
12-114SS In Stock 12-114SS
SY**#114H
12-114SS Yoke, Pinion Yoke (Stainless Steel, CUSTOM)
**For use with stainless gear set.
114 Fits All Versions.
114H Fits All Versions.
$4.50 More Info
13-114LH Discontinued. Still In Stock. Limit 2 13-114LH
1181324
13-114LH Gear, Pinion Gear (Left Hand)

LIMITED QUANTITIES AVAILABLE

114 Fits All Versions.
$28.10 More Info
14-114 In Stock 14-114
1181395
14-114 Spring, Dog Spring $0.95 More Info
15-114 In Stock 15-114
1181437
15-114 Dog
114 Fits All Versions.
$1.40 More Info
16-114 In Stock 16-114
1181572
16-114 Screw, Lower Bridge Screw (uses 2) $0.95 More Info
17-114 In Stock 17-114
1181596
17-114 Screw, Upper Bridge Screw (uses 2)
114 Fits All Versions.
$0.95 More Info
18-114 In Stock 18-114
1181618
18-114 Spring, Coiled

MULTI USE See Description

114 Fits All Versions.
$0.95 More Info
18-114H In Stock 18-114H
1181619
18-114H Spring Disc $1.35 More Info
19-114 In Stock 19-114
1181664
19-114 Eccentric
114 Fits All Versions.
$4.60 More Info
20-114 In Stock 20-114
1181766
20-114 Spring, Eccentric Spring
114 Fits All Versions.
114H Fits All Versions.
$2.75 More Info
21-114 In Stock 21-114
1181845
21-114 Lever, Eccentric Lever
114 Fits All Versions.
114H Fits All Versions.
$4.15 More Info
23-60  In Stock 23-60
1181935
23-60 Screw, Large

MULTI USE See Description

$2.80 More Info
23-116 In Stock 23-116
1181946
23-116 Screw, Handle Screw $4.85 More Info
24-57 Discontinued. Still In Stock. Limit 10 24-57 24-57 Handle, Original Torpedo Knob
FITS: Type [C] Bridge/Sleeve

REPLACED BY PART NUMBER 24N-57

Direct product replacement: 24N-57 Handle, Newer Ergo Plastic Knob $35.10
$34.70 More Info
24N-57 In Stock 24N-57
1181979
24N-57 Handle, Newer Ergo Plastic Knob
FITS: Type [C] Bridge/Sleeve

REPLACES ORIGINAL NUMBER 24-57 ON SOME REELS

$35.10 More Info
24-114 Discontinued. Not Available 24-114 24-114 Handle
FITS: Type [C] Bridge/Sleeve

REPLACED BY PART NUMBER 24-57

114 Fits Frame Posts Version.
Direct product replacement: 24-57 Handle, Original Torpedo Knob $34.70
More Info
26-114 Discontinued. Not Available 26-114
1182118
26-114 Bearing, Friction Bearing, Handle Side

MULTI USE See Description

114 Fits All Versions.
More Info
27-114 Backordered. Still In Stock. Limit 5 27-114
1182195
27-114 Plate, Non-Handle Side Plate (Black)

LIMITED QUANTITIES AVAILABLE

114 Fits All Versions.
$24.85 More Info
29M-114 Discontinued. Not Available 29M-114 29M-114 Spool, Chrome on Bronze
114 Fits All Versions.
More Info
29L-114 In Stock 29L-114
1182511
29L-114 Spool, Aluminum (Black)
114 Fits All Versions.
$55.15 More Info
30-114 In Stock 30-114
1182621
30-114 Stand
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$15.90 More Info
30-114HL In Stock 30-114HL
1182622
30-114HL Stand (Thin)
114 Fits Full Frame Version.
114H Fits Half Frame and Full Frame Versions.
$6.90 More Info
31-11 In Stock 31-11
1182652
31-11 Screw, Stand, Handle Side (uses 3)
114H Fits Frame Posts and Half Frame Versions.
$0.95 More Info
32-20 In Stock 32-20
1182712
32-20 Stand Screw, Non-Handle Side (uses 3)
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$0.95 More Info
32-21  In Stock 32-21
1182713
32-21 Screw

MULTI USE See Description

Used on multiple models in different quantities.
$0.95 More Info
33-114 In Stock 33-114
1182755
33-114 Rod Clamp, Metal

MULTI USE See Description

Does not fit 30T reel.
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$5.95 More Info
33R-114  Backordered. Still In Stock. Limit 10 33R-114
1182779
33R-114 Ringed Rod Clamp, Metal (Made in China, Brushed Stainless)
Does not fit 30T reel.

See Description

Used on multiple models in different quantities.
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$13.30 More Info
33-340 Discontinued. Not Available 33-340
1182760
33-340 Clamp, Rod, Graphite
This part will no longer be manufactured by Penn; Limited Quantities Available.
114 Fits All Versions.
114H Fits All Versions.
Direct product replacement: 33-114H2 Clamp, Rod Clamp, Graphite with ring $6.10
More Info
33C-340 Discontinued. Not Available 33C-340
1191612
33C-340 Clamp, Rod, KIT: Graphite Clamp with Studs, Nuts and Wrench
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
33-340SP Kit, Clamp, Rod Clamp (Thick) (Graphite) (Black) (7pc Kit) $11.05
More Info
33C-SQL50LW Backordered. Still In Stock 33C-SQL50LW
1308829
33C-SQL50LW Clamp, Rod, KIT: Ringed Graphite Clamp with Studs, Nuts and Wrench
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$18.15 More Info
33-340SP In Stock 33-340SP
1180383
33-340SP Kit, Clamp, Rod Clamp (Thick) (Graphite) (Black) (7pc Kit)
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
33C-SQL50LW Clamp, Rod, KIT: Ringed Graphite Clamp with Studs, Nuts and Wrench $18.15
$11.05 More Info
34-10KG In Stock 34-10KG
1191620
34-10KG Screw, Clamp Screw (uses 2)

114 Fits 2nd Generation Half Frame with drag washers accessible on the outside of the reel.
$2.40 More Info
34-45 In Stock 34-45
1182788
34-45 Screw, Rod Clamp Screw (Shorter for Thick Clamps) ONLY (uses 2)

This is just the stud

114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$1.10 More Info
34-975 In Stock 34-975
1182839
34-975 Screw, Rod Clamp Screw ONLY (uses 2)
114H Fits Half Frame Version.
$2.10 More Info
34-114HLW In Stock 34-114HLW
1182804
34-114HLW Screw, Rod Clamp Screw ONLY (uses 2)
MEASURE your studs, click for more details
114 Fits Full Frame Version.
114H Fits Full Frame Version.
$3.30 More Info
34C-45 In Stock 34C-45
1182862
34C-45 Screw With Nuts, for Thick Style Rod Clamp (uses 2)
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$2.25 More Info
35-114 In Stock 35-114
1182915
35-114 Tongue, Click Tongue

MULTI USE See Description

$1.40 More Info
36-114H In Stock 36-114H
1182991
36-114H Button, Click Button

REPLACES PART NUMBER 36-114

$1.85 More Info
37-114 In Stock 37-114
1183068
37-114 Post, Frame Post

MULTI USE See Description

$5.55 More Info
37M-114 Discontinued. Still In Stock 37M-114
1191722
37M-114 Post, for Half Frame, Thin
This part will no longer be manufactured by Penn; Limited Quantities Available.
$8.20 More Info
38-114 Discontinued. Still In Stock. Limit 5 38-114
1183146
38-114 Screw, Frame, Handle Side (uses 4)

114 Fits Both Half Frame Versions.
Direct product replacement: 39-13 Screw, Post Screw $0.95
$1.00 More Info
39-12 In Stock 39-12
1183184
39-12 Screw
Used on multiple models in different quantities.
$0.95 More Info
39-13 In Stock 39-13
1183185
39-13 Screw, Post Screw $0.95 More Info
39-114 In Stock 39-114
1183201
39-114 Screw, Frame, Non-Handle Side

$0.95 More Info
40-114 Discontinued. Still In Stock. Limit 5 40-114
1183272
40-114 Bearing, Non-Handle Side
114 Fits All Versions.
$12.00 More Info
41-114 In Stock 41-114
1183330
41-114 Spring, Non-Handle Side Bearing Spring

114 Fits Both Half Frame Versions.
$2.10 More Info
50-114HF In Stock 50-114HF
1183755
50-114HF Cover, Frame Post Cover
114H Fits Half Frame Version.
$1.00 More Info
54-114 In Stock 54-114
1183857
54-114 Lug, Harness Lug, Thin (uses 2)

MULTI USE See Description

Used on multiple models in different quantities.
$1.95 More Info
62-114 In Stock 62-114
1184024
62-114 Spring, Click Spring $5.25 More Info
63-209 In Stock 63-209
1184048
63-209 Screw (for Metal Click Spring)

MULTI USE See Description

113H Fits Frame Posts with a clicker and Half Frame Versions.
$0.95 More Info
69B-600 1184129 In Stock 69B-600 1184129
DSS-VP2041
69B-600 | DSS-VP2041 Ring, Retaining Ring (E-clip)
Used on multiple models in different quantities.
$1.10 More Info
86-114L  In Stock 86-114L
1184254
86-114L Washer, Drag, Keyed Metal Drag Washer
114 Fits All Versions.
$1.00 More Info
98-114LH In Stock 98-114LH
1184335
98-114LH Sleeve, Gear Sleeve (comes with pin) (Brass)(Left Hand)

114 Fits All Versions.
$20.50 More Info
98-114AT-LH Backordered. Still In Stock. Limit 1 98-114AT-LH 98-114AT-LH Sleeve, Left Hand Gear Sleeve (comes with pin) (Stainless) (Optional)

MULTI USE See Description

$36.00 More Info
102-114 In Stock 102-114
1192231
102-114 Pin, for gear sleeve, Pin ONLY $0.95 More Info
110-60 In Stock 110-60
1184437
110-60 Screw, Handle Lock Screw

REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS

$0.95 More Info
118-80 In Stock 118-80
1184512
118-80 Screw

MULTI USE See Description
Used on multiple models in different quantities.
$0.95 More Info
136-114 In Stock 136-114
1184641
136-114 Washer, Pressure Plate Washer

114 Fits 2nd Generation Half Frame and Full Frame Versions.
$4.15 More Info
140-114 Discontinued. Still In Stock. Limit 2 140-114
1184643
140-114 Washer, Felt Washer
114 Fits 2nd Generation Half Frame and Full Frame Versions.
$2.00 More Info
149-45 In Stock 149-45
1184702
149-45 Nut, Clamp, Long, for Thick Clamps (uses 2)
Used with the graphite clamps 33-114H2, 33-340, 33N-113 and the iron alloy clamp 33i-113
$1.10 More Info
149-200 In Stock 149-200
1184706
149-200 Nut, Clamp Hex Nut (uses 2) $0.95 More Info
183-114HF Discontinued. Not Available 183-114HF
1184900
183-114HF Frame, Half, Graphite

114 Fits Both Half Frame Versions.
More Info
183-114TX Discontinued. Not Available 183-114TX 183-114TX Frame, Full, Aluminum

114 Fits Full Frame Version.
Workaround product replacement: 183-114HT Frame, Full, Aluminum "114H" $0.00
More Info
168-115 In Stock 168-115
1184804
168-115 Wrench
FITS 23-50S, 23-114, 23M-114, 23-116, 23-220, 23-FTH20LW, 23-16S, 23-60 knurled nuts
$0.95 More Info
168-TANI In Stock 168-TANI 168-TANI Heavy Duty Penn Handle Nut Wrench by Alan Tani
Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts
$15.00 More Info
168-60 In Stock 168-60
1184802
168-60 Wrench
Fits 23-60, 23-16S knurled nuts (See details for list of reels)
$0.95 More Info
UU-7C-114 In Stock UU-7C-114 UU-PENN114 Drag Stack 7+1 (CUSTOM)

114 Fits All Versions.
$35.00 More Info
Trusted SSL Certificate
