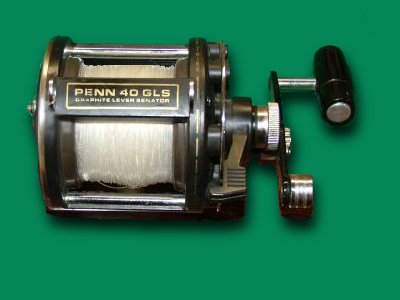

Penn 40GLS GLS Series Reel

View / Print Schematic Request a Schematic View / Print Owners Manual

Model Specs:

More Info
  • One piece graphite frame, strong graphite side plates.
  • Four solid stainless steel ball bearings.
  • Stainless steel main and pinion gears.
  • HT-100 multi-disc star drag system.
  • Sturdy double dog anti-reverse system.
  • Special lightweight spool design on 25GLS for easier casting.
  • Heavy duty replaceable clicker.
Mono Cap
(yds/lb)		 Braid Cap
(yds/lb)		 Bearings Gear Ratio
4
Availability SKU Name Our Price
REEL DISCONTINUED BY PENN   REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

000P21-245SP Discontinued. Not Available 000P21-245SP
000P21-245SP 		000P21-245SP Cam Lever Conversion Kit
For 40GLS and 45GLS reels
More Info
000P40-45SP Backordered. Not Available 000P40-45SP 000P40-45SP Gear Conversion Kit More Info
1-40 Discontinued. Not Available 1-40
001-1-40 		1-40 Right Side Plate Assembly More Info
2-40 Discontinued. Still In Stock. Limit 5 2-40
002-1180593 		2-40 Ring, Quadrant Ring $8.30 More Info
2-40LH Discontinued. Still In Stock. Limit 1 2-40LH
002-1180594 		2-40LH Ring, Quadrant Ring (Left Hand)

LIMITED QUANTITIES AVAILABLE
$7.95 More Info
3-40 In Stock 3-40
003-1180677 		3-40 Bridge, Dog Bridge $2.05 More Info
4-40 In Stock 4-40
004-1180753 		4-40 Washer, Gear Stud Washer (Teflon) $1.15 More Info
5-40 Discontinued. Not Available 5-40
005-1207786 		5-40 Gear, Main Gear

REPLACED BY CONVERSION KIT NUMBER 000P40-45SP

More Info
7-40 In Stock 7-40
007-1181004 		7-40 Washer, Drag, Metal Drag Washer $25.70 More Info
13-40 Discontinued. Not Available 13-40
013-13-40 		13-40 Gear, Pinion Gear More Info
14-40 In Stock 14-40
014-1181389 		14-40 Spring

MULTI USE See Description
Used on multiple models in different quantities.
$1.15 More Info
15-40 In Stock 15-40
015-1181421 		15-40 Dog $1.95 More Info
16-9 In Stock 16-9
016-1181564☀ 		16-9 Screw, Long, 5/40x9/16 thread (uses 2)
Used on multiple models in different quantities.
$1.15 More Info
18-40 In Stock 18-40
018-1181612☀ 		18-40 Spring, Clutch Disc Spring (uses 4) $1.20 More Info
20-40 In Stock 20-40
020-1181755 		20-40 Washer, Thrust Washer $1.15 More Info
21-40 Discontinued. Not Available 21-40
021-1208126 		21-40 Lever, Cam Lever (Old) More Info
21-245 Discontinued. Still In Stock. Limit 5 21-245
021-1181858☀ 		21-245 Lever, Cam Lever (New)

REPLACES ORIGINAL PART NUMBER 21-40

This part will no longer be manufactured by Penn; Limited Quantities Available.
$9.85 More Info
23-6CH Backordered. Still In Stock. Limit 5 23-6CH
023-1181930☀ 		23-6CH Screw, Gear Mounting Screw $2.55 More Info
23-114 In Stock 23-114
023-1181945☀ 		23-114 Screw, Handle Screw, Chrome Fin. (w/ OILER)

MULTI USE See Description
113H Fits All Versions.
$5.00 More Info
23M-114 Discontinued. Still In Stock. Limit 5 23M-114
023M-1181961☀ 		23M-114 Screw, Handle Screw, Matte Fin. with Oiler

MULTI USE See Description
113H Fits All Versions.
$8.95 More Info
24-40 Discontinued. Not Available 24-40
024-40 		24-40 Handle, Black
FITS: Type [B] Bridge/Sleeve

REPLACED BY 24B-40P
Direct product replacement: 24B-40P Handle, Power, Chrome $0.00
More Info
24-40P Discontinued. Not Available 24-40P
024-40P 		24-40P Handle, Power, Black
FITS: Type [B] Bridge/Sleeve

REPLACED BY 24B-40P
Direct product replacement: 24B-40P Handle, Power, Chrome $0.00
More Info
24B-40P Discontinued. Not Available 24B-40P
024B-1182087 		24B-40P Handle, Power, Chrome
FITS: Type [B] Bridge/Sleeve

REPLACES ORIGINAL PART NUMBER 24-40
More Info
26-40 In Stock 26-40
026-1182112☀ 		26-40 Bearing, Ball Bearing $15.90 More Info
28-40 In Stock 28-40
028-1182360 		28-40 Ring, Non-Handle Side Ring $9.50 More Info
29L-40 In Stock 29L-40
029L-1182488 		29L-40 Spool, Aluminum (Black) $64.20 More Info
32-17 In Stock 32-17
032-1182710☀ 		32-17 Screw

REPLACES ORIGINAL PART NUMBER 32-110 ON SOME REELS
Used on multiple models in different quantities.
$1.15 More Info
33-200 In Stock 33-200
033-1182759▲ 		33-200 Clamp, Rod Clamp (Classic Thin Style) (Metal) $5.25 More Info
33R-200 Backordered. Not Available 33R-200
033R-1182783 		33R-200 Clamp, Rod, Metal, Ringed (Classic Thin Style) (Optional) (Made in China, Brushed Stainless) More Info
33C-200 In Stock 33C-200
033C-1191611▭ 		33C-200 Rod Clamp KIT: (Classic Thin Style) Metal Clamp with Studs, Nuts, Wrench
113H Fits All Versions.
$15.25 More Info
33CR-200 Discontinued. Not Available 33CR-200
033CR-200 		33CR-200 Kit, Clamp, Rod Clamp with Ring (Classic Thin Style) (Brass) (Chrome) (8pc Kit with Wrench)
113H Fits both Frame Posts Versions.
More Info
33-113 Discontinued. Not Available 33-113
033-113 		33-113 Clamp, Rod Clamp (Thick) (Graphite) (Black)

REPLACED BY PART NUMBER 33N-113
More Info
33N-113 In Stock 33N-113
033N-1182754☘ 		33N-113 Clamp, Rod Clamp with Side Ring (Thick) (Graphite) (Black)

REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS
$5.35 More Info
33-16VS In Stock 33-16VS
033-1191592▲ 		33-16VS Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey)

REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS
$19.90 More Info
33-TRQ In Stock 33-TRQ
033-1290729▲ 		33-TRQ Clamp, Rod Clamp (Thick) (Aluminum) (Black) $1.50 More Info
33-TRQS In Stock 33-TRQS
033-1365544▲ 		33-TRQS Clamp, Rod Clamp (Thick) (Aluminum) (Silver) $8.50 More Info
34-200 In Stock 34-200
034-1182810▲ 		34-200 Screw, Clamp Screw (Longer for Thin Clamp) ONLY (uses 2)
This can be used as a sub for the 34-49 or 34-45 if wanting a LONGER stud screw
$2.30 More Info
34C-200 In Stock 34C-200
034C-1182875▲ 		34C-200 Screw with Nuts, f/Thin Style Metal Rod Clamp (uses 2) $4.60 More Info
35-40 Discontinued. Still In Stock. Limit 2 35-40
035-1182898 		35-40 Tongue, Click Tongue $2.80 More Info
36A-40 In Stock 36A-40
036A-1183024 		36A-40 Washer, Click Button Washer $1.15 More Info
36N-209 In Stock 36N-209
036N-1183048☀ 		36N-209 Button, Click Button $1.60 More Info
37-40 Discontinued. Not Available 37-40
037-1183055 		37-40 Post, Frame Post (uses 2) More Info
38-8 In Stock 38-8
038-1183135♦ 		38-8 Screw

MULTI USE See Description
$1.15 More Info
38-40 In Stock 38-40
038-1183137 		38-40 Screw, Handle Side Post Screw (uses 2) $1.60 More Info
39-9 In Stock 39-9
039-1183182♦ 		39-9 Screw

REPLACED BY PART NUMBER 38-110, 38-49 ON SOME REELS
Used on multiple models in different quantities.
$1.15 More Info
41-40 Discontinued. Not Available 41-40
041-1183324 		41-40 Spring

MULTI USE See Description
More Info
41-109 In Stock 41-109
041-1183329☀ 		41-109 Spring, Bearing Spring $1.70 More Info
50-50S Discontinued. Not Available 50-50S
050-50-50S 		50-50S Cover, Gear Stud Cover More Info
54-113 In Stock 54-113
054-1183856☀ 		54-113 Lug, Harness Lug (uses 2) $2.35 More Info
55-6 In Stock 55-6
055-1183872▲ 		55-6 Bearing, Ball Bearing

REPLACES ORIGINAL NUMBER 55-45 ON 45GLS
$14.90 More Info
60-40 In Stock 60-40
060-1183982 		60-40 Washer, Lever Backing Washer $1.50 More Info
62-40 In Stock 62-40
062-1184021 		62-40 Spring, Click Spring $5.00 More Info
63-349 In Stock 63-349
063-1184050☀ 		63-349 Screw (SEMS)

MULTI USE See Description
$1.70 More Info
63-500S In Stock 63-500S
063-1184052☀ 		63-500S Screw

MULTI USE See Description
Used on multiple models in different quantities.
$1.20 More Info
69B-50 In Stock 69B-50
069B-1184125☀ 		69B-50 Ring, Retaining Ring (E-Clip)
Used on multiple models in different quantities.
$1.15 More Info
69B-600 In Stock 69B-600
069B-1184129♦ 		69B-600 | DSS-VP2041 Ring, Retaining Ring (E-clip)
Used on multiple models in different quantities.
$1.35 More Info
71-40 In Stock 71-40
071-1184149 		71-40 Spindle Spool Assembly $18.90 More Info
81-40 In Stock 81-40
081-1184203▲ 		81-40 Ratchet, Click Ratchet $5.35 More Info
82-40 In Stock 82-40
082-1184222 		82-40 Washer, Teflon Washer

MULTI USE See Description
$1.15 More Info
83-40 In Stock 83-40
083-1184225 		83-40 Collar, Preset Collar (OLD STYLE) $7.65 More Info
83-245 Discontinued. Not Available 83-245
083-1184228 		83-245 Collar, Preset Collar (used with 245 cam lever) More Info
98-40 Discontinued. Not Available 98-40
098-1184325 		98-40 Ratchet, Main Gear Ratchet More Info
101-30 In Stock 101-30
101-1184403☀ 		101-30 Screw, Torx Head Screw
Used on multiple models in different quantities.
$1.15 More Info
110-50 In Stock 110-50
110-1184436☀ 		110-50 Screw
Used on multiple models in different quantities.
$1.15 More Info
110-60 In Stock 110-60
110-1184437♦ 		110-60 Screw, Handle Lock Screw

REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS
$1.15 More Info
117-40 Discontinued. Not Available 117-40
117-40 		117-40 Drive Plate Assembly

REPLACED BY PART NUMBER 000P40-45SP
Direct product replacement: 000P40-45SP Gear Conversion Kit $0.00
More Info
120-245 Discontinued. Still In Stock. Limit 5 120-245
120-1184524 		120-245 'O' ring (O-ring) f/245 Cam Lever (O-ring) $1.25 More Info
134-40 Discontinued. Still In Stock. Limit 1 134-40
134-1184614 		134-40 Stud, Gear Stud
This part will no longer be manufactured by Penn; Limited Quantities Available.
$11.60 More Info
141-40 Backordered. Still In Stock. Limit 1 141-40
141-1184653 		141-40 Cam Follower (OLD)

LIMITED QUANTITIES AVAILABLE
$4.05 More Info
141-245 In Stock 141-245
141-1184661 		141-245 Cam Follower $3.70 More Info
142-40 Discontinued. Not Available 142-40
142-1192335 		142-40 Knob, Preset Knob More Info
144-40 Discontinued. Still In Stock. Limit 1 144-40
144-1184683 		144-40 Knob, Preset Knob $12.15 More Info
152-200 In Stock 152-200
152-1184709☀ 		152-200 Wing Nut, f/Thin Metal Rod Clamp Only (uses 2) $1.15 More Info
156-40 Discontinued. Still In Stock. Limit 1 156-40
156-1184737 		156-40 Cover, Drag Cover $5.05 More Info
161-40 In Stock 161-40
161-1184787 		161-40 Button, Strike Button $3.00 More Info
162-50 In Stock 162-50
162-1184795☀ 		162-50 Spring
Used on multiple models in different quantities.
$1.15 More Info
183-40 Discontinued. Not Available 183-40
183-1208122 		183-40 Frame Assembly More Info
195-40 In Stock 195-40
195-1184955☀ 		195-40 Retaining "E" Ring
Used on multiple models in different quantities.
$1.35 More Info
237-340 Discontinued. Not Available 237-340
237-340 		237-340 Decal, Handle Side Plate Round "Penn Reels" & Ratio

LIMITED QUANTITIES AVAILABLE
More Info
264-40 Discontinued. Not Available 264-40
264-264-40 		264-40 Gasket More Info
168-115 In Stock 168-115
168-1184804☘ 		168-115 Wrench
FITS 23-50S, 23-114, 23M-114, 23-116, 23-220, 23-FTH20LW, 23-16S, 23-60 knurled nuts
$1.15 More Info
168-TANI In Stock 168-TANI
168-TANi▭ 		168-TANI Heavy Duty Penn Handle Nut Wrench by Alan Tani
Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts
$20.00 More Info
