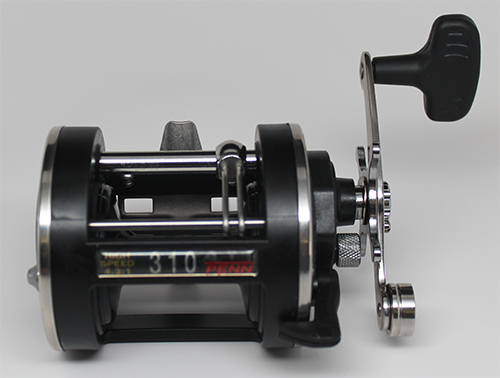

Model Specs:

More Info
  • Lightweight graphite frame.
  • Black-anodized spool.
  • Manganese-bronze main gear.
  • Stainless steel pinion.
  • Easy to operate star drag.
  • LD models have Lever Drag
Mono Cap
(yds/lb)
Braid Cap
(yds/lb)
Bearings Gear Ratio
325/15 2 BB 4.2:1
Availability SKU Name Our Price
REEL DISCONTINUED BY PENN   REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

310GT to 310GT2LC Line Counter Conversion Kit 310GT to 310GT2LC Line Counter Conversion Kit $135.25 More Info
310 Dog Spring Installation   310 Dog Spring Installation
1-310 In Stock 1-310
1180492
1-310 Plate, Handle Side Plate, Black $8.85 More Info
2-310 In Stock 2-310
1180636
2-310 Ring, Handle Side Ring $6.55 More Info
3B-310 In Stock 3B-310
1180744
3B-310 Bridge Assembly

REPLACES ORIGINAL PART NUMBER 3-310

$28.25 More Info
4-155 In Stock 4-155
1180772
4-155 Washer, Hard Fiber Spacer (Under Main Gear) $0.95 More Info
5-310 In Stock 5-310
1180866
5-310 Gear, Main Gear $19.75 More Info
6-60 In Stock 6-60
1180906
6-60 Washer, Drag Washer HT-100™
Used on multiple models in different quantities.
$1.00 More Info
6-140SD In Stock 6-140SD
CBT P#140
6-140SD Set, Drag Washers, CARBONTEX by SmoothDrag (Custom) $8.50 More Info
7C-310 In Stock 7C-310
1181048
7C-310 Washer, Drag, Metal Drag Washers (SET of 5) $5.80 More Info
8-60 In Stock 8-60
1181056
8-60 Washer, Black Tension Spring Washer (Belleville)

8-60 BLACK REPLACES ORIGINAL NUMBER 8-60 CHROME

Used on multiple models in different quantities.
Direct product replacement: 8-310GT2 Spring, Tension Spring, Chrome $1.10
$0.95 More Info
9-310 In Stock 9-310
1181157
9-310 Sleeve, Spacing Sleeve $1.85 More Info
10-310 In Stock 10-310
1181194
10-310 Star Drag Wheel $4.00 More Info
11-310 In Stock 11-310
1181241
11-310 Jack, Eccentric Jack (Brass) $1.40 More Info
12-9 In Stock 12-9
1181256
12-9 Yoke, Pinion Yoke (Brass) $1.10 More Info
13-310 Backordered. Still In Stock. Limit 5 13-310
1181343
13-310 Gear, Pinion Gear $19.75 More Info
14-10 Discontinued. Still In Stock. Limit 1 14-10
1181386
14-10 Spring, Dog Spring $2.10 More Info
15-310 In Stock 15-310
1181458
15-310 Dog $1.10 More Info
16-310 In Stock 16-310
1181576
16-310 Screw, Bridge, Lower Bridge Screw (uses 2) $0.95 More Info
17-310 In Stock 17-310
1181598
17-310 Screw, Bridge, Upper Bridge Screw (uses 2) $0.95 More Info
18-9 In Stock 18-9
1181607
18-9 Spring, Clutch Spring (uses 2) $0.95 More Info
19-310 In Stock 19-310
1181681
19-310 Cam, Eccentric Cam $3.90 More Info
20-109 In Stock 20-109
1181764
20-109 Spring, Eccentric Spring $0.95 More Info
21-310 In Stock 21-310
1181862
21-310 Lever, Eccentric Lever (Black Plastic) $3.60 More Info
21A-310 In Stock 21A-310
1181890
21A-310 Button, Drive, Direct Drive Button $1.40 More Info
21B-310 In Stock 21B-310
1181902
21B-310 Spring, Button, Direct Drive Button Spring $1.40 More Info
21C-310 In Stock 21C-310
1181905
21C-310 Pin, Button Pin $1.10 More Info
22-310 In Stock 22-310
1181915
22-310 Screw, Eccentric Screw (Sems) $1.10 More Info
23-60  In Stock 23-60
1181935
23-60 Screw, Large

MULTI USE See Description

$2.80 More Info
24-310 Discontinued. Not Available 24-310 24-310 Handle, Torpedo
FITS: Type [A] Bridge/Sleeve

REPLACED BY PART NUMBER 24S-310

More Info
24N-310 Discontinued. Not Available 24N-310 24N-310 Handle, Chromed Blade, Flat Rubberized Ergo Knob
FITS: Type [A] Bridge/Sleeve

REPLACED BY PART NUMBER 24S-310

More Info
24SN-310 In Stock 24SN-310
1195516
24SN-310 Handle, Brushed Stainless, Football Rubberized Knob
FITS: Type [A] Bridge/Sleeve

REPLACES ORIGINAL PART NUMBER 24-155, 24N-160, 24N-310, 24-310, 24S-310 ON SOME REELS

$16.85 More Info
24S-310 In Stock 24S-310
1191342
24S-310 Handle, Brushed Stainless, Flat Rubberized Ergo Knob
FITS: Type [A] Bridge/Sleeve

REPLACES ORIGINAL PART NUMBER 24-155, 24N-160, 24N-310, 24-310 ON SOME REELS

$17.80 More Info
24-500-1-PC In Stock 24-500-1-PC
PC-JM-HDL
24-500-1-PC Offset Handle Blank ONLY (includes screw)
For PENN 112H, JigMaster 500/501/505/506 (Other PENN Reels)
$12.00 More Info
26B-310 Discontinued. Still In Stock. Limit 10 26B-310
1182136
26B-310 Cap, Spool Tension Control Cap (CAP ONLY) $2.80 More Info
26B-310SP  Backordered. Still In Stock. Limit 10 26B-310SP 26B-310SP Kit, Spool Tension Control Cap Kit

Four Piece Cap Kit Assembly
$5.65 More Info
27-310 In Stock 27-310
1182227
27-310 Plate, Non-Handle Side $8.00 More Info
28-310 In Stock 28-310
1182381
28-310 Ring, Non-Handle Side Ring $7.15 More Info
29L-310 Discontinued. Still In Stock. Limit 1 29L-310 29L-310 Spool, Aluminum (Black) $44.65 More Info
29L-310N In Stock 29L-310N
1182535
29L-310N Spool, Aluminum (Black) (With Non-Handle Side Bearing)

REPLACES ORIGINAL NUMBER 29L-310

$41.35 More Info
32-310 In Stock 32-310
1182722
32-310 Screw
Used on multiple models in different quantities.
$0.95 More Info
33-16VS In Stock 33-16VS
1191592
33-16VS Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey)

REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS

$16.55 More Info
33-113 Discontinued. Not Available 33-113 33-113 Clamp, Rod Clamp (Thick) (Graphite) (Black)

REPLACED BY PART NUMBER 33N-113

More Info
33N-113 In Stock 33N-113
1182754
33N-113 Clamp, Rod Clamp with Side Ring (Thick) (Graphite) (Black)

REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS

$4.45 More Info
33-TRQS In Stock 33-TRQS
1365544
33-TRQS Clamp, Rod Clamp (Thick) (Aluminum) (Silver) $7.10 More Info
33-TRQ Backordered. Still In Stock. Limit 5 33-TRQ
1290729
33-TRQ Clamp, Rod Clamp (Thick) (Aluminum) (Black) $1.50 More Info
33-200 Backordered. Still In Stock 33-200
1182759
33-200 Clamp, Rod Clamp (Classic Thin Style) (Metal) $5.20 More Info
33R-200 Discontinued. Not Available 33R-200
1182783
33R-200 Clamp, Rod, Metal, Ringed (Classic Thin Style) (Optional) (Made in China, Brushed Stainless) More Info
33-113SP Discontinued. Not Available 33-113SP 33-113SP Kit, Clamp, Rod Clamp (Thick) (Graphite) (Black) (7pc Kit) More Info
33C-113 In Stock 33C-113
1182773
33C-113 Rod Clamp KIT: (Thick) Graphite Clamp with Side Ring, Studs, Nuts, Wrench $10.40 More Info
33N-113SP In Stock 33N-113SP
1180382
33N-113SP Clamp, Rod, KIT: (Thick) Graphite Clamp with Studs and Nuts $11.05 More Info
33i-113SP In Stock 33i-113SP 33i-113SP Kit Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey) (7pc Kit) $24.15 More Info
34-45 In Stock 34-45
1182788
34-45 Screw, Rod Clamp Screw (Shorter for Thick Clamps) ONLY (uses 2)

This is just the stud

114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$1.10 More Info
34C-45 Backordered. Still In Stock. Limit 10 34C-45
1182862
34C-45 Screw With Nuts, for Thick Style Rod Clamp (uses 2)
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$2.50 More Info
35-310N  In Stock 35-310N
1182922
35-310N Tongue, Click Tongue

NEW System on 330GT and 330LD Reels
$1.70 More Info
36-310 In Stock 36-310
1183000
36-310 Button, Click Button $1.40 More Info
36-700 In Stock 36-700
1183014
36-700 Nut, Locking Nut

REPLACES ORIGINAL NUMBER 36-710 ON SOME REELS

$1.70 More Info
36A-40 In Stock 36A-40
1183024
36A-40 Washer, Click Button Washer $0.95 More Info
40-310 In Stock 40-310
1183278
40-310 Bearing, Non-Handle Side $22.65 More Info
40C-310 In Stock 40C-310
1183308
40C-310 Washer, Thrust, Metal Thrust Washer $0.95 More Info
40C-320 In Stock 40C-320
1183310
40C-320 Washer, Thrust, Metal $0.95 More Info
40D-320 In Stock 40D-320
1183317
40D-320 Washer, Thrust, Rubber Thrust Washer $0.95 More Info
41-330 In Stock 41-330
1183336
41-330 Spring, Thrust, Handle Side Thrust Spring

REPLACES ORIGINAL NUMBER 41-320 ON SOME REELS

$0.95 More Info
42-310 In Stock 42-310
1183349
42-310 Worm Assembly $13.25 More Info
43-330 In Stock 43-330
1183384
43-330 Bearing, Worm, Handle Side

REPLACES ORIGINAL PART NUMBER 43-320 ON SOME REELS

$1.40 More Info
44-330 In Stock 44-330
1183446
44-330 Bearing, Worm, Non-Handle Side

REPLACES ORIGINAL PART NUMBER 44-320 ON SOME REELS

MULTI USE See Description

$1.30 More Info
46-310 In Stock 46-310
1183560
46-310 Line Guide Carriage $11.55 More Info
47-320 Discontinued. Not Available 47-320 47-320 Pawl, Line Guide Pawl (OLDER for black plastic guide)

REPLACED BY PART NUMBER 47-975

Direct product replacement: 47-975 Pawl, Line Guide Pawl $2.10
More Info
47-975 In Stock 47-975
1183677
47-975 Pawl, Line Guide Pawl

REPLACES ORIGINAL PART NUMBER 47-320 ON SOME REELS

$2.10 More Info
48-330N In Stock 48-330N
1183704
48-330N Screw, Cover, Pawl Cover Screw Cap $2.10 More Info
50N-310 Discontinued. Not Available 50N-310
1183779
50N-310 Shield, Worm Shield
Direct product replacement: 50T-310 Shield, Worm Shield $2.95
More Info
58-310 In Stock 58-310
1183952
58-310 Post, Line Guide Post $1.90 More Info
60-320 In Stock 60-320
1183991
60-320 Washer, for Idler Gear and Worm Bearing $1.20 More Info
62A-310 In Stock 62A-310
1184033
62A-310 Spring, Click Spring (uses 2)

NEW System on 330GT and 330LD Reels
$0.95 More Info
62B-310 Discontinued. Still In Stock. Limit 1 62B-310
1184036
62B-310 Pin, Click Pin (uses 2)

REPLACED BY PART NUMBER 62S-310

Direct product replacement: 62S-310 Pin, Click Pin (uses 2) $1.10
$1.15 More Info
62C-310 In Stock 62C-310
1184040
62C-310 Cover, Click Spring Cover $0.95 More Info
62S-310 In Stock 62S-310
1192075
62S-310 Pin, Click Pin (uses 2)

NEW System on 330GT and 330LD Reels

REPLACES ORIGINAL NUMBER 62B-310 ON SOME REELS

$1.10 More Info
63-500S In Stock 63-500S
1184052
63-500S Screw

MULTI USE See Description

Used on multiple models in different quantities.
$1.00 More Info
64-310 In Stock 64-310
1184064
64-310 Gear, Idler Gear $3.05 More Info
64C-310 In Stock 64C-310
1184080
64C-310 Shaft, Worm Gear Idler Shaft $1.10 More Info
66-310 In Stock 66-310
1184092
66-310 Gear, Spool Gear $1.70 More Info
67-9 In Stock 67-9
1184102
67-9 Ring, Lock Ring $0.95 More Info
69B-600 1184129 In Stock 69B-600 1184129
DSS-VP2041
69B-600 | DSS-VP2041 Ring, Retaining Ring (E-clip)
Used on multiple models in different quantities.
$1.10 More Info
98-310 In Stock 98-310
1184348
98-310 Sleeve, Gear Sleeve (comes with pin) (Brass) $15.75 More Info
110-60 In Stock 110-60
1184437
110-60 Screw, Handle Lock Screw

REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS

$0.95 More Info
149-45 In Stock 149-45
1184702
149-45 Nut, Clamp, Long, for Thick Clamps (uses 2)
Used with the graphite clamps 33-114H2, 33-340, 33N-113 and the iron alloy clamp 33i-113
$1.20 More Info
149-200 In Stock 149-200
1184706
149-200 Nut, Clamp Hex Nut (uses 2) $0.95 More Info
152-200 In Stock 152-200
1184709
152-200 Wing Nut, f/Thin Metal Rod Clamp Only (uses 2) $0.95 More Info
183-310 In Stock 183-310
1184909
183-310 Frame Assembly $33.10 More Info
225-310  Discontinued. Still In Stock. Limit 1 225-310 225-310 Decal, Spacer Bar (310GTi)

LIMITED QUANTITIES AVAILABLE

$4.50 More Info
238-310  Discontinued. Not Available 238-310 238-310 Decal, Side Plate "310GTi" More Info
168-9 Discontinued. Still In Stock. Limit 1 168-9
1184800
168-9 Wrench
Fits 23-60 knurled nut (see details for list of reels)
partimage

REPLACED BY PART NUMBER 168-60 or 168-TANI

Direct product replacement: 168-60 Wrench $0.95
$2.00 More Info
168-60 In Stock 168-60
1184802
168-60 Wrench
Fits 23-60, 23-16S knurled nuts (See details for list of reels)
$0.95 More Info
PEN XXSMRC In Stock PEN XXSMRC
1178860
XXSMRC Cover, Reel Cover, Conventional, Size Extra-Extra Small

FITS REELS:
9M, 109M, 209M
110, 111, 112, 112H, 112H2
140L, 145, 146L, 220
310GT, 310GTi, 310GT2, 320GT, 320GTi, 320GT2, 320LD
500L, 501, 525, 525GS, 525MAG, 535, 535GS, 545, 545GS, 555, 555GS
965, 975, 975CS, 975CSLD, 975SLD
DFN20LW, DFN25LW, DFN30
FTH12, FTH15, FTH15LD2, FTH15LD, FTH15LW, FTH20LW, FTH25N, FTH25NLD, FTH25NLD2, FTH25LW, FTH30, FTH30LD, FTH30LD2, FTH30LD2LH, FTH25NLD2, FTH30LD, FTH40
SQL12, SQL15, SQL15LW, SQL20LW, SQL25N, SQL30, SQL30LD, SQL30LW, SQL40, SQL40LD
TRQ15LD2, TRQ25NLD2, TRQ30LD2, TRQ12, TRQ15, TRQ25, TRQ30, TRQ40, TRQ100, TRQ100LD, TRQ200
WAR15LW, WAR15LWLH, WAR20LW, WAR20LWLH, WAR30LW
WAR20N, WAR30

$14.99 More Info
Trusted SSL Certificate
