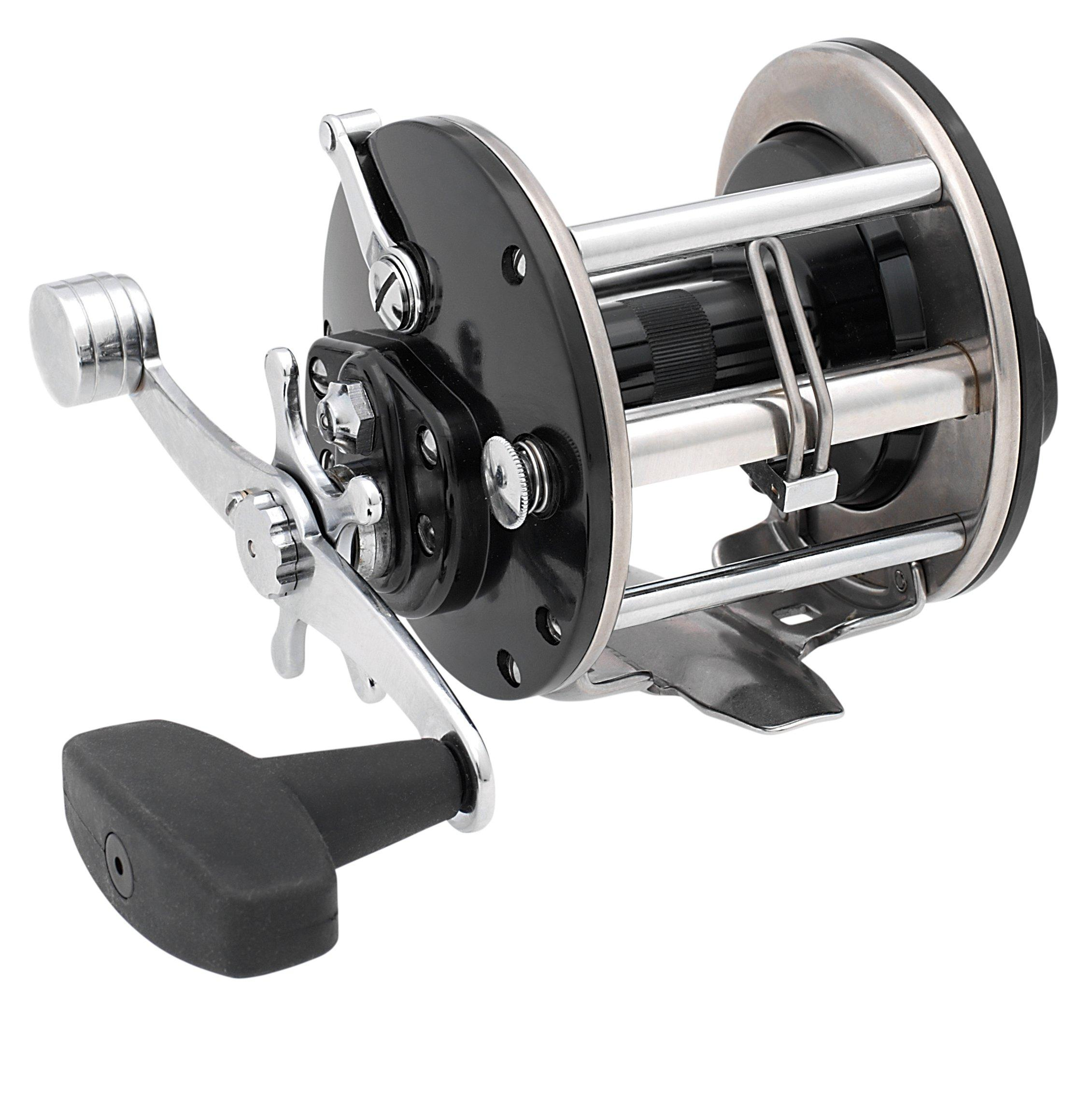

Penn 309M Super Peer Reel

View / Print Schematic Request a Schematic View / Print Owners Manual Buy Reel Buy Reel Cover

Model Specs:

More Info
  • Precision, stainless-steel pinion gear.
  • Alloy main gear.
  • Sealed oil ports for quick, easy lubrication.
  • Side plates reinforced with metal rings.
  • Chrome plated brass exposed metal components for corrosion resistance.
  • HT-100 multi-disc star drag system.
  • Loud, durable, easy-to-service clicker.
  • Light weight with black anodized spool.
  • Soft grip counterbalanced handle. (Early models had torpedo knobs). 109 has a dual knob handle.
Mono Cap
(yds/lb)		 Max Drag Gear Ratio Line Retrieve
475/30 15 2.8:1 20
Availability SKU Name Our Price
1-309CHINA In Stock 1-309CHINA
001-1180491 		1-309 Plate, Handle Side Plate, Black (Made in China) $13.75 More Info
1-309USA Discontinued. Not Available 1-309USA
001-1-309USA 		1-309USA Plate, Handle Side, Black (Made In USA) More Info
2-309 In Stock 2-309
002-1180635 		2-309 Ring, Handle Side Ring $6.30 More Info
3-309 In Stock 3-309
003-1180725 		3-309 Bridge With Sleeve $11.10 More Info
4-60 In Stock 4-60
004-1180755♦ 		4-60 Washer, Hard Fiber Spacer (Under Main Gear) $1.15 More Info
5-500 In Stock 5-500
005-1180871▲ 		5-500 Gear, Main Gear $10.95 More Info
UU-PENN500 In Stock UU-PENN500
UU-PENN500▲ 		UU-PENN500 5+1 Drag Washer System (Custom)
Fits: 112H, 210M, 500, 500S, 501, 505HS, 506HS, 309M, Newell 200/300/400Series, ProGear 255/251
$34.65 More Info
6-309SP In Stock 6-309SP
006SP-1180394◉▭ 		6-309SP Kit, Drag Washers HT-100™ with Metals $8.80 More Info
6-309 In Stock 6-309
006-1180917◉ 		6-309 Washer, Drag, HT-100™

MULTI USE See Description
Used on multiple models in different quantities.
$1.50 More Info
6-500SD In Stock 6-500SD
6-500SD▲ 		6-500SD Set, Drag Washers, CARBONTEX by SmoothDrag (Custom) $10.00 More Info
7-500 In Stock 7-500
007-1181018 		7-500 Washer, Drag, Metal Drag Washer, Earred $1.35 More Info
7C-500 In Stock 7C-500
007C-1181051▲ 		7C-500 Washer, Drag, Metal Drag Washers (SET of 3)
See design change notes
$6.00 More Info
7C-500SD In Stock 7C-500SD
007C-500SD▲ 		7C-500SD Set, Metal Drag Washers by SmoothDrag (Custom) $10.00 More Info
8-60B In Stock 8-60B
008-60B♦ 		8-60B Washer, Black Tension Spring Washer (Belleville)
Used on multiple models in different quantities.
$1.35 More Info
9-60 In Stock 9-60
9-60 		9-60 Sleeve, Spacing Sleeve - (optional variations)
Variations allow for more/less play in handle - see description.
$2.85 More Info
10-49 In Stock 10-49
010-1181174▲ 		10-49 Star Drag Wheel $8.00 More Info
11-60-SS In Stock 11-60-SS
011-1181227 		11-60-SS Jack, Eccentric Jack $2.55 More Info
12-60 In Stock 12-60
012-1181257☀ 		12-60 Yoke, Pinion Yoke (Brass) $1.35 More Info
13-60 Discontinued. Still In Stock. Limit 5 13-60
013-60-STEEL☀ 		13-60 Gear, Pinion Gear (Steel) $9.95 More Info
13-85 In Stock 13-85
013-1181310☀ 		13-85 Gear, Pinion Gear (BRASS) $8.30 More Info
14-99 In Stock 14-99
014-1181393♦ 		14-99 Spring
Used on multiple models in different quantities.
$1.15 More Info
15-309 In Stock 15-309
015-1181457☀ 		15-309 Dog $1.35 More Info
16-60CH In Stock 16-60CH
016-1181565☀ 		16-60CH Screw

REPLACES ORIGINAL PART NUMBER 16-60 ON SOME REELS
Used on multiple models in different quantities.
$1.15 More Info
17-60CH In Stock 17-60CH
017-1181594☀ 		17-60CH Screw, Bridge, Upper Bridge Screw

REPLACES ORIGINAL PART NUMBER 17-60
Used on multiple models in different quantities.
$1.15 More Info
18-60 In Stock 18-60
018-1181615☀ 		18-60 Spring, Clutch Spring
Used on multiple models in different quantities.
$1.15 More Info
19-309 In Stock 19-309
019-1181680 		19-309 Eccentric $2.90 More Info
20-60L Discontinued. Not Available 20-60L
020-1181756 		20-60L Spring, Eccentric Spring

REPLACED BY PART NUMBER 20-112H2
Direct product replacement: 20-112H2 Spring, Eccentric Spring $1.15
More Info
20-112H2 In Stock 20-112H2
020-1288916♦ 		20-112H2 Spring, Eccentric Spring

REPLACES ORIGINAL NUMBER 20-60L ON SOME REELS
$1.15 More Info
21-309 In Stock 21-309
021-1181861☀ 		21-309 Lever, Eccentric Lever $2.70 More Info
22-60 Discontinued. Not Available 22-60
022-22-60 		22-60 Screw, Eccentric Screw More Info
22-60CH In Stock 22-60CH
022-1181908☀ 		22-60CH Screw, Eccentric Screw with washer (Sems) (Silver)

REPLACES ORIGINAL NUMBER 22-60, 22-113HN ON SOME REELS
114H Fits Half Frame Version.
$2.30 More Info
23-60 In Stock 23-60
023-1181935☀ 		23-60 Screw, Large

MULTI USE See Description
$4.10 More Info
24-66 Backordered. Still In Stock. Limit 10 24-66
024-1181980▭ 		24-66 Handle, Flat Rubberized Knob
FITS: Type [A] Bridge/Sleeve
$23.20 More Info
24-500-1-PC Backordered. Still In Stock 24-500-1-PC
024-PC-JM-HDL 		24-500-1-PC Offset Handle Blank ONLY (includes screw)
For PENN 112H, JigMaster 500/501/505/506 (Other PENN Reels)
$13.00 More Info
26-60 In Stock 26-60
026-1182114☀ 		26-60 Bearing, Handle Side Bearing $7.95 More Info
27-309-CHINA In Stock 27-309-CHINA
027-1182226 		27-309 Plate, Non-Handle Side, Black (Made In China) $14.90 More Info
27-309-USA Discontinued. Not Available 27-309-USA
027-309USA 		27-309USA Plate, Non-Handle Side, Black (Made In USA) More Info
28-309 In Stock 28-309
028-1182380 		28-309 Ring, Non-Handle Side Ring $11.10 More Info
29L-309 In Stock 29L-309
029L-1182533 		29L-309 Spool, Aluminum (Black) $28.15 More Info
29M-309 Discontinued. Not Available 29M-309
029M-29M-309 		29M-309 Spool, Chrome on Bronze More Info
30-66 In Stock 30-66
030-1182609 		30-66 Stand (Stainless Matte Finish) $11.95 More Info
31-2.5FR In Stock 31-2.5FR
031-1182662☀ 		31-2.5FR Screw

MULTI USE See Description
$1.15 More Info
32-16CH In Stock 32-16CH
032-1182709☀ 		32-16CH Screw

MULTI USE See Description

REPLACES ORIGINAL PART NUMBER 32-16 and 31-285 ON SOME REELS
$1.15 More Info
33-16VS In Stock 33-16VS
033-1191592▲ 		33-16VS Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey)

REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS
$19.90 More Info
33-113 Discontinued. Not Available 33-113
033-113 		33-113 Clamp, Rod Clamp (Thick) (Graphite) (Black)

REPLACED BY PART NUMBER 33N-113
More Info
33N-113 In Stock 33N-113
033N-1182754☘ 		33N-113 Clamp, Rod Clamp with Side Ring (Thick) (Graphite) (Black)

REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS
$5.35 More Info
33-TRQ In Stock 33-TRQ
033-1290729▲ 		33-TRQ Clamp, Rod Clamp (Thick) (Aluminum) (Black) $1.50 More Info
33-TRQS In Stock 33-TRQS
033-1365544▲ 		33-TRQS Clamp, Rod Clamp (Thick) (Aluminum) (Silver) $8.50 More Info
33-200 In Stock 33-200
033-1182759▲ 		33-200 Clamp, Rod Clamp (Classic Thin Style) (Metal) $5.25 More Info
33R-200 Backordered. Not Available 33R-200
033R-1182783 		33R-200 Clamp, Rod, Metal, Ringed (Classic Thin Style) (Optional) (Made in China, Brushed Stainless) More Info
33-113SP Discontinued. Not Available 33-113SP
033-33-113SP 		33-113SP Kit, Clamp, Rod Clamp (Thick) (Graphite) (Black) (7pc Kit) More Info
33C-113 In Stock 33C-113
033C-1182773▭ 		33C-113 Rod Clamp KIT: (Thick) Graphite Clamp with Side Ring, Studs, Nuts, Wrench $12.50 More Info
33i-113SP In Stock 33i-113SP
033i-113SP▭ 		33i-113SP Kit Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey) (7pc Kit) $29.00 More Info
33N-113SP In Stock 33N-113SP
033N-1180382▭ 		33N-113SP Clamp, Rod, KIT: (Thick) Graphite Clamp with Studs and Nuts $13.25 More Info
33C-200 In Stock 33C-200
033C-1191611▭ 		33C-200 Rod Clamp KIT: (Classic Thin Style) Metal Clamp with Studs, Nuts, Wrench
113H Fits All Versions.
$15.25 More Info
33C-200-OLD Discontinued. Not Available 33C-200-OLD
033C-33C-200-OLD 		33C-200-OLD Rod Clamp KIT: Metal Clamp with open hook, with Studs, Old Style Wing Nuts, Wrench
Antique Restoration/Collectors Item for Display Reels
113H Fits All Versions.
More Info
33CR-200 Discontinued. Not Available 33CR-200
033CR-33CR-200 		33CR-200 Kit, Clamp, Rod Clamp with Ring (Classic Thin Style) (Brass) (Chrome) (8pc Kit with Wrench)
113H Fits both Frame Posts Versions.
More Info
34-45 In Stock 34-45
034-1182788▲ 		34-45 Screw, Rod Clamp Screw (Shorter for Thick Clamps) ONLY (uses 2)

This is just the stud

114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$1.35 More Info
34C-45 In Stock 34C-45
034C-1182862▲ 		34C-45 Screw With Nuts, for Thick Style Rod Clamp (uses 2)
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$2.70 More Info
34-200 In Stock 34-200
034-1182810▲ 		34-200 Screw, Clamp Screw (Longer for Thin Clamp) ONLY (uses 2)
This can be used as a sub for the 34-49 or 34-45 if wanting a LONGER stud screw
$2.30 More Info
34C-200 In Stock 34C-200
034C-1182875▲ 		34C-200 Screw with Nuts, f/Thin Style Metal Rod Clamp (uses 2) $4.60 More Info
35-60 In Stock 35-60
035-1182901☀ 		35-60 Tongue, Click Tongue $1.70 More Info
36N-209 Discontinued. Still In Stock. Limit 5 36N-209
036N-1183048☀ 		36N-209 Button, Click Button $1.60 More Info
37-65 In Stock 37-65
037-1183060☀ 		37-65 Post, Frame Post

REPLACES ORIGINAL NUMBER 37-99 ON SOME REELS
Used on multiple models in different quantities.
$2.70 More Info
38-8 In Stock 38-8
038-1183135♦ 		38-8 Screw

MULTI USE See Description
$1.15 More Info
40-60 In Stock 40-60
040-1183267☀ 		40-60 Bearing, Non-Handle Side

REPLACES ORIGINAL NUMBER 40-85 ON SOME REELS
$5.00 More Info
41-60 In Stock 41-60
041-1183327☀ 		41-60 Spring

MULTI USE See Description
$1.20 More Info
42-209 In Stock 42-209
042-1183346☀ 		42-209 Worm $4.05 More Info
43-109 In Stock 43-109
043-1183375☀ 		43-109 Bearing, Worm Bearing

MULTI USE See Description
$2.35 More Info
44N-109 In Stock 44N-109
044N-1183469☀ 		44N-109 Bearing, Worm Bearing $3.40 More Info
45N-309 In Stock 45N-309
045N-1183541☀ 		45N-309 Gear, Worm Gear $10.85 More Info
46-309 In Stock 46-309
046-1183558▲ 		46-309 Line Guide $5.00 More Info
46-309C In Stock 46-309C
046-309C▲ 		46-309C Assembly, Line Guide Assembly (4 pcs)

REPLACES ORIGINAL PART NUMBER 46C-309 ON SOME REELS
$12.40 More Info
47-109 In Stock 47-109
047-1183614♦ 		47-109 Pawl, Line Guide Pawl $1.70 More Info
48-109 In Stock 48-109
048-1183699☀ 		48-109 Screw, Cover, Pawl Cover Screw Cap $1.60 More Info
50-209 In Stock 50-209
050-1183757☀ 		50-209 Shield, Worm Shield $5.40 More Info
57-109 In Stock 57-109
057-1183927☀ 		57-109 Spring

MULTI USE See Description
Used on multiple models in different quantities.
$1.15 More Info
58-209 In Stock 58-209
058-1183950☀ 		58-209 Post, Slotted Post $4.15 More Info
62-309 In Stock 62-309
062-1184028▲ 		62-309 Spring, Click Spring, Metal
113H Fits Frame Posts with a clicker and Half Frame Versions.
$3.00 More Info
62M-209 Discontinued. Still In Stock. Limit 1 62M-209
062M-209 		62M-209 Spring, Click Spring (Plastic)
Direct product replacement: 62-209 Spring, Click, Metal Click Spring $2.40
$3.15 More Info
63-209 In Stock 63-209
063-1184048☀ 		63-209 Screw (for Metal Click Spring)

MULTI USE See Description
113H Fits Frame Posts with a clicker and Half Frame Versions.
$1.15 More Info
64-309 In Stock 64-309
064-1184063▲ 		64-309 Gear, Idler Gear $4.70 More Info
65-209 In Stock 65-209
065-1184084☀ 		65-209 Screw, Gear, Idler Gear Screw $1.15 More Info
66-309 In Stock 66-309
066-1184091☀ 		66-309 Gear, Drive Gear, Level Wind $2.35 More Info
67-209 In Stock 67-209
067-1184108☀ 		67-209 Spring, Drive Gear Lock Spring $1.15 More Info
69B-600 In Stock 69B-600
069B-1184129♦ 		69B-600 | DSS-VP2041 Ring, Retaining Ring (E-clip)
Used on multiple models in different quantities.
$1.35 More Info
86-500 In Stock 86-500
086-1184261 		86-500 Washer, Drag, Metal, Round Keyed Metal Drag Washer $1.35 More Info
98-60 In Stock 98-60
098-1184328▲ 		98-60 Sleeve, Gear Sleeve, 8 Tooth (comes with pin) (COARSE THREAD) (Brass) $5.85 More Info
Custom Sleeves Replacing: 98-60, 98-505   Custom Sleeves Replacing: 98-60, 98-505
Stainless Steel Gear Sleeves by other manufacturers. Click link to view options.
102-60 In Stock 102-60
102-1184408☀ 		102-60 Pin, Gear Sleeve Pin ONLY $1.20 More Info
110-60 In Stock 110-60
110-1184437♦ 		110-60 Screw, Handle Lock Screw

REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS
$1.15 More Info
149-45 In Stock 149-45
149-1184702♦ 		149-45 Nut, Clamp, Long, for Thick Clamps (uses 2)
Used with the graphite clamps 33-114H2, 33-340, 33N-113 and the iron alloy clamp 33i-113
$1.45 More Info
149-200 In Stock 149-200
149-1184706☀ 		149-200 Nut, Clamp Hex Nut (uses 2) $1.15 More Info
152-200 In Stock 152-200
152-1184709☀ 		152-200 Wing Nut, f/Thin Metal Rod Clamp Only (uses 2) $1.15 More Info
168-60 In Stock 168-60
168-1184802☘ 		168-60 Wrench
Fits 23-60, 23-16S knurled nuts (See details for list of reels)
$1.15 More Info
168-9 Discontinued. Not Available 168-9
168-1184800 		168-9 Wrench
Fits 23-60 knurled nut (see details for list of reels)
partimage

REPLACED BY PART NUMBER 168-60 or 168-TANI
Direct product replacement: 168-60 Wrench $1.15
More Info
Trusted SSL Certificate
