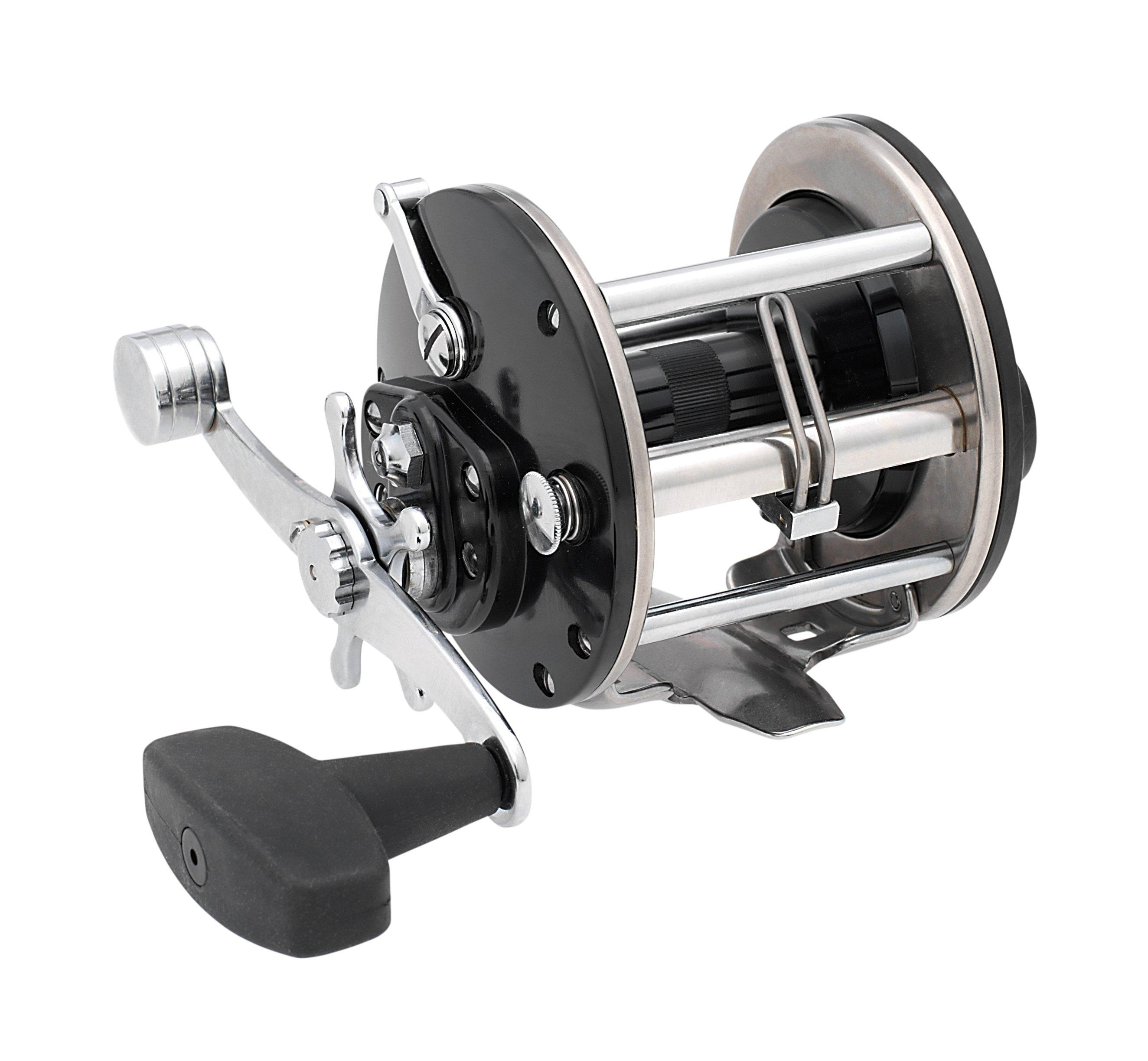

Model Specs:

More Info
  • Precision, stainless-steel pinion gear.
  • Alloy main gear.
  • Sealed oil ports for quick, easy lubrication.
  • Side plates reinforced with metal rings.
  • Chrome plated brass exposed metal components for corrosion resistance.
  • HT-100 multi-disc star drag system.
  • Loud, durable, easy-to-service clicker.
  • Light weight with black anodized spool.
  • Soft grip counterbalanced handle. (Early models had torpedo knobs). 109 has a dual knob handle.
Mono Cap
(yds/lb)
Max Drag Gear Ratio Line Retrieve
320/20 10 lbs 3.2:1 19(in)
Availability SKU Name Our Price
KIT209-209LC 209 Conversion Kit to 209LC $46.70 More Info
1-209CHINA In Stock 1-209CHINA
1180481
1-209CHINA Plate, Handle Side Plate, Black (Made In China) $10.10 More Info
1-209USA Discontinued. Not Available 1-209USA 1-209USA Plate, Handle Side Plate, Black (Made In USA) More Info
2-209  In Stock 2-209
1180630
2-209 Ring, Side Ring (Chrome)

REPLACED BY PART NUMBER 2N-209

$6.00 More Info
2N-209 Discontinued. Not Available 2N-209 2N-209 Ring, Handle Side Ring (Stainless Steel) More Info
3-155 Backordered. Still In Stock. Limit 5 3-155
1180716
3-155 Bridge with Sleeve $10.35 More Info
4-155 In Stock 4-155
1180772
4-155 Washer, Hard Fiber Spacer (Under Main Gear) $0.95 More Info
5-155  Discontinued. Still In Stock. Limit 2 5-155
1180859
5-155 Gear, Main Gear

REPLACED BY PART NUMBER 5C-209

LIMITED QUANTITIES AVAILABLE

$7.95 More Info
5C-209 In Stock 5C-209
1203724
5C-209 Gear, Main & Pinion KIT (2 pcs) $11.05 More Info
6-155SP In Stock 6-155SP
1180392
6-155SP Kit, Drag Washers, Drag Washer Kit HT-100™ with Metals (6 pcs) $8.35 More Info
6-155 In Stock 6-155
1180915
6-155 Washer, Drag Washer HT-100™
MULTI USE See Description
Used on multiple models in different quantities.
$0.95 More Info
6-155SD In Stock 6-155SD
CBT P#155
6-155SD Set, Drag Washers, CARBONTEX by SmoothDrag (Custom) $8.00 More Info
7-155 In Stock 7-155
1181014
7-155 Eared Metal Drag Washer ONLY $1.00 More Info
7C-155 In Stock 7C-155
1181047
7C-155 Washer, Drag, Metal Drag Washers (SET of 3) $5.55 More Info
8-60 In Stock 8-60
1181056
8-60 Washer, Black Tension Spring Washer (Belleville)

8-60 BLACK REPLACES ORIGINAL NUMBER 8-60 CHROME

Used on multiple models in different quantities.
Direct product replacement: 8-310GT2 Spring, Tension Spring, Chrome $1.10
$0.95 More Info
9-60 In Stock 9-60 9-60 Sleeve, Spacing Sleeve - (optional variations)
Variations allow for more/less play in handle - see description.
More Info
10-60 In Stock 10-60
1181176
10-60 Star Drag Wheel (COARSE Thread - Two Types)

REPLACES ORIGINAL NUMBER 10-140 ON SOME REELS

$4.05 More Info
11-155 In Stock 11-155
1181237
11-155 Jack, Eccentric Jack (Brass) $2.00 More Info
12-155 In Stock 12-155
1181264
12-155 Yoke, Pinion Yoke (Brass) $1.10 More Info
13-155 Discontinued. Still In Stock. Limit 2 13-155
1181335
13-155 Gear, Pinion Gear

REPLACED BY PART NUMBER 5C-209

Direct product replacement: 5C-209 Gear, Main & Pinion KIT (2 pcs) $11.05
$7.55 More Info
14-99 In Stock 14-99
1181393
14-99 Spring
Used on multiple models in different quantities.
$0.95 More Info
15-209 In Stock 15-209
1181452
15-209 Dog $1.10 More Info
16-60CH In Stock 16-60CH
1181565
16-60CH Screw

REPLACES ORIGINAL PART NUMBER 16-60 ON SOME REELS

Used on multiple models in different quantities.
$0.95 More Info
17-60CH In Stock 17-60CH
1181594
17-60CH Screw, Bridge, Upper Bridge Screw

REPLACES ORIGINAL PART NUMBER 17-60

Used on multiple models in different quantities.
$0.95 More Info
18-60 In Stock 18-60
1181615
18-60 Spring, Clutch Spring
Used on multiple models in different quantities.
$0.95 More Info
19-209 In Stock 19-209
1181674
19-209 Eccentric $3.45 More Info
20-113H2 In Stock 20-113H2
1288917
20-113H2 Spring, Eccentric Spring

REPLACES ORIGINAL NUMBER 20-155 ON SOME REELS

$0.95 More Info
20-155 Discontinued. Not Available 20-155
1181769
20-155 Spring, Eccentric Spring
Used on multiple models in different quantities.
113H Fits All Versions.
Direct product replacement: 20-113H2 Spring, Eccentric Spring $0.95
More Info
21-209 In Stock 21-209
1181855
21-209 Lever, Eccentric Lever

REPLACES ORIGINAL NUMBER 21-285 ON SOME REELS

$1.95 More Info
22-60 Discontinued. Not Available 22-60 22-60 Screw, Eccentric Screw More Info
22-60CH In Stock 22-60CH
1181908
22-60CH Screw, Eccentric Screw with washer (Sems) (Silver)

REPLACES ORIGINAL NUMBER 22-60, 22-113HN ON SOME REELS

114H Fits Half Frame Version.
$1.90 More Info
23-60  In Stock 23-60
1181935
23-60 Screw, Large

MULTI USE See Description

$2.80 More Info
24-500-1-PC Backordered. Still In Stock. Limit 1 24-500-1-PC
PC-JM-HDL
24-500-1-PC Offset Handle Blank ONLY (includes screw)
For PENN 112H, JigMaster 500/501/505/506 (Other PENN Reels)
$12.00 More Info
24N-310 Discontinued. Not Available 24N-310 24N-310 Handle, Chromed Blade, Flat Rubberized Ergo Knob
FITS: Type [A] Bridge/Sleeve

REPLACED BY PART NUMBER 24S-310

More Info
26-155 In Stock 26-155
1182122
26-155 Bearing, Handle Side Bearing $6.60 More Info
27-209 (CHINA) In Stock 27-209 (CHINA)
1182216
27-209 Plate, Non-Handle Side, Black (Made In China) $11.30 More Info
27-209USA Discontinued. Still In Stock. Limit 5 27-209USA
1182216
27-209USA Plate, Non-Handle Side Plate (Black)(Made In USA)

LIMITED QUANTITIES AVAILABLE

$13.00 More Info
28-209 In Stock 28-209
1182378
28-209 Ring, Side Ring (Chrome)

REPLACED BY PART NUMBER 28N-209

Direct product replacement: 28N-209 Ring, Side Ring (Stainless Steel) $3.95
$5.00 More Info
28N-209 In Stock 28N-209 28N-209 Ring, Side Ring (Stainless Steel) $3.95 More Info
29-209 Discontinued. Not Available 29-209 29-209 Spool, Plastic (Collector See Notes)
Direct product replacement: 29L-209 Spool, Aluminum (Black) $20.00
More Info
29L-209 In Stock 29L-209
1182526
29L-209 Spool, Aluminum (Black) $20.00 More Info
29M-209-CB Discontinued. Not Available 29M-209-CB 29M-209 Spool, Chrome on Bronze
Direct product replacement: 29L-209 Spool, Aluminum (Black) $20.00
More Info
29M-209-S Discontinued. Not Available 29M-209-S
029M209
29M-209 Spool, Metal, Stainless
Direct product replacement: 29L-209 Spool, Aluminum (Black) $20.00
More Info
30-66 Backordered. Still In Stock. Limit 5 30-66
1182609
30-66 Stand (Stainless Matte Finish) $11.90 More Info
31-2.5FR  In Stock 31-2.5FR
1182662
31-2.5FR Screw

MULTI USE See Description

$0.95 More Info
32-22 In Stock 32-22
1182714
32-22 Screw

MULTI USE See Description

REPLACES ORIGINAL PART NUMBER 31-155 ON SOME REELS

Used on multiple models in different quantities.
$1.40 More Info
33-16VS In Stock 33-16VS
1191592
33-16VS Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey)

REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS

$16.55 More Info
33-113 Discontinued. Not Available 33-113 33-113 Clamp, Rod Clamp (Thick) (Graphite) (Black)

REPLACED BY PART NUMBER 33N-113

More Info
33N-113 In Stock 33N-113
1182754
33N-113 Clamp, Rod Clamp with Side Ring (Thick) (Graphite) (Black)

REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS

$4.45 More Info
33-TRQ Backordered. Still In Stock. Limit 5 33-TRQ
1290729
33-TRQ Clamp, Rod Clamp (Thick) (Aluminum) (Black) $1.50 More Info
33-TRQS Backordered. Still In Stock. Limit 2 33-TRQS
1365544
33-TRQS Clamp, Rod Clamp (Thick) (Aluminum) (Silver) $7.85 More Info
33-200 In Stock 33-200
1182759
33-200 Clamp, Rod Clamp (Classic Thin Style) (Metal) $4.35 More Info
33R-200 Backordered. Not Available 33R-200
1182783
33R-200 Clamp, Rod, Metal, Ringed (Classic Thin Style) (Optional) (Made in China, Brushed Stainless) More Info
33-113SP Discontinued. Not Available 33-113SP 33-113SP Kit, Clamp, Rod Clamp (Thick) (Graphite) (Black) (7pc Kit) More Info
33C-113 In Stock 33C-113
1182773
33C-113 Rod Clamp KIT: (Thick) Graphite Clamp with Side Ring, Studs, Nuts, Wrench $10.40 More Info
33N-113SP In Stock 33N-113SP
1180382
33N-113SP Clamp, Rod, KIT: (Thick) Graphite Clamp with Studs and Nuts $11.05 More Info
33i-113SP In Stock 33i-113SP 33i-113SP Kit Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey) (7pc Kit) $24.15 More Info
33C-200 Discontinued. Still In Stock 33C-200
1191611
33C-200 Rod Clamp KIT: (Classic Thin Style) Metal Clamp with Studs, Nuts, Wrench
This part will no longer be manufactured by Penn; Limited Quantities Available.
113H Fits All Versions.
$12.70 More Info
33C-200-OLD Discontinued. Not Available 33C-200-OLD 33C-200-OLD Rod Clamp KIT: Metal Clamp with open hook, with Studs, Old Style Wing Nuts, Wrench
Antique Restoration/Collectors Item for Display Reels
113H Fits All Versions.
More Info
33CR-200 Discontinued. Not Available 33CR-200 33CR-200 Kit, Clamp, Rod Clamp with Ring (Classic Thin Style) (Brass) (Chrome) (8pc Kit with Wrench)
113H Fits both Frame Posts Versions.
More Info
34-45 In Stock 34-45
1182788
34-45 Screw, Rod Clamp Screw (Shorter for Thick Clamps) ONLY (uses 2)

This is just the stud

114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$1.10 More Info
34C-45 In Stock 34C-45
1182862
34C-45 Screw With Nuts, for Thick Style Rod Clamp (uses 2)
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$2.25 More Info
34-200 In Stock 34-200
1182810
34-200 Screw, Clamp Screw (Longer for Thin Clamp) ONLY (uses 2)
This can be used as a sub for the 34-49 or 34-45 if wanting a LONGER stud screw
$1.90 More Info
34C-200  In Stock 34C-200
1182875
34C-200 Screw with Nuts, f/Thin Style Metal Rod Clamp (uses 2) $3.80 More Info
35-155 In Stock 35-155
1182919
35-155 Tongue, Click Tongue $3.45 More Info
36N-209 In Stock 36N-209
1183048
36N-209 Button, Click Button $1.30 More Info
37-160 In Stock 37-160
1183073
37-160 Post, Frame Post

MULTI USE See Description

REPLACES ORIGINAL PART NUMBER 37-209 ON SOME REELS

$6.05 More Info
38-8 In Stock 38-8
1183135
38-8 Screw

MULTI USE See Description
$0.95 More Info
40-60 In Stock 40-60
1183267
40-60 Bearing, Non-Handle Side

REPLACES ORIGINAL NUMBER 40-85 ON SOME REELS

$4.15 More Info
41-60 In Stock 41-60
1183327
41-60 Spring

MULTI USE See Description

$1.00 More Info
42-209 In Stock 42-209
1183346
42-209 Worm $3.35 More Info
43-109 In Stock 43-109
1183375
43-109 Bearing, Worm Bearing

MULTI USE See Description

$1.95 More Info
44N-109 In Stock 44N-109
1183469
44N-109 Bearing, Worm Bearing $2.80 More Info
45N-209 In Stock 45N-209
1183540
45N-209 Worm Gear $9.00 More Info
46-209 In Stock 46-209
1183552
46-209 Line Guide $7.90 More Info
46-209C  In Stock 46-209C 46-209C Line Guide Assembly

REPLACES ORIGINAL NUMBER 46C-209 ON SOME REELS

$13.35 More Info
47-109 In Stock 47-109
1183614
47-109 Pawl, Line Guide Pawl $1.40 More Info
48-109 In Stock 48-109
1183699
48-109 Screw, Cover, Pawl Cover Screw Cap $1.30 More Info
50-209 In Stock 50-209
1183757
50-209 Shield, Worm Shield $4.50 More Info
57-109 In Stock 57-109
1183927
57-109 Spring

MULTI USE See Description

Used on multiple models in different quantities.
$0.95 More Info
58-209 In Stock 58-209
1183950
58-209 Post, Slotted Post $3.45 More Info
62-209 In Stock 62-209
1184026
62-209 Spring, Click, Metal Click Spring

MULTI USE See Description

$2.00 More Info
62M-209 Discontinued. Not Available 62M-209 62M-209 Spring, Click Spring (Plastic)
Direct product replacement: 62-209 Spring, Click, Metal Click Spring $2.00
More Info
63-209 In Stock 63-209
1184048
63-209 Screw (for Metal Click Spring)

MULTI USE See Description

113H Fits Frame Posts with a clicker and Half Frame Versions.
$0.95 More Info
64-209 In Stock 64-209
1184061
64-209 Gear, Idler Gear

REPLACES ORIGINAL PART NUMBER 64-209 (# remained the same)

Click for more info
$3.90 More Info
65-209 In Stock 65-209
1184084
65-209 Screw, Gear, Idler Gear Screw $0.95 More Info
66N-209 In Stock 66N-209
1184100
66N-209 Gear, Level Wind Drive Gear $1.25 More Info
67-209 In Stock 67-209
1184108
67-209 Spring, Drive Gear Lock Spring $0.95 More Info
69B-600 1184129 In Stock 69B-600 1184129
DSS-VP2041
69B-600 | DSS-VP2041 Ring, Retaining Ring (E-clip)
Used on multiple models in different quantities.
$1.10 More Info
98-155 In Stock 98-155
1184340
98-155 Sleeve, Gear Sleeve (comes with pin) (Brass) $4.15 More Info
Custom Sleeves Replacing: 98-155   Custom Sleeves Replacing: 98-155
Stainless Steel Gear Sleeves by other manufacturers. Click link to view options.
110-60 In Stock 110-60
1184437
110-60 Screw, Handle Lock Screw

REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS

$0.95 More Info
149-45 In Stock 149-45
1184702
149-45 Nut, Clamp, Long, for Thick Clamps (uses 2)
Used with the graphite clamps 33-114H2, 33-340, 33N-113 and the iron alloy clamp 33i-113
$1.20 More Info
149-200 In Stock 149-200
1184706
149-200 Nut, Clamp Hex Nut (uses 2) $0.95 More Info
152-200 In Stock 152-200
1184709
152-200 Wing Nut, f/Thin Metal Rod Clamp Only (uses 2) $0.95 More Info
168-60 In Stock 168-60
1184802
168-60 Wrench
Fits 23-60, 23-16S knurled nuts (See details for list of reels)
$0.95 More Info
168-TANI In Stock 168-TANI 168-TANI Heavy Duty Penn Handle Nut Wrench by Alan Tani
Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts
$15.00 More Info
168-9 Discontinued. Not Available 168-9
1184800
168-9 Wrench
Fits 23-60 knurled nut (see details for list of reels)
partimage

REPLACED BY PART NUMBER 168-60 or 168-TANI

Direct product replacement: 168-60 Wrench $0.95
More Info
Trusted SSL Certificate
