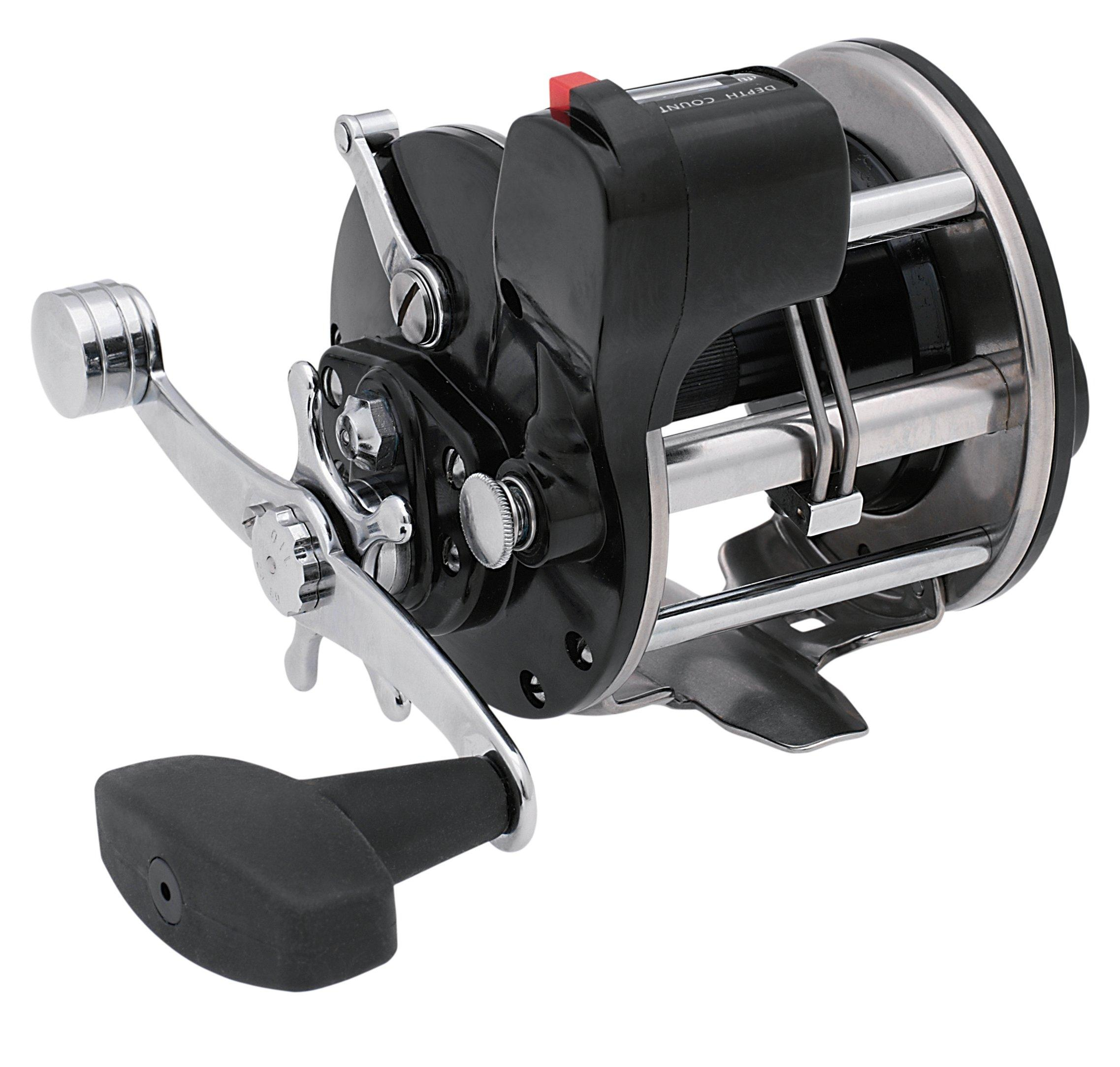

Penn 209LC Peer Line Counter Reel

View / Print Schematic Request a Schematic View / Print Owners Manual Buy Reel Buy Reel Cover

Model Specs:

More Info
  • Precision, stainless-steel pinion gear.
  • Alloy main gear.
  • Sealed oil ports for quick, easy lubrication.
  • Side plates reinforced with metal rings.
  • Chrome plated brass exposed metal components for corrosion resistance.
  • HT-100 multi-disc star drag system.
  • Loud, durable, easy-to-service clicker.
  • Light weight with black anodized spool.
  • Soft grip counterbalanced handle. (Early models had torpedo knobs). 109 has a dual knob handle.
Mono Cap
(yds/lb)		 Max Drag Gear Ratio Line Retrieve
320/20 10 lbs 3.2:1 19
Availability SKU Name Our Price
KIT209-209LC
209- KIT209-209LC 		209M Conversion Kit Standard over to 209LC Line Counter $50.15 More Info
1-209LC In Stock 1-209LC
001-1190824 		1-209LC Plate, Handle Side Plate, Black $11.70 More Info
1A-209LC In Stock 1A-209LC
001A-1190859▲ 		1A-209LC Cover, Line Counter Cover $4.95 More Info
1B-209LC In Stock 1B-209LC
001B-1190861 		1B-209LC Screw, L.C. Cover Top (uses 2) $1.15 More Info
1C-209LC In Stock 1C-209LC
001C-1190869 		1C-209LC Screw, L.C. Cover Lower $2.05 More Info
2-209 In Stock 2-209
002-1180630▲ 		2-209 Ring, Side Ring (Chrome)

REPLACED BY PART NUMBER 2N-209
$7.20 More Info
2N-209 Discontinued. Not Available 2N-209
002N-2N-209 		2N-209 Ring, Handle Side Ring (Stainless Steel) $4.75 More Info
3-155 Backordered. Still In Stock. Limit 5 3-155
003-1180716 		3-155 Bridge with Sleeve $10.35 More Info
4-155 In Stock 4-155
004-1180772♦ 		4-155 Washer, Hard Fiber Spacer (Under Main Gear) $1.15 More Info
5-209LC In Stock 5-209LC
005-1190962 		5-209LC Gear, Main Gear $7.40 More Info
5C-209 In Stock 5C-209
005C-1203724▲ 		5C-209 Gear, Main & Pinion KIT (2 pcs) $13.30 More Info
6-155 In Stock 6-155
006-1180915◉ 		6-155 Washer, Drag Washer HT-100™
MULTI USE See Description
Used on multiple models in different quantities.
$1.15 More Info
6-155SP In Stock 6-155SP
006SP-1180392◉▭ 		6-155SP Kit, Drag Washers, Drag Washer Kit HT-100™ with Metals (6 pcs) $10.00 More Info
7-155 In Stock 7-155
007-1181014 		7-155 Eared Metal Drag Washer ONLY $1.20 More Info
7C-155 In Stock 7C-155
007C-1181047▲ 		7C-155 Washer, Drag, Metal Drag Washers (SET of 3) $6.65 More Info
8-60 In Stock 8-60
008-1181056♦ 		8-60 Washer, Black Tension Spring Washer (Belleville)

8-60 BLACK REPLACES ORIGINAL NUMBER 8-60 CHROME
Used on multiple models in different quantities.
Direct product replacement: 8-310GT2 Spring, Tension Spring, Chrome $1.35
$1.25 More Info
9-60 In Stock 9-60
009-060 		9-60 Sleeve, Spacing Sleeve - (optional variations)
Variations allow for more/less play in handle - see description.
More Info
10-60 In Stock 10-60
010-1181176▲ 		10-60 Star Drag Wheel (COARSE Thread - Two Types)

REPLACES ORIGINAL NUMBER 10-140 ON SOME REELS
$4.90 More Info
10-505-Custom In Stock 10-505-Custom
010-PC10-505 		10-505-Custom Star Drag Wheel, Aluminum (FINE THREAD) (CUSTOM) $24.99 More Info
11-155 In Stock 11-155
011-1181237☀ 		11-155 Jack, Eccentric Jack (Brass) $2.40 More Info
12-155 In Stock 12-155
012-1181264☀ 		12-155 Yoke, Pinion Yoke (Brass) $1.35 More Info
13-209LC Discontinued. Not Available 13-209LC
013-1191110 		13-209LC Gear, Pinion Gear More Info
14-99 In Stock 14-99
014-1181393♦ 		14-99 Spring
Used on multiple models in different quantities.
$1.15 More Info
15-209 In Stock 15-209
015-1181452☀ 		15-209 Dog $1.35 More Info
16-60CH In Stock 16-60CH
016-1181565☀ 		16-60CH Screw

REPLACES ORIGINAL PART NUMBER 16-60 ON SOME REELS
Used on multiple models in different quantities.
$1.15 More Info
17-60CH In Stock 17-60CH
017-1181594☀ 		17-60CH Screw, Bridge, Upper Bridge Screw

REPLACES ORIGINAL PART NUMBER 17-60
Used on multiple models in different quantities.
$1.15 More Info
18-60 In Stock 18-60
018-1181615☀ 		18-60 Spring, Clutch Spring
Used on multiple models in different quantities.
$1.15 More Info
19-209 In Stock 19-209
019-1181674 		19-209 Eccentric $4.15 More Info
20-113H2 In Stock 20-113H2
020-1288917♦ 		20-113H2 Spring, Eccentric Spring

REPLACES ORIGINAL NUMBER 20-155 ON SOME REELS
$1.15 More Info
20-155 Discontinued. Not Available 20-155
020-1181769 		20-155 Spring, Eccentric Spring
Used on multiple models in different quantities.
113H Fits All Versions.
Direct product replacement: 20-113H2 Spring, Eccentric Spring $1.15
More Info
21-209 In Stock 21-209
021-1181855☀ 		21-209 Lever, Eccentric Lever

REPLACES ORIGINAL NUMBER 21-285 ON SOME REELS
$2.35 More Info
22-60CH In Stock 22-60CH
022-1181908☀ 		22-60CH Screw, Eccentric Screw with washer (Sems) (Silver)

REPLACES ORIGINAL NUMBER 22-60, 22-113HN ON SOME REELS
114H Fits Half Frame Version.
$2.30 More Info
23-60 In Stock 23-60
023-1181935☀ 		23-60 Screw, Large

MULTI USE See Description
$4.10 More Info
24-66 Backordered. Still In Stock. Limit 10 24-66
024-1181980▭ 		24-66 Handle, Flat Rubberized Knob
FITS: Type [A] Bridge/Sleeve
$23.20 More Info
24-500-1-PC Backordered. Still In Stock 24-500-1-PC
024-PC-JM-HDL 		24-500-1-PC Offset Handle Blank ONLY (includes screw)
For PENN 112H, JigMaster 500/501/505/506 (Other PENN Reels)
$13.00 More Info
26-155 In Stock 26-155
026-1182122☀ 		26-155 Bearing, Handle Side Bearing $7.95 More Info
27-209 (CHINA) In Stock 27-209 (CHINA)
027-1182216 		27-209 Plate, Non-Handle Side, Black (Made In China) $13.60 More Info
28-209 Discontinued. Still In Stock. Limit 5 28-209
028-209▲ 		28-209 Ring, Side Ring (Chrome)

REPLACED BY PART NUMBER 28N-209
Direct product replacement: 28N-209 Ring, Side Ring (Stainless Steel) $3.95
$6.50 More Info
28N-209 In Stock 28N-209
028N-1182378▲ 		28N-209 Ring, Side Ring (Stainless Steel) $3.95 More Info
29L-209 In Stock 29L-209
029L-1182526 		29L-209 Spool, Aluminum (Black) $24.00 More Info
30-66 In Stock 30-66
030-1182609 		30-66 Stand (Stainless Matte Finish) $11.95 More Info
32-22 In Stock 32-22
032-1182714☀ 		32-22 Screw

MULTI USE See Description

REPLACES ORIGINAL PART NUMBER 31-155 ON SOME REELS
Used on multiple models in different quantities.
$1.70 More Info
33-200 In Stock 33-200
033-1182759▲ 		33-200 Clamp, Rod Clamp (Classic Thin Style) (Metal) $5.25 More Info
33R-200 Backordered. Not Available 33R-200
033R-1182783 		33R-200 Clamp, Rod, Metal, Ringed (Classic Thin Style) (Optional) (Made in China, Brushed Stainless) More Info
33-16VS In Stock 33-16VS
033-1191592▲ 		33-16VS Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey)

REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS
$19.90 More Info
33-113 Discontinued. Not Available 33-113
033-33-113 		33-113 Clamp, Rod Clamp (Thick) (Graphite) (Black)

REPLACED BY PART NUMBER 33N-113
More Info
33N-113 In Stock 33N-113
033N-1182754☘ 		33N-113 Clamp, Rod Clamp with Side Ring (Thick) (Graphite) (Black)

REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS
$5.35 More Info
33-TRQ In Stock 33-TRQ
033-1290729▲ 		33-TRQ Clamp, Rod Clamp (Thick) (Aluminum) (Black) $1.50 More Info
33-TRQS In Stock 33-TRQS
033-1365544▲ 		33-TRQS Clamp, Rod Clamp (Thick) (Aluminum) (Silver) $8.50 More Info
33-113SP Discontinued. Not Available 33-113SP
033-33-113SP 		33-113SP Kit, Clamp, Rod Clamp (Thick) (Graphite) (Black) (7pc Kit) More Info
33C-113 In Stock 33C-113
033C-1182773▭ 		33C-113 Rod Clamp KIT: (Thick) Graphite Clamp with Side Ring, Studs, Nuts, Wrench $12.50 More Info
33i-113SP In Stock 33i-113SP
033i-113SP▭ 		33i-113SP Kit Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey) (7pc Kit) $29.00 More Info
33N-113SP In Stock 33N-113SP
033N-1180382▭ 		33N-113SP Clamp, Rod, KIT: (Thick) Graphite Clamp with Studs and Nuts $13.30 More Info
33C-200 In Stock 33C-200
033C-1191611▭ 		33C-200 Rod Clamp KIT: (Classic Thin Style) Metal Clamp with Studs, Nuts, Wrench
113H Fits All Versions.
$15.25 More Info
33CR-200 Discontinued. Not Available 33CR-200
033CR-33CR-200 		33CR-200 Kit, Clamp, Rod Clamp with Ring (Classic Thin Style) (Brass) (Chrome) (8pc Kit with Wrench)
113H Fits both Frame Posts Versions.
More Info
34-45 In Stock 34-45
034-1182788▲ 		34-45 Screw, Rod Clamp Screw (Shorter for Thick Clamps) ONLY (uses 2)

This is just the stud

114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$1.35 More Info
34C-45 In Stock 34C-45
034C-1182862▲ 		34C-45 Screw With Nuts, for Thick Style Rod Clamp (uses 2)
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$2.70 More Info
34-200 In Stock 34-200
034-1182810▲ 		34-200 Screw, Clamp Screw (Longer for Thin Clamp) ONLY (uses 2)
This can be used as a sub for the 34-49 or 34-45 if wanting a LONGER stud screw
$2.30 More Info
34C-200 In Stock 34C-200
034C-1182875▲ 		34C-200 Screw with Nuts, f/Thin Style Metal Rod Clamp (uses 2) $4.60 More Info
35-155 In Stock 35-155
035-1182919☀ 		35-155 Tongue, Click Tongue $4.15 More Info
36N-209 In Stock 36N-209
036N-1183048☀ 		36N-209 Button, Click Button $1.60 More Info
37-160 In Stock 37-160
037-1183073☀ 		37-160 Post, Frame Post

MULTI USE See Description

REPLACES ORIGINAL PART NUMBER 37-209 ON SOME REELS
$7.25 More Info
38-8 In Stock 38-8
038-1183135♦ 		38-8 Screw

MULTI USE See Description
$1.15 More Info
40-60 In Stock 40-60
040-1183267☀ 		40-60 Bearing, Non-Handle Side

REPLACES ORIGINAL NUMBER 40-85 ON SOME REELS
$5.00 More Info
41-60 In Stock 41-60
041-1183327☀ 		41-60 Spring

MULTI USE See Description
$1.20 More Info
42-209LC In Stock 42-209LC
012-1191793 		42-209LC Worm $3.00 More Info
43-109 In Stock 43-109
043-1183375☀ 		43-109 Bearing, Worm Bearing

MULTI USE See Description
$2.35 More Info
44N-109 In Stock 44N-109
044N-1183469☀ 		44N-109 Bearing, Worm Bearing $3.40 More Info
45N-209 In Stock 45N-209
045N-1183540☀ 		45N-209 Worm Gear $10.80 More Info
46-209 In Stock 46-209
046-1183552▲ 		46-209 Line Guide $9.50 More Info
47-109 In Stock 47-109
047-1183614♦ 		47-109 Pawl, Line Guide Pawl $1.70 More Info
48-109 In Stock 48-109
048-1183699☀ 		48-109 Screw, Cover, Pawl Cover Screw Cap $1.60 More Info
50-209 In Stock 50-209
050-1183757☀ 		50-209 Shield, Worm Shield $5.40 More Info
57-109 In Stock 57-109
057-1183927☀ 		57-109 Spring

MULTI USE See Description
Used on multiple models in different quantities.
$1.15 More Info
58-209 In Stock 58-209
058-1183950☀ 		58-209 Post, Slotted Post $4.15 More Info
62-209 In Stock 62-209
062-1184026☀ 		62-209 Spring, Click, Metal Click Spring

MULTI USE See Description
$2.40 More Info
63-209 In Stock 63-209
063-1184048☀ 		63-209 Screw (for Metal Click Spring)

MULTI USE See Description
113H Fits Frame Posts with a clicker and Half Frame Versions.
$1.15 More Info
64-209 In Stock 64-209
064-1184061▲ 		64-209 Gear, Idler Gear

REPLACES ORIGINAL PART NUMBER 64-209 (# remained the same)

Click for more info
$4.70 More Info
65-209 In Stock 65-209
065-1184084☀ 		65-209 Screw, Gear, Idler Gear Screw $1.15 More Info
66N-209 In Stock 66N-209
066N-1184100☀ 		66N-209 Gear, Level Wind Drive Gear $1.50 More Info
67-209 In Stock 67-209
067-1184108☀ 		67-209 Spring, Drive Gear Lock Spring $1.15 More Info
69B-600 In Stock 69B-600
069B-1184129♦ 		69B-600 | DSS-VP2041 Ring, Retaining Ring (E-clip)
Used on multiple models in different quantities.
$1.35 More Info
98-155 In Stock 98-155
098-1184340▲ 		98-155 Sleeve, Gear Sleeve (comes with pin) (Brass) $5.00 More Info
Custom Sleeves Replacing: 98-155   Custom Sleeves Replacing: 98-155
Stainless Steel Gear Sleeves by other manufacturers. Click link to view options.
102-60 In Stock 102-60
102-1184408☀ 		102-60 Pin, Gear Sleeve Pin ONLY $1.20 More Info
110-60 In Stock 110-60
110-1184437♦ 		110-60 Screw, Handle Lock Screw

REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS
$1.15 More Info
149-45 In Stock 149-45
149-1184702♦ 		149-45 Nut, Clamp, Long, for Thick Clamps (uses 2)
Used with the graphite clamps 33-114H2, 33-340, 33N-113 and the iron alloy clamp 33i-113
$1.45 More Info
149-200 In Stock 149-200
149-1184706☀ 		149-200 Nut, Clamp Hex Nut (uses 2) $1.15 More Info
152-200 In Stock 152-200
152-1184709☀ 		152-200 Wing Nut, f/Thin Metal Rod Clamp Only (uses 2) $1.15 More Info
303-209LC In Stock 303-209LC
303-1192550 		303-209LC Counter Wheel Assembly $11.70 More Info
303A-209LC In Stock 303A-209LC
303A-1192551☀ 		303A-209LC Retainer f/Counter Wheel Assembly $1.15 More Info
168-TANI In Stock 168-TANI
168-TANi▭ 		168-TANI Heavy Duty Penn Handle Nut Wrench by Alan Tani
Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts
$18.00 More Info
168-9 Discontinued. Not Available 168-9
168-1184800 		168-9 Wrench
Fits 23-60 knurled nut (see details for list of reels)
partimage

REPLACED BY PART NUMBER 168-60 or 168-TANI
Direct product replacement: 168-60 Wrench $1.15
More Info
168-60 In Stock 168-60
168-1184802☘ 		168-60 Wrench
Fits 23-60, 23-16S knurled nuts (See details for list of reels)
$1.15 More Info
Trusted SSL Certificate
