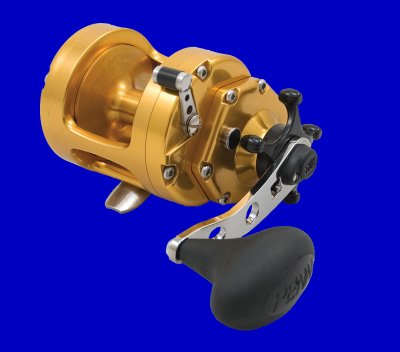

Penn TRQ200 (AKA 200T) Torque Conventional Star and LeverDrag Reel

View / Print Schematic Request a Schematic View / Print Owners Manual Buy Reel Cover

Model Specs:

More Info
  • *LD - Lever drag
  • Braid Ready
  • Lightweight and Strong Aluminum Alloy; Forged & machined Frame, Spool, and Side plates
  • Precision Machined Stainless Steel Main Gear (6.3:1 Gear Ratio)
  • Heat-treated Stainless Steel Pinion Gear for strength
  • Oversized Soft-Grip Power Handle
  • Stainless Steel Reel Stand
  • One-Piece, Open-Top Frame
  • Infinite anti-reverse Roller Bearing PLUS Double Dog system Backup
  • Versa-drag, Multiple Drag-stack Arrangement
  • Disengaging Pinion for superior Free Spool
  • Five Stainless Steel Ball Bearings
Mono Cap
(yds/lb)		 Braid Cap
(yds/lb)		 Bearings Max Drag Gear Ratio Line Retrieve
450/16 450/50 4 6.2:1
Availability SKU Name Our Price
1-200T Discontinued. Not Available 1-200T
1190823 		1-200T Plate, Handle Side Plate More Info
1C-200T In Stock 1C-200T
1190868 		1C-200T Cover, Handle Side Cover $137.85 More Info
1D-200T In Stock 1D-200T
1192564 		1D-200T Plate, Backing Plate $5.15 More Info
4-155 In Stock 4-155
1180772 		4-155 Washer, Hard Fiber Spacer (Under Main Gear) $0.60 More Info
4-200T In Stock 4-200T
1192568 		4-200T Washer $1.10 More Info
5-200T In Stock 5-200T
1190961 		5-200T Gear, Main Gear $37.60 More Info
6-300T In Stock 6-300T
1190977 		6-300T Washer, Drag Washer (uses 4) $4.20 More Info
7-300T In Stock 7-300T
1191004 		7-300T Washer, Drag, Metal Drag Washer (uses 3) $0.85 More Info
8-113HN In Stock 8-113HN
1181066 		8-113HN Washer, Click Washer $5.65 More Info
10-300T In Stock 10-300T
1181193 		10-300T Star Drag Wheel (Metal) $9.40 More Info
10C-113HN In Stock 10C-113HN
1181219 		10C-113HN Spring, Detent Spring $1.40 More Info
11-300T In Stock 11-300T
1191083 		11-300T Jack, Eccentric Jack $1.40 More Info
12-300T In Stock 12-300T
1181266 		12-300T Yoke, Pinion Yoke $3.00 More Info
13-200T In Stock 13-200T
1191109 		13-200T Pinion $11.15 More Info
13A-200T In Stock 13A-200T
1191120 		13A-200T Pin, Pinion Pin $3.70 More Info
14-300T In Stock 14-300T
1181401 		14-300T Spring, Dog Spring (uses 2) $3.35 More Info
15-200T In Stock 15-200T
1181449 		15-200T Dog, Anti-Reverse Dog (uses 2) $1.40 More Info
16-910 In Stock 16-910
1181585 		16-910 Screw, Short

REPLACES ORIGINAL NUMBER 44-4200 ON SOME REELS
Used on multiple models in different quantities.
$0.60 More Info
16B-200T Discontinued. Not Available 16B-200T
1191200 		16B-200T Washer, Eccentric Screw Washer
Click for more info
Workaround product replacement: 60-320 Washer, for Idler Gear and Worm Bearing $1.20
More Info
18-60 In Stock 18-60
1181615 		18-60 Spring, Clutch Spring
Used on multiple models in different quantities.
$0.60 More Info
18-505 In Stock 18-505
1181623 		18-505 Washer, Tension Spring Washer
Used on multiple models in different quantities.
$1.65 More Info
18A-300T In Stock 18A-300T
1191211 		18A-300T Post, Clutch Spring Post (uses 2) $1.80 More Info
19-200T In Stock 19-200T
1181672 		19-200T Eccentric $6.90 More Info
20-60L Discontinued. Not Available 20-60L
1181756 		20-60L Spring, Eccentric Spring

REPLACED BY PART NUMBER 20-112H2
Direct product replacement: 20-112H2 Spring, Eccentric Spring $0.75
More Info
20-112H2 In Stock 20-112H2
1288916 		20-112H2 Spring, Eccentric Spring

REPLACES ORIGINAL NUMBER 20-60L ON SOME REELS
$0.75 More Info
20-267 In Stock 20-267
1181775 		20-267 Spring. Eccentric Spring
Used on multiple models in different quantities.
$1.25 More Info
21-200T In Stock 21-200T
1181853 		21-200T Lever, Eccentric Lever Assembly $16.40 More Info
21A-200T In Stock 21A-200T
1192643 		21A-200T Washer, Eccentric Lever Washer $0.70 More Info
22-60CH In Stock 22-60CH
1181908 		22-60CH Screw, Eccentric Screw with washer (Sems) (Silver)

REPLACES ORIGINAL NUMBER 22-60, 22-113HN ON SOME REELS
114H Fits Half Frame Version.
$1.70 More Info
23-555 In Stock 23-555
1181950 		23-555 Nut, Handle Nut, Brass $1.40 More Info
24-113HN Discontinued. Still In Stock. Limit 2 24-113HN 24-113HN Handle, Chromed Bronze with Bent Blade, Rubberized Football Knob (Original)
FITS: Type [Q] Bridge/Sleeve

REPLACED BY PART NUMBER 24S-113HN or 24-200T
$39.40 More Info
24-200T In Stock 24-200T
1182011 		24-200T Handle, Chrome, Rubber Football Knob
FITS: Type [Q] Bridge/Sleeve
$41.35 More Info
24C-320LD In Stock 24C-320LD
1191337 		24C-320LD Cap ONLY, Handle Knob Cap, Chromed Tin $2.00 More Info
24S-113HN In Stock 24S-113HN
1192667 		24S-113HN Handle with Stainless Steel Flat Blade, Rubber Football-Shaped Knob
FITS: Type [Q] Bridge/Sleeve
$18.30 More Info
24S-US113 In Stock 24S-US113
1348355 		24S-US113 Handle with Stainless Steel Flat Blade, Rubber Football-Shaped Knob
FITS: Type [Q] Bridge/Sleeve
$18.30 More Info
26-113HN In Stock 26-113HN
1182117 		26-113HN Bearing Cup Assembly $12.25 More Info
26-200T In Stock 26-200T
1182123 		26-200T Bushing, Eccentric Bushing $0.60 More Info
26A-2.5FR In Stock 26A-2.5FR
1182133 		26A-2.5FR Bearing, Ball Bearing

MULTI USE See Description
Used on multiple models in different quantities.
$12.70 More Info
27-200T In Stock 27-200T
1191394 		27-200T Plate, Non-Handle Side Plate $107.50 More Info
29A-200T Discontinued. Still In Stock. Limit 1 29A-200T
029A200T 		29A-200T Washer, Spool, Thick Spool Washer $3.40 More Info
29B-200T Discontinued. Not Available 29B-200T 29B-200T Washer, Spool, Thin Spool Washer More Info
29L-200T In Stock 29L-200T
1191540 		29L-200T Spool, Aluminum (Gold Finish) $45.10 More Info
30-16VS In Stock 30-16VS
1182599 		30-16VS Stand $19.30 More Info
31T-15KG In Stock 31T-15KG
1182698 		31T-15KG Screw, Long (uses 2) $1.55 More Info
31TA-200T In Stock 31TA-200T
1182704 		31TA-200T Screw, Right Side (Frame)
Used on multiple models in different quantities.
$0.65 More Info
31TA-300T In Stock 31TA-300T
1191582 		31TA-300T Screw (Torq Head)

MULTI USE See Description
Used on multiple models in different quantities.
$0.75 More Info
31TB-300T In Stock 31TB-300T
1182705 		31TB-300T Screw, Non-Handle Side Screw (uses 4) $0.75 More Info
31TC-300 In Stock 31TC-300
1182697 		31TC-300T Screw, Handle Side Screw $0.85 More Info
32-15 In Stock 32-15
1182708 		32-15 Screw, Short, Pan Head

MULTI USE See Description
Used on multiple models in different quantities.
$0.75 More Info
33-16VS In Stock 33-16VS
1191592 		33-16VS Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey)

REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS
$16.55 More Info
33-113 Discontinued. Not Available 33-113 33-113 Clamp, Rod Clamp (Thick) (Graphite) (Black)

REPLACED BY PART NUMBER 33N-113
More Info
33C-16VS In Stock 33C-16VS
1191604 		33C-16VS KIT: Clamp, Rod, Graphite Clamp Kit With Two Wrenches $19.30 More Info
33C-16VSX In Stock 33C-16VSX
1191605 		33C-16VSX Kit Clamp, Rod Clamp (Thick) (Iron Alloy) (Grey) (9pc Kit with Wrench) $22.05 More Info
33N-113 In Stock 33N-113
1182754 		33N-113 Clamp, Rod Clamp with Side Ring (Thick) (Graphite) (Black)

REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS
$4.45 More Info
34-16VS In Stock 34-16VS
1182786 		34-16VS Screw ONLY, for Rod Clamp (uses 2) $4.15 More Info
34C-16VS In Stock 34C-16VS 34C-16VS Screw With Nuts, for Rod Clamp (uses 2) $7.90 More Info
35-60 In Stock 35-60
1182901 		35-60 Tongue, Click Tongue $1.40 More Info
36-300T In Stock 36-300T
1182999 		36-300T Button, Click Button $5.85 More Info
36A-300T In Stock 36A-300T
1183028 		36A-300T Washer, Click Button Washer $0.55 More Info
39-10 Discontinued. Not Available 39-10
1183183 		39-10 Screw, Short, Pan Head, Die Point (.303 in. overall, thread .215 in. long)

MULTI USE See Description
More Info
40-300T In Stock 40-300T
1183279 		40-300T Bearing Cup, Assembly, Non-Handle Side $12.65 More Info
44-300T In Stock 44-300T
1183444 		44-300T Screw

MULTI USE See Description

LIMITED QUANTITIES AVAILABLE
Used on multiple models in different quantities.
$0.85 More Info
44-4200 Discontinued. Still In Stock. Limit 2 44-4200
1183450 		44-4200 Screw

MULTI USE See Description

LIMITED QUANTITIES AVAILABLE

REPLACED BY PART NUMBER 16-910

Direct product replacement: 16-910 Screw, Short $0.60
$0.90 More Info
54B-130 In Stock 54B-130
1183869 		54B-130 Pin, Dowel Pin
Used on multiple models in different quantities.
$1.10 More Info
55-113H In Stock 55-113H
1183880 		55-113H Bearing, Ball Bearing

MULTI USE See Description
Used on multiple models in different quantities.
$9.95 More Info
55-113HN In Stock 55-113HN
1183881 		55-113HN Bearing, Ball Bearing (for Main Gear) $16.80 More Info
55-910 In Stock 55-910
1183894 		55-910 Bearing, Ball Bearing, for Spool

REPLACES OLD PART NUMBER 26-910
$11.05 More Info
60-320 In Stock 60-320
1183991 		60-320 Washer, for Idler Gear and Worm Bearing $1.20 More Info
62-309 In Stock 62-309
1184028 		62-309 Spring, Click Spring, Metal
113H Fits Frame Posts with a clicker and Half Frame Versions.
$2.50 More Info
63-16VS In Stock 63-16VS
1192076 		63-16VS Screw, Gear Stud Screw $2.50 More Info
63-209 In Stock 63-209
1184048 		63-209 Screw (for Metal Click Spring)

MULTI USE See Description
113H Fits Frame Posts with a clicker and Half Frame Versions.
$0.70 More Info
69B-600 1184129 In Stock 69B-600 1184129
DSS-VP2041 		69B-600 | DSS-VP2041 Ring, Retaining Ring (E-clip)
Used on multiple models in different quantities.
$1.10 More Info
86-300T In Stock 86-300T
1192170 		86-300T Washer, Drag, Metal, Keyed Metal Drag Washer ONLY $3.05 More Info
97-300T In Stock 97-300T
1184319 		97-300T Bridge, Gear Stud Bridge $2.50 More Info
98-300T In Stock 98-300T
1184347 		98-300T Sleeve, Gear Sleeve (comes with 102-60 pin) $59.55 More Info
98B-525 Discontinued. Still In Stock. Limit 2 98B-525
1184377 		98B-525 Bearing, Anti-Reverse Clutch Bearing $18.65 More Info
98S-525 In Stock 98S-525
1184395 		98S-525 Shaft, Clutch $5.00 More Info
101-80ST In Stock 101-80ST
1184405 		101-80ST Screw
Used on multiple models in different quantities.
$0.75 More Info
102-60 In Stock 102-60
1184408 		102-60 Pin, Gear Sleeve Pin ONLY $1.00 More Info
110A-555 In Stock 110A-555
1184442 		110A-555 Cap, Handle Nut Lock Cap $1.40 More Info
120-113H In Stock 120-113H
1184522 		120-113H 'O' ring (O-ring) $0.55 More Info
149-45 In Stock 149-45
1184702 		149-45 Nut, Clamp, Long, for Thick Clamps (uses 2)
Used with the graphite clamps 33-114H2, 33-340, 33N-113 and the iron alloy clamp 33i-113
$1.10 More Info
149-200 In Stock 149-200
1184706 		149-200 Nut, Clamp Hex Nut (uses 2) $0.60 More Info
158-300T Discontinued. Not Available 158-300T 158-300T Pin, Dog Pin (uses 2) More Info
168-50W In Stock 168-50W
1192371 		168-50W Wrench
Fits Reels: 30VSX, 50VSW2 50VSX, 70VS, GLD50ii, 112H2, 113L2, 113H2, 113H2-LH, 113H2LW, 113H2SP, 113HN, 330LD, 515MAG2, 525GS, 525MAG, 525MAG2, 525MAGT, 535GS, 535MAG, 545GS, 545MAG, 555GS, 555MAG, 975, 975CS, 975CSLD, 975LD, SQL12, SQL15, TRQ100, TRQ200, TRQ300
partimage
$1.10 More Info
168-965 In Stock 168-965
1192728 		168-965 Wrench
Fits 23-965 and 23-555 handle nut (see details for list of reels)
$0.70 More Info
183-200T In Stock 183-200T
1192414 		183-200T Frame, Housing Frame $238.70 More Info
205-300T In Stock 205-300T
1184970 		205-300T Washer, Gear Stud Washer $2.10 More Info
PEN XXSMRC In Stock PEN XXSMRC
1178860 		XXSMRC Cover, Reel Cover, Conventional, Size Extra-Extra Small

FITS REELS:
9M, 109M, 209M
110, 111, 112, 112H, 112H2
140L, 145, 146L, 220
310GT, 310GTi, 310GT2, 320GT, 320GTi, 320GT2, 320LD
500L, 501, 525, 525GS, 525MAG, 535, 535GS, 545, 545GS, 555, 555GS
965, 975, 975CS, 975CSLD, 975SLD
DFN20LW, DFN25LW, DFN30
FTH12, FTH15, FTH15LD2, FTH15LD, FTH15LW, FTH20LW, FTH25N, FTH25NLD, FTH25NLD2, FTH25LW, FTH30, FTH30LD, FTH30LD2, FTH30LD2LH, FTH25NLD2, FTH30LD, FTH40
SQL12, SQL15, SQL15LW, SQL20LW, SQL25N, SQL30, SQL30LD, SQL30LW, SQL40, SQL40LD
TRQ15LD2, TRQ25NLD2, TRQ30LD2, TRQ12, TRQ15, TRQ25, TRQ30, TRQ40, TRQ100, TRQ100LD, TRQ200
WAR15LW, WAR15LWLH, WAR20LW, WAR20LWLH, WAR30LW
WAR20N, WAR30

$14.99 More Info
33-TRQ In Stock 33-TRQ
1290729 		33-TRQ Clamp, Rod Clamp (Thick) (Aluminum) (Black) $1.25 More Info
33-TRQS Backordered. New Item Not Yet Stocked 33-TRQS
1365544 		33-TRQS Clamp, Rod Clamp (Thick) (Aluminum) (Silver) More Info
Trusted SSL Certificate
