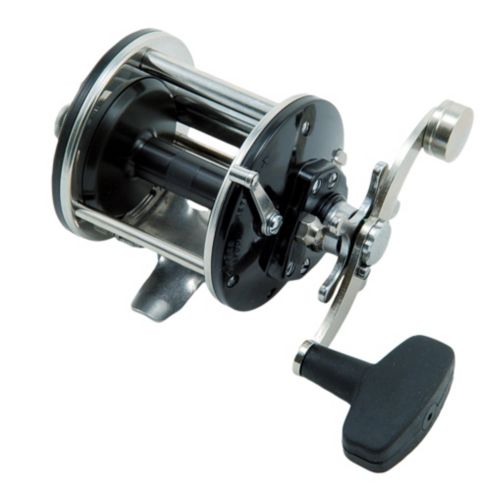

PENN 9M Parts List

Cart Login or Create an Account

FREE SHIPPING OVER $200* $100*

USPS RATES CHANGED 7/1/23

Updated as of 7/15/23 3:40pm, INCLUDES OUR ECONOMY AND STANDARD RATES

Mono Cap (yds/lb)	Max Drag	Gear Ratio	Line Retrieve
275/15	10 lbs	3.4:1	16(in)

Mono Cap
(yds/lb)

Max Drag

Gear Ratio

Line Retrieve

275/15

10 lbs

3.4:1

16(in)

SKU	Name	Our Price
9M-LH	9M Convert Standard To Left Hand Parts Conversion NO longer possible, repair parts Only	$0.00	More Info
1-9 001-1180397	1-9 Plate, Handle Side Plate, Black	$18.05	More Info
2-109 002-109	2-109 Side Ring (Chrome) MULTI USE See Description Direct product replacement: 2N-109 Ring, Handle Side Ring (Stainless Steel) $6.05		More Info
2N-109 002N-1180607▲	2N-109 Ring, Handle Side Ring (Stainless Steel)	$6.05	More Info
3-9 003-1180669▲	3-9 Bridge with Sleeve	$11.35	More Info
4-155 004-1180772♦	4-155 Washer, Hard Fiber Spacer (Under Main Gear)	$1.30	More Info
5-109 005-1180841▲	5-109 Gear, Main Gear LIMITED QUANTITIES AVAILABLE	$9.85	More Info
6-155 006-1180915◉	6-155 Washer, Drag Washer HT-100™ MULTI USE See Description Used on multiple models in different quantities.	$1.30	More Info
6-155SP 006SP-1180392◉▭	6-155SP Kit, Drag Washers, Drag Washer Kit HT-100™ with Metals (6 pcs)	$11.00	More Info
6-155SD CSD-006-155SD▲	6-155SD Set, Drag Washers, CARBONTEX by SmoothDrag (Custom)	$8.80	More Info
7C-155 007C-1181047▲	7C-155 Washer, Drag, Metal Drag Washers (SET of 3)	$7.35	More Info
8-60CH 008-1181056☀	8-60CH Washer, Original Chrome Tension Spring Washer (Belleville) Used on multiple models in different quantities.	$1.50	More Info
9-60 9-60	9-60 Sleeve, Spacing Sleeve - (optional variations) Variations allow for more/less play in handle - see description.		More Info
10-180 010-1181189	10-180 Star Drag Wheel (COARSE Thread)	$8.20	More Info
11-9 011-1181224☀	11-9 Jack, Eccentric Jack (Brass)	$1.90	More Info
12-9 012-1181256☀	12-9 Yoke, Pinion Yoke (Brass)	$1.50	More Info
13-9 013-1181278☀	13-9 Gear, Pinion Gear (Steel)	$11.00	More Info
14-9 014-1181385☀	14-9 Spring, Dog Spring	$2.50	More Info
15-9 015-1181417☀	15-9 Dog	$1.30	More Info
16-9 016-1181564☀	16-9 Screw, Long, 5/40x9/16 thread (uses 2) Used on multiple models in different quantities.	$1.30	More Info
17-9 017-1181593☀	17-9 Screw, Upper Bridge Screw, 5/40x9/16 thread (uses 2)	$1.30	More Info
18-9 018-1181607☀	18-9 Spring, Clutch Spring (uses 2)	$1.30	More Info
19-9 019-1181638☀	19-9 Eccentric	$4.90	More Info
20-109 020-1181764☀	20-109 Spring, Eccentric Spring	$1.30	More Info
21-109 021-1181843☀	21-109 Lever, Eccentric Lever	$2.85	More Info
22-109 022-1181912☀	22-109 Screw (SEMS 540 x 156) MULTI USE See Description Used on multiple models in different quantities.	$1.90	More Info
23-60 023-1181935☀	23-60 Screw, Large MULTI USE See Description	$4.55	More Info
24N-160 024N-160	24N-160 Handle, Flat Rubberized Knob FITS: Type [A] Bridge/Sleeve REPLACED BY PART NUMBER 24S-310 Direct product replacement: 24S-310 Handle, Brushed Stainless, Flat Rubberized Ergo Knob $0.00		More Info
24NC-160 024NC-24NC-160	24NC-160 Handle 24S-310 Handle, Brushed Stainless, Flat Rubberized Ergo Knob $0.00		More Info
24S-310 024S-1191342	24S-310 Handle, Brushed Stainless, Flat Rubberized Ergo Knob FITS: Type [A] Bridge/Sleeve REPLACES ORIGINAL PART NUMBER 24-155, 24N-160, 24N-310, 24-310 ON SOME REELS Direct product replacement: 24SN-310 Handle, Brushed Stainless, Football Rubberized Knob $22.30		More Info
26-9 026-1182108☀	26-9 Bearing, Handle Side Bearing	$6.45	More Info
27-9 027-1182148▲	27-9 Plate, Non-Handle Side Plate	$16.10	More Info
28-109 028-1182367▲	28-109 Ring, Side Ring (Chrome)	$4.00	More Info
29L-9 029L-1182472	29L-9 Spool, Aluminum (Black)	$38.30	More Info
30N-9 030N-1182647	30N-9 Stand REPLACES ORIGINAL NUMBER 30-109, 30-109S, 30-109F, 30-9 ON SOME OLDER REELS		More Info
31-2.5FR 031-1182662☀	31-2.5FR Screw MULTI USE See Description	$1.30	More Info
32-2 032-1182706☀	32-2 Screw Used on multiple models in different quantities.	$1.30	More Info
35-155 035-1182919☀	35-155 Tongue, Click Tongue	$4.60	More Info
36-60CH 036-1182980☀	36-60CH Button, Click Button	$1.80	More Info
37-109 037-1183064☀	37-109 Post, Frame Post REPLACES ORIGINAL PART NUMBER 37-77 ON SOME REELS Used on multiple models in different quantities.	$3.85	More Info
39-1 039-1183177☀	39-1 Screw, Slotted MULTI USE See Description Used with orignal 24-30S handle Used on multiple models in different quantities.	$1.30	More Info
40-109 040-1183269☀	40-109 Bearing, Left Side Bearing	$5.85	More Info
41-109 041-1183329☀	41-109 Spring, Bearing Spring	$1.90	More Info
42-109 042-1183345☀	42-109 Worm REPLACES ORIGINAL NUMBER 42-9 ON SOME REELS	$4.25	More Info
43-9 043-1183368☀	43-9 Bearing, Worm, Handle Side	$2.60	More Info
43-109 043-1183375☀	43-109 Bearing, Worm Bearing MULTI USE See Description	$2.60	More Info
45-9 045-1183471☀	45-9 Worm Gear	$4.60	More Info
46-9 046-1183544▲	46-9 Line Guide	$5.45	More Info
46-9C 046-9C▲	46-9C Line Guide Assembly (4 Pc. Set)	$13.20	More Info
47-109 047-1183614♦	47-109 Pawl, Line Guide Pawl	$1.90	More Info
48-109 048-1183699☀	48-109 Screw, Cover, Pawl Cover Screw Cap	$1.80	More Info
50-109 050-1183752☀	50-109 Shield, Worm Shield	$4.60	More Info
58-109 058-1183948☀	58-109 Post, Slotted Post	$5.50	More Info
62-209 062-1184026☀	62-209 Spring, Click, Metal Click Spring MULTI USE See Description	$2.65	More Info
62M-209 062M-209	62M-209 Spring, Click Spring (Plastic) Direct product replacement: 62-209 Spring, Click, Metal Click Spring $2.65	$3.50	More Info
63-209 063-1184048☀	63-209 Screw (for Metal Click Spring) MULTI USE See Description 113H Fits Frame Posts with a clicker and Half Frame Versions.	$1.30	More Info
64-9 064-1184060▲	64-9 Gear, Idler Gear	$4.80	More Info
65-209 065-1184084☀	65-209 Screw, Gear, Idler Gear Screw	$1.30	More Info
66-9 066-1184088	66-9 Level Wind Drive Gear	$5.50	More Info
67-9 067-1184102☀	67-9 Ring, Lock Ring	$1.30	More Info
98-155 098-1184340▲	98-155 Sleeve, Gear Sleeve (comes with pin) (Brass)	$5.50	More Info
	Custom Sleeves Replacing: 98-155 Stainless Steel Gear Sleeves by other manufacturers. Click link to view options.
110-60 110-1184437♦	110-60 Screw, Handle Lock Screw REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS	$1.30	More Info
168-TANI CUU-168-TANi▭	168-TANI Heavy Duty Penn Handle Nut Wrench by Alan Tani Aftermarket Part - Not Manf. by Penn (see details for list of reels) Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts	$20.00	More Info
168-9 168-1184800	168-9 Wrench Fits 23-60 knurled nut (see details for list of reels) REPLACED BY PART NUMBER 168-60 or 168-TANI Direct product replacement: 168-60 Wrench $1.30		More Info
168-60 168-1184802☘	168-60 Wrench Fits 23-60, 23-16S knurled nuts (See details for list of reels)	$1.30	More Info

Availability

SKU

Name

Our Price

9M-LH

9M Convert Standard To Left Hand Parts

Conversion NO longer possible, repair parts Only

$0.00

More Info

1-9
001-1180397

1-9 Plate, Handle Side Plate, Black

$18.05

More Info

2-109
002-109

2-109 Side Ring (Chrome)

MULTI USE See Description

Direct product replacement: 2N-109 Ring, Handle Side Ring (Stainless Steel) $6.05

More Info

2N-109
002N-1180607▲

2N-109 Ring, Handle Side Ring (Stainless Steel)

$6.05

More Info

3-9
003-1180669▲

3-9 Bridge with Sleeve

$11.35

More Info

4-155
004-1180772♦

4-155 Washer, Hard Fiber Spacer (Under Main Gear)

$1.30

More Info

5-109
005-1180841▲

5-109 Gear, Main Gear

LIMITED QUANTITIES AVAILABLE

$9.85

More Info

6-155
006-1180915◉

6-155 Washer, Drag Washer HT-100™

MULTI USE See Description

Used on multiple models in different quantities.

$1.30

More Info

6-155SP
006SP-1180392◉▭

6-155SP Kit, Drag Washers, Drag Washer Kit HT-100™ with Metals (6 pcs)

$11.00

More Info

6-155SD
CSD-006-155SD▲

6-155SD Set, Drag Washers, CARBONTEX by SmoothDrag (Custom)

$8.80

More Info

7C-155
007C-1181047▲

7C-155 Washer, Drag, Metal Drag Washers (SET of 3)

$7.35

More Info

8-60CH
008-1181056☀

8-60CH Washer, Original Chrome Tension Spring Washer (Belleville)

Used on multiple models in different quantities.

$1.50

More Info

9-60
9-60

9-60 Sleeve, Spacing Sleeve - (optional variations)

Variations allow for more/less play in handle - see description.

More Info

10-180 Discontinued. Still In Stock. Limit 1

10-180
010-1181189

10-180 Star Drag Wheel (COARSE Thread)

$8.20

More Info

11-9
011-1181224☀

11-9 Jack, Eccentric Jack (Brass)

$1.90

More Info

12-9
012-1181256☀

12-9 Yoke, Pinion Yoke (Brass)

$1.50

More Info

13-9
013-1181278☀

13-9 Gear, Pinion Gear (Steel)

$11.00

More Info

14-9 Discontinued. Still In Stock. Limit 5

14-9
014-1181385☀

14-9 Spring, Dog Spring

$2.50

More Info

15-9
015-1181417☀

15-9 Dog

$1.30

More Info

16-9
016-1181564☀

16-9 Screw, Long, 5/40x9/16 thread (uses 2)

Used on multiple models in different quantities.

$1.30

More Info

17-9
017-1181593☀

17-9 Screw, Upper Bridge Screw, 5/40x9/16 thread (uses 2)

$1.30

More Info

18-9
018-1181607☀

18-9 Spring, Clutch Spring (uses 2)

$1.30

More Info

19-9 Discontinued. Still In Stock. Limit 2

19-9
019-1181638☀

19-9 Eccentric

$4.90

More Info

20-109
020-1181764☀

20-109 Spring, Eccentric Spring

$1.30

More Info

21-109
021-1181843☀

21-109 Lever, Eccentric Lever

$2.85

More Info

22-109
022-1181912☀

22-109 Screw (SEMS 540 x 156)

MULTI USE See Description

Used on multiple models in different quantities.

$1.90

More Info

23-60
023-1181935☀

23-60 Screw, Large

MULTI USE See Description

$4.55

More Info

24N-160
024N-160

24N-160 Handle, Flat Rubberized Knob

FITS: Type [A] Bridge/Sleeve

REPLACED BY PART NUMBER 24S-310

Direct product replacement: 24S-310 Handle, Brushed Stainless, Flat Rubberized Ergo Knob $0.00

More Info

24NC-160
024NC-24NC-160

24NC-160 Handle

24S-310 Handle, Brushed Stainless, Flat Rubberized Ergo Knob $0.00

More Info

24S-310
024S-1191342

24S-310 Handle, Brushed Stainless, Flat Rubberized Ergo Knob

FITS: Type [A] Bridge/Sleeve

REPLACES ORIGINAL PART NUMBER 24-155, 24N-160, 24N-310, 24-310 ON SOME REELS

Direct product replacement: 24SN-310 Handle, Brushed Stainless, Football Rubberized Knob $22.30

More Info

26-9
026-1182108☀

26-9 Bearing, Handle Side Bearing

$6.45

More Info

27-9
027-1182148▲

27-9 Plate, Non-Handle Side Plate

$16.10

More Info

28-109
028-1182367▲

28-109 Ring, Side Ring (Chrome)

$4.00

More Info

29L-9
029L-1182472

29L-9 Spool, Aluminum (Black)

$38.30

More Info

30N-9
030N-1182647

30N-9 Stand

REPLACES ORIGINAL NUMBER 30-109, 30-109S, 30-109F, 30-9 ON SOME OLDER REELS

More Info

31-2.5FR
031-1182662☀

31-2.5FR Screw

MULTI USE See Description

$1.30

More Info

32-2
032-1182706☀

32-2 Screw

Used on multiple models in different quantities.

$1.30

More Info

35-155
035-1182919☀

35-155 Tongue, Click Tongue

$4.60

More Info

36-60CH
036-1182980☀

36-60CH Button, Click Button

$1.80

More Info

37-109
037-1183064☀

37-109 Post, Frame Post

REPLACES ORIGINAL PART NUMBER 37-77 ON SOME REELS

Used on multiple models in different quantities.

$3.85

More Info

39-1
039-1183177☀

39-1 Screw, Slotted

MULTI USE See Description
Used with orignal 24-30S handle

Used on multiple models in different quantities.

$1.30

More Info

40-109
040-1183269☀

40-109 Bearing, Left Side Bearing

$5.85

More Info

41-109
041-1183329☀

41-109 Spring, Bearing Spring

$1.90

More Info

42-109
042-1183345☀

42-109 Worm

REPLACES ORIGINAL NUMBER 42-9 ON SOME REELS

$4.25

More Info

43-9
043-1183368☀

43-9 Bearing, Worm, Handle Side

$2.60

More Info

43-109
043-1183375☀

43-109 Bearing, Worm Bearing

MULTI USE See Description

$2.60

More Info

45-9
045-1183471☀

45-9 Worm Gear

$4.60

More Info

46-9
046-1183544▲

46-9 Line Guide

$5.45

More Info

46-9C
046-9C▲

46-9C Line Guide Assembly (4 Pc. Set)

$13.20

More Info

47-109
047-1183614♦

47-109 Pawl, Line Guide Pawl

$1.90

More Info

48-109
048-1183699☀

48-109 Screw, Cover, Pawl Cover Screw Cap

$1.80

More Info

50-109
050-1183752☀

50-109 Shield, Worm Shield

$4.60

More Info

58-109
058-1183948☀

58-109 Post, Slotted Post

$5.50

More Info

62-209
062-1184026☀

62-209 Spring, Click, Metal Click Spring

MULTI USE See Description

$2.65

More Info

62M-209 Discontinued. Still In Stock. Limit 1

62M-209
062M-209

62M-209 Spring, Click Spring (Plastic)

Direct product replacement: 62-209 Spring, Click, Metal Click Spring $2.65

$3.50

More Info

63-209
063-1184048☀

63-209 Screw (for Metal Click Spring)

MULTI USE See Description

113H Fits Frame Posts with a clicker and Half Frame Versions.

$1.30

More Info

64-9
064-1184060▲

64-9 Gear, Idler Gear

$4.80

More Info

65-209
065-1184084☀

65-209 Screw, Gear, Idler Gear Screw

$1.30

More Info

66-9
066-1184088

66-9 Level Wind Drive Gear

$5.50

More Info

67-9
067-1184102☀

67-9 Ring, Lock Ring

$1.30

More Info

98-155
098-1184340▲

98-155 Sleeve, Gear Sleeve (comes with pin) (Brass)

$5.50

More Info

Custom Sleeves Replacing: 98-155

Stainless Steel Gear Sleeves by other manufacturers. Click link to view options.

110-60
110-1184437♦

110-60 Screw, Handle Lock Screw

REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS

$1.30

More Info

168-TANI
CUU-168-TANi▭

168-TANI Heavy Duty Penn Handle Nut Wrench by Alan Tani

Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts

$20.00

More Info

168-9
168-1184800

168-9 Wrench

Fits 23-60 knurled nut (see details for list of reels)
partimage

REPLACED BY PART NUMBER 168-60 or 168-TANI

Direct product replacement: 168-60 Wrench $1.30

More Info

168-60
168-1184802☘

168-60 Wrench

Fits 23-60, 23-16S knurled nuts (See details for list of reels)

$1.30

More Info

FREE SHIPPING OVER $200* $100*

USPS RATES CHANGED 7/1/23

Penn 9, 9M Peerless Reel

Model Specs:

Welcome!
