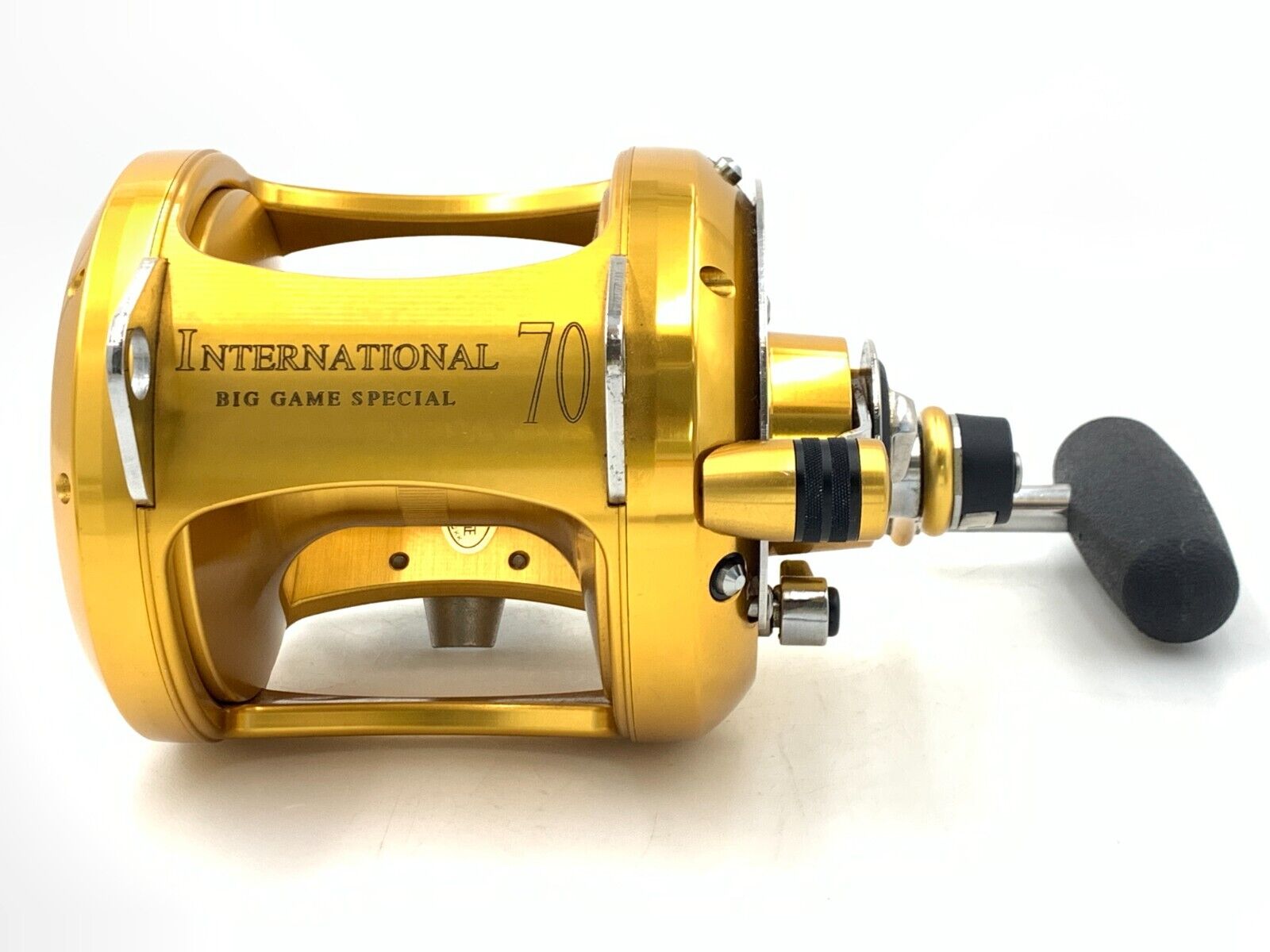

Model Specs:

More Info
  • High strength stainless steel gears
  • Powerful lever drag system
  • Push button two-speed shifting
  • Machined gold anodized one piece frame
  • Shielded stainless steel ball bearings
  • Forged aluminum spool
  • Extra large T-Bar type fighting handle
  • Locking pre-set drag knob
  • Stainless steel reel stand
  • Black anodized aluminum ringed rod clamp
  • Harness lugs for fighting harnesses
  • Loud, easy-to-service clicker
  • Made in the USA
Mono Cap
(yds/lb)
Braid Cap
(yds/lb)
Bearings Max Drag STRIKE/FULL Gear Ratio Line Retrieve
650/80
525/100
420/130
1750/130
1600/150
1300/200
4 35lbs. / 45lbs. 3.1:1 / 1.4:1 39/18
Have found photos and features info for this reel, but no schematic for parts at this time.

WIP 1/19/23 ~Mo

What we know at this time

Per Eric at Cals2speed
70 Big Game was their 1st generation attempt
70VS was the 2nd generation (much better reel)

Made for 1 year? around 1998 or 1999
70VS first version came out in 2002
Work in Progress
NO SCHEMATICS YET! Work in Progress WIP

MysticParts.com in the process of updating this section to add parts, schematics, etc.

If you don't see something, check back again later or contact us via the link at the bottom of the website.
NOTE: For parts that may be used in common with other reels, try using the search box at the top of the website.
~Miz Mo

$0.00
1-70
001-1180428
1-70 Plate, Handle Side Plate Assembly

This part will no longer be manufactured by Penn; Limited Quantities Available.

$228.70
4-70
004-1180756☀
4-70 Washer, Cam Thrust Washer

Used on multiple models in different quantities.

$2.10
15-50
015-1181425☀
$1.35
18C-15KG
018C-1181632☀
18C-15KG Spring

Used on multiple models in different quantities.

$1.30
22-109
022-1181912☀
22-109 Screw (SEMS 540 x 156)

MULTI USE See Description

Used on multiple models in different quantities.

$1.90
24-70
024-70
24-70 Handle, Gold Blank

REPLACED BY PART NUMBER 24B-70VS

Direct product replacement: 24B-70VS Handle, Chrome, Large Rubberized Knob $119.50

$0.00
24B-70VS
024B-1182088
24B-70VS Handle, Chrome, Large Rubberized Knob

FITS: Type [R] Bridge/Sleeve

REPLACES ORIGINAL PART NUMBER 24-70, 24-70VS

$119.50
CTE-TB-P70
TB-P70
TB-P70 MK-II T-Bar™ Ergo Power Handle

FITS: Type [R] Bridge/Sleeve

$59.95
30-50T
030-1182605
$31.80
31T-70
031T-1182700☀
31T-70 Screw, Short, Torq Head

Used on multiple models in different quantities.

$1.30
31T-80
031T-1182701☀
31T-80 Screw, Frame

Used on multiple models in different quantities.

$1.30
33-70
033-1182753
33-70 Rod Clamp, Aluminum, Black with Ring

REPLACED BY PART NUMBER 33N-70

$0.00
33N-70
033N-1191619☘
33N-70 Rod Clamp, Anodized Cast Iron with Ring

REPLACES ORIGINAL NUMBER 33-70 ON SOME REELS

$25.70
34-70
034-1182793▲
34-70 Screw, Rod Clamp Screw ONLY (uses 2)

USED WITH CAST IRON CLAMP 33N-70

$6.95
35-70
035-1182902
$7.10
36-700
036-1183014☀
36-700 Nut, Locking Nut

REPLACES ORIGINAL NUMBER 36-710 ON SOME REELS

$2.30
36N-50
036N-1183047☀
36N-50 Button, Click Button (ONLY) (New Version)

MULTI USE See Description

REPLACES ORIGINAL NUMBER 36N-50 ON SOME REELS

$20.05
36S-80ST
036S-1183051☀
$1.30
39-1
039-1183177☀
39-1 Screw, Slotted


MULTI USE See Description
Used with orignal 24-30S handle

Used on multiple models in different quantities.

$1.30
38-710
038-1183157☀
38-710 Nut

MULTI USE See Description

$1.30
46A-704
046A-1183586☀
46A-704 Screw (Pan Head)

MULTI USE See Description

$1.30
50-80ST
050-1183749★
$5.50
55-80
055-1183878
55-80 Bearing, Ball Bearing

Used on multiple models in different quantities.
Direct product replacement: 55S-80 Ball Bearing $10.60

$0.00
62-50
062-1184022☀
$1.35
63-30T
063-1184045☀
63-30T Screw

Used on multiple models in different quantities.

$1.30
69B-50
069B-1184125☀
69B-50 Ring, Retaining Ring (E-Clip)

Used on multiple models in different quantities.

$1.30
81-70
081-1184205
$13.55
88-70
088-1184284
88-70 Ball, Knob, Preset Ball Knob

Part of 124L-30VS Assembly on the 30VSW (Older) reel.

$1.30
95B-70
095B-1184312☀
95B-70 Plate, Retaining Plate

MULTI USE See Description

$2.55
101-30
101-1184403☀
101-30 Screw, Torx Head Screw

Used on multiple models in different quantities.

$1.30
117A-70
117A-70
$38.50
117D-70
117D-117D-70
117D-70 Drive Plate Assembly with HT-100™ Washer

REPLACED BY PART NUMBER 117DN-70

Direct product replacement: 117DN-70VS Drive Plate Assembly with Dura-Drag™ Washer $104.65

$0.00
117AN-70
117AN-1184496
$78.80
117DN-70
117DN-1184505
117DN-70 Drive Plate Assembly with Dura-Drag™ Washer

REPLACES ORIGINAL NUMBER 117D-70 ON SOME REELS

Direct product replacement: 117DN-70VS Drive Plate Assembly with Dura-Drag™ Washer $104.65

$0.00
117DN-70VS
117DN-1184503▭
117DN-70VS Drive Plate Assembly with Dura-Drag™ Washer

REPLACES ORIGINAL NUMBER 117D-70, 117DN-70, 117D-30, 117DN-30 ON SOME REELS

$104.65
119-15KG
119-1184514★
$12.80
134-70
134-1184618
$26.40
141-70
141-1184656
$30.60
143-70
143-1184674★
$13.15
162-50
162-1184795☀
162-50 Spring

Used on multiple models in different quantities.

$1.30
171-15KG
171-1184811★
$8.20
183-70BGS [Not Available]
183-#######
$0.00
264-30T
264-1185227▲
$2.40
55S-80
055S-1435255▲
$10.60
