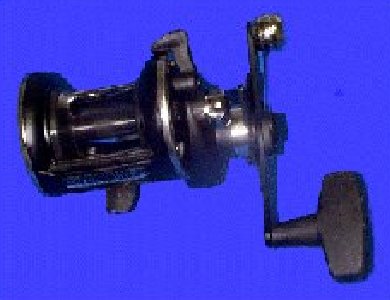

Penn 525GS GS Series Reel

View / Print Schematic Request a Schematic View / Print Owners Manual Buy Reel Buy Reel Cover

Model Specs:

More Info
  • Lightweight, one piece graphite composite frame.
  • Corrosion resistant metal inserts in the spacer bars for high strength and precision alignment.
  • Durable black anodized aluminum spool.
  • Stainless steel pinion gears.
  • Bronze alloy main gears.
  • Stainless steel sealed ball bearings.
  • Stainless Steel or aluminum side plate rings for strength and good looks.
  • HT-100 multi-disc star enhanced drag system.
  • High speed gear ratios for fast cranking lures.
  • Gear kits to change retrieves to 4.25-1, 5.3-1 or 6-1
  • Heavy duty replaceable clicker system.
  • Graphite composite free spool lever.
  • Spool tension control.
  • High strength, low profile, graphite composite rod clamp.
Mono Cap
(yds/lb)		 Bearings Gear Ratio
275/15 4 4.25:1
Availability SKU Name Our Price
REEL DISCONTINUED BY PENN   REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

525GS Design Change for Gear/Drag Washer System 525GS 525GS Design Change for Gear/Drag Washer System

Must Read!
$0.00 More Info
1-525 Discontinued. Not Available 1-525
001-1180525 		1-525 Plate, Handle Side Plate More Info
2-525 Discontinued. Not Available 2-525
002-1180645 		2-525 Ring, Handle Side Ring More Info
4-60 In Stock 4-60
004-1180755♦ 		4-60 Washer, Hard Fiber Spacer (Under Main Gear) $1.15 More Info
5-525 Discontinued. Not Available 5-525
005-5-525 		5-525 Gear, Main Gear (Older Version)
Direct product replacement: 5-525MAG Gear, Main Gear $25.80
More Info
5-525MAG In Stock 5-525MAG
005-1180874 		5-525MAG Gear, Main Gear $25.80 More Info
6-49 In Stock 6-49
006-1180904◉ 		6-49 Washer, Drag Washer, HT-100™ (uses 3) (Older Version) $1.85 More Info
6-525MAG Discontinued. Not Available 6-525MAG
006-525MAG 		6-525MAG Washer, Drag Washer HT100

REPLACED BY PART NUMBER 6N-525MAG
Used on multiple models in different quantities.
More Info
6N-525MAG In Stock 6N-525MAG
006N-1180922◉ 		6N-525MAG Washer, Drag Washer HT100
Used on multiple models in different quantities.
$2.70 More Info
7-49 Discontinued. Still In Stock. Limit 2 7-49
007-1181005 		7-49 Washer, Drag, Metal Earred Drag Washer ONLY
Used on multiple models in different quantities.
$2.00 More Info
7C-49 In Stock 7C-49
007C-1181040▲ 		7C-49 Washer, Drag, Metal Drag Washers (SET of 3) $5.95 More Info
8-60B Discontinued. Still In Stock. Limit 10 8-60B
008-60B♦ 		8-60B Washer, Black Tension Spring Washer (Belleville)
Used on multiple models in different quantities.
$1.35 More Info
8-60CH In Stock 8-60CH
008-1181056☀ 		8-60CH Washer, Original Chrome Tension Spring Washer (Belleville)
Used on multiple models in different quantities.
$1.35 More Info
10-525 Discontinued. Not Available 10-525
010-11181201 		10-525 Drag Star

REPLACED BY PART NUMBER 10N-525
Direct product replacement: 10N-525 Drag Star $9.95
More Info
10N-525 In Stock 10N-525
010N-1181201 		10N-525 Drag Star

REPLACES ORIGINAL NUMBER 10-525 ON SOME REELS
$9.95 More Info
11-525 In Stock 11-525
011-1181247 		11-525 Jack, Eccentric Jack (Brass) $1.70 More Info
12-555 In Stock 12-555
012-1181271☀ 		12-555 Yoke, Pinion Yoke (Brass) $1.70 More Info
12-FTHSD12 In Stock 12-FTHSD12
012-1318919 		12-FTHSD12 Yoke, Pinion Yoke (Stainless) $1.70 More Info
13-545 In Stock 13-545
013-1181351 		13-545 Gear, Pinion Gear $16.90 More Info
18-505 In Stock 18-505
018-1181623☀ 		18-505 Washer, Tension Spring Washer
Used on multiple models in different quantities.
$2.00 More Info
18-525 In Stock 18-525
018-1181624☀ 		18-525 Spring, Clutch Spring
Used on multiple models in different quantities.
$1.50 More Info
19-525 In Stock 19-525
019-1181698 		19-525 Eccentric $4.35 More Info
19S-525 In Stock 19S-525
019S-1192607☀ 		19S-525 Eccentric (Newer Style) $4.70 More Info
20-525 In Stock 20-525
020-1181785☀ 		20-525 Spring. Eccentric Spring $3.40 More Info
20-722 In Stock 20-722
020-1181792☀ 		20-722 Bearing, Ball Bearing
Used on multiple models in different quantities.
$13.30 More Info
21-525 Discontinued. Still In Stock. Limit 2 21-525
021-1181871☀ 		21-525 Lever, Eccentric Lever $5.05 More Info
21S-525 In Stock 21S-525
021S-1192655☀ 		21S-525 Lever, Eccentric Lever (Newer Style) $7.65 More Info
22-310 In Stock 22-310
022-1181915☀ 		22-310 Screw, Eccentric Screw (Sems) $1.35 More Info
23-555 In Stock 23-555
023-1181950☀ 		23-555 Nut, Handle Nut, Brass $1.65 More Info
24-525 Discontinued. Not Available 24-525
024-525 		24-525 Handle, Black Blade, Flat Rubberized Knob
FITS: Type [E] Bridge/Sleeve

REPLACED BY PART NUMBER 24-555
Direct product replacement: 24-555 Handle, Chrome Blade, Flat Rubberized Knob $0.00
More Info
24-555 Discontinued. Not Available 24-555
024-1182048 		24-555 Handle, Chrome Blade, Flat Rubberized Knob
FITS: Type [E] Bridge/Sleeve
More Info
26-25 In Stock 26-25
026-1182111☀ 		26-25 Bearing, Ball Bearing (Handle Side) (Old system)
$14.60 More Info
26-555 In Stock 26-555
026-1182127 		26-555 Bushing, Handle Side Bushing $1.60 More Info
26B-555 Discontinued. Still In Stock. Limit 1 26B-555
026B-1182140☀ 		26B-555 Cap, Spool Tension Cap (CAP ONLY) $5.85 More Info
27-525 In Stock 27-525
027-1182249 		27-525 Plate, Non-Handle Side Plate $12.60 More Info
28-525 Discontinued. Still In Stock. Limit 1 28-525
028-1182397 		28-525 Ring, Non-Handle Side Ring

LIMITED QUANTITIES AVAILABLE

REPLACED BY PART NUMBER 28-525MAG
Direct product replacement: 28-525MAG Ring, Non-Handle Side Ring $0.00
$8.65 More Info
29L-525 In Stock 29L-525
029L-1182550 		29L-525 Spool, Aluminum (Black) $40.60 More Info
32-15 In Stock 32-15
032-1182708☀ 		32-15 Screw, Short, Pan Head
Used on multiple models in different quantities.
$1.15 More Info
32-310 In Stock 32-310
032-1182722☀ 		32-310 Screw
Used on multiple models in different quantities.
$1.15 More Info
33-16VS In Stock 33-16VS
033-1191592▲ 		33-16VS Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey)

REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS
$19.90 More Info
33-TRQ In Stock 33-TRQ
033-1290729▲ 		33-TRQ Clamp, Rod Clamp (Thick) (Aluminum) (Black) $1.50 More Info
33-TRQS In Stock 33-TRQS
033-1365544▲ 		33-TRQS Clamp, Rod Clamp (Thick) (Aluminum) (Silver) $8.50 More Info
33-113 Discontinued. Not Available 33-113
033-113 		33-113 Clamp, Rod Clamp (Thick) (Graphite) (Black)

REPLACED BY PART NUMBER 33N-113
More Info
33-113SP Discontinued. Not Available 33-113SP
033-113SP 		33-113SP Kit, Clamp, Rod Clamp (Thick) (Graphite) (Black) (7pc Kit) More Info
33-200 In Stock 33-200
033-1182759▲ 		33-200 Clamp, Rod Clamp (Classic Thin Style) (Metal) $5.25 More Info
33C-113 In Stock 33C-113
033C-1182773▭ 		33C-113 Rod Clamp KIT: (Thick) Graphite Clamp with Side Ring, Studs, Nuts, Wrench $12.50 More Info
33C-200 In Stock 33C-200
033C-1191611▭ 		33C-200 Rod Clamp KIT: (Classic Thin Style) Metal Clamp with Studs, Nuts, Wrench
113H Fits All Versions.
$15.25 More Info
33C-535 In Stock 33C-535
033C-1191613 		33C-535 Rod Clamp KIT: Graphite Clamp with Side Ring, Studs, Nuts, Cap Nuts, Two Wrenches $14.90 More Info
33CR-200 Discontinued. Not Available 33CR-200
033CR-200 		33CR-200 Kit, Clamp, Rod Clamp with Ring (Classic Thin Style) (Brass) (Chrome) (8pc Kit with Wrench)
113H Fits both Frame Posts Versions.
More Info
33i-113SP In Stock 33i-113SP
033i-113SP 		33i-113SP Kit Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey) (7pc Kit) $29.00 More Info
33R-200 Backordered. Not Available 33R-200
033R-1182783 		33R-200 Clamp, Rod, Metal, Ringed (Classic Thin Style) (Optional) (Made in China, Brushed Stainless) More Info
33N-113 In Stock 33N-113
033N-1182754☘ 		33N-113 Clamp, Rod Clamp with Side Ring (Thick) (Graphite) (Black)

REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS
$5.35 More Info
33N-113SP In Stock 33N-113SP
033N-1180382▭ 		33N-113SP Clamp, Rod, KIT: (Thick) Graphite Clamp with Studs and Nuts $13.25 More Info
34-45 In Stock 34-45
034-1182788▲ 		34-45 Screw, Rod Clamp Screw (Shorter for Thick Clamps) ONLY (uses 2)

This is just the stud

114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$1.35 More Info
34C-45 In Stock 34C-45
034C-1182862▲ 		34C-45 Screw With Nuts, for Thick Style Rod Clamp (uses 2)
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$5.30 More Info
34-200 In Stock 34-200
034-1182810▲ 		34-200 Screw, Clamp Screw (Longer for Thin Clamp) ONLY (uses 2)
This can be used as a sub for the 34-49 or 34-45 if wanting a LONGER stud screw
$2.30 More Info
34C-200 In Stock 34C-200
034C-1182875▲ 		34C-200 Screw with Nuts, f/Thin Style Metal Rod Clamp (uses 2) $4.60 More Info
35-525 In Stock 35-525
035-1182929☀ 		35-525 Tongue, Click Tongue $2.55 More Info
36-525 Discontinued. Still In Stock. Limit 1 36-525
036-1183009 		36-525 Button, Click Button $4.20 More Info
37-525 In Stock 37-525
037-1183078☀ 		37-525 Post, Frame Post (uses 2) $3.40 More Info
39S-965 In Stock 39S-965
039S-1183261☀ 		39S-965 Screw, Short Screw (Pan Head, Flat) (Fine Thread)
Used on multiple models in different quantities.
$1.70 More Info
40-320 In Stock 40-320
040-1183280☀ 		40-320 Bearing, Ball Bearing $14.10 More Info
40C-310 In Stock 40C-310
040C-1183308☀ 		40C-310 Washer, Thrust, Metal Thrust Washer $1.15 More Info
40C-555 Discontinued. Still In Stock. Limit 5 40C-555
040C-1183312☀ 		40C-555 Washer, Metal Thrust Washer $1.25 More Info
40D-555 In Stock 40D-555
040D-1183318☀ 		40D-555 Washer, Rubber Thrust Washer $1.15 More Info
46-4300 In Stock 46-4300
046-1183567☀ 		46-4300 Screw

MULTI USE See Description
Used on multiple models in different quantities.
$1.15 More Info
62-545 In Stock 62-545
062-1184029☀ 		62-545 Spring, Click Spring
Used on multiple models in different quantities.
$1.15 More Info
62B-525 In Stock 62B-525
062B-1184037☀ 		62B-525 Pin, Click Pin (uses 2) $1.70 More Info
62C-525 In Stock 62C-525
062C-1184042 		62C-525 Cover, Click Spring Cover $1.15 More Info
63-500S In Stock 63-500S
063-1184052☀ 		63-500S Screw

MULTI USE See Description
Used on multiple models in different quantities.
$1.20 More Info
67-9 In Stock 67-9
067-1184102☀ 		67-9 Ring, Lock Ring $1.15 More Info
69B-600 In Stock 69B-600
069B-1184129♦ 		69B-600 | DSS-VP2041 Ring, Retaining Ring (E-clip)
Used on multiple models in different quantities.
$1.35 More Info
81-525 In Stock 81-525
081-1184209 		81-525 Ratchet, Click Ratchet $6.80 More Info
86-49L In Stock 86-49L
086-1184251☀ 		86-49L Washer, Drag, Metal Drag Washer ONLY
Used on multiple models in different quantities.
$1.35 More Info
98-525 In Stock 98-525
098-1184362 		98-525 Spacer, Ratchet Spacer $1.75 More Info
98B-525 In Stock 98B-525
098B-1184377▲ 		98B-525 Bearing, Anti-Reverse Clutch Bearing $18.60 More Info
98B-525MAG2 In Stock 98B-525MAG2
098B-1239046▲ 		98B-525MAG2 Bearing, Anti-Reverse Clutch Bearing $11.30 More Info
98S-525 In Stock 98S-525
098S-1184395☀ 		98S-525 Sleeve, Clutch Sleeve $5.55 More Info
98S-525MAG2 In Stock 98S-525MAG2
098S-1239047 		98S-525MAG2 Sleeve, Clutch Sleeve $6.30 More Info
110-50 In Stock 110-50
110-1184436☀ 		110-50 Screw
Used on multiple models in different quantities.
$1.15 More Info
110A-555 In Stock 110A-555
110A-1184442☀ 		110A-555 Cap, Handle Nut Lock Cap $1.70 More Info
120-113H In Stock 120-113H
120-1184522☀ 		120-113H 'O' ring (O-ring) (Black Rubber) $1.15 More Info
121-525 In Stock 121-525
121-1184529 		121-525 Screw, Bearing Screw $2.35 More Info
134-525 In Stock 134-525
134-1184623 		134-525 Stud, Gear Stud (Brass) $7.35 More Info
149-45 In Stock 149-45
149-1184702♦ 		149-45 Nut, Clamp, Long, for Thick Clamps (uses 2)
Used with the graphite clamps 33-114H2, 33-340, 33N-113 and the iron alloy clamp 33i-113
$1.45 More Info
149-200 In Stock 149-200
149-1184706☀ 		149-200 Nut, Clamp Hex Nut (uses 2) $1.15 More Info
152-200 In Stock 152-200
152-1184709☀ 		152-200 Wing Nut, f/Thin Metal Rod Clamp Only (uses 2) $1.15 More Info
168-50W Discontinued. Still In Stock. Limit 10 168-50W
168-1192371▲ 		168-50W Wrench
Fits Reels: 30VSX, 50VSW2 50VSX, 70VS, GLD50ii, 112H2, 113L2, 113H2, 113H2-LH, 113H2LW, 113H2SP, 113HN, 330LD, 515MAG2, 525GS, 525MAG, 525MAG2, 525MAGT, 535GS, 535MAG, 545GS, 545MAG, 555GS, 555MAG, 975, 975CS, 975CSLD, 975LD, SQL12, SQL15, TRQ100, TRQ200, TRQ300
partimage
$2.00 More Info
168-965 In Stock 168-965
168-1192728▲ 		168-965 Wrench
Fits 23-965 and 23-555 handle nut (see details for list of reels)
$1.15 More Info
173-525 In Stock 173-525
173-1184844 		173-525 Retainer, Bearing Retainer $2.35 More Info
176-965 In Stock 176-965
176-1184853☀ 		176-965 Brake, Anti-Backlash Brake (uses 4) $1.20 More Info
177-965 In Stock 177-965
177-1184856☀ 		177-965 Knob, Brake Selection Knob $4.35 More Info
183-525 Discontinued. Still In Stock. Limit 2 183-525
183-1184920 		183-525 Frame

LIMITED QUANTITIES AVAILABLE
$32.80 More Info
513-525SP Discontinued. Still In Stock. Limit 1 513-525SP
513-1180387 		513-525SP Gear Kit 4.25-1 Ratio (Old Style Gear) $38.80 More Info
513-555SP Discontinued. Not Available 513-555SP
513-1180389 		513-555SP Gear Kit 5.3-1 Ratio (Old Style Gear) More Info
PEN XXSMRC In Stock PEN XXSMRC
1178860 		XXSMRC Cover, Reel Cover, Conventional, Size Extra-Extra Small

FITS REELS:
9M, 109M, 209M
110, 111, 112, 112H, 112H2
140L, 145, 146L, 220
310GT, 310GTi, 310GT2, 320GT, 320GTi, 320GT2, 320LD
500L, 501, 525, 525GS, 525MAG, 535, 535GS, 545, 545GS, 555, 555GS
965, 975, 975CS, 975CSLD, 975SLD
DFN20LW, DFN25LW, DFN30
FTH12, FTH15, FTH15LD2, FTH15LD, FTH15LW, FTH20LW, FTH25N, FTH25NLD, FTH25NLD2, FTH25LW, FTH30, FTH30LD, FTH30LD2, FTH30LD2LH, FTH25NLD2, FTH30LD, FTH40
SQL200LP, SQL200LPLH,SQL200LPHS,SQL300LP, SQL300LPLH,SQL300LPHS,SQL400LP, SQL400LPLH,SQL400LPHS
SQL12, SQL15, SQL15LW, SQL20LW, SQL25N
SQLii12SD, SQLii15SD, SQLii15SDCS, SQLii25NSD
TRQ15LD2, TRQ25NLD2, TRQ30LD2, TRQ12, TRQ15, TRQ25, TRQ30, TRQ40, TRQ100, TRQ100LD, TRQ200
WAR15LW, WAR15LWLH

$16.99 More Info
Trusted SSL Certificate
