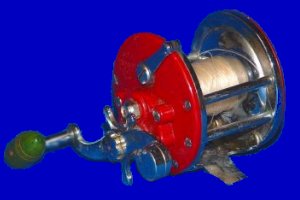

Penn 27, 27M Monofil Conventional Reel

View / Print Schematic Request a Schematic View / Print Owners Manual Buy Reel Cover

Model Specs:

More Info
  • Bakelite Side Plates (early models) then Poly later on.
  • Plastic or Chrome over Bronze Spools
  • Torpedo Knob Handle (early models) later became rubberized knob.
  • Bronze Main Gear
  • Stainless Steel pinion gear
Mono Cap
(yds/lb)		 Braid Cap
(yds/lb)		 Bearings Max Drag Gear Ratio Line Retrieve
300/15 -- 2 -- 3:1 --
Availability SKU Name Our Price
REEL DISCONTINUED BY PENN   REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

1-27 Discontinued. Still In Stock. Limit 1 1-27 1-27 Plate, Handle Side Plate (Dark Brown) $15.90 More Info
2-155 In Stock 2-155
1180628 		2-155 Ring, Side Ring

MULTI USE See Description
$8.50 More Info
3-155 Backordered. Still In Stock. Limit 5 3-155
1180716 		3-155 Bridge with Sleeve $9.15 More Info
4-155 In Stock 4-155
1180772 		4-155 Washer, Hard Fiber Spacer (Under Main Gear) $0.95 More Info
5-155 Discontinued. Still In Stock. Limit 2 5-155
1180859 		5-155 Gear, Main Gear

REPLACED BY PART NUMBER 5C-209

LIMITED QUANTITIES AVAILABLE
$7.95 More Info
5C-209 In Stock 5C-209
1203724 		5C-209 Gear, Main & Pinion KIT (2 pcs) $11.05 More Info
6-155 In Stock 6-155
1180915 		6-155 Washer, Drag Washer HT-100™
MULTI USE See Description
Used on multiple models in different quantities.
$0.95 More Info
6-155SD Backordered. Not Available 6-155SD
CBT P#155 		6-155SD Set, Drag Washers, CARBONTEX by SmoothDrag (Custom) More Info
7C-155 In Stock 7C-155
1181047 		7C-155 Washer, Drag, Metal Drag Washers (SET of 3) $5.55 More Info
8-60 In Stock 8-60
1181056 		8-60 Washer, Black Tension Spring Washer (Belleville)

8-60 BLACK REPLACES ORIGINAL NUMBER 8-60 CHROME
Used on multiple models in different quantities.
Direct product replacement: 8-310GT2 Spring, Tension Spring, Chrome $1.10
$0.95 More Info
9-60 In Stock 9-60 9-60 Sleeve, Spacing Sleeve - (optional variations)
Variations allow for more/less play in handle - see description.
More Info
10-60 In Stock 10-60
1181176 		10-60 Star Drag Wheel (COARSE THREAD - Two Types)

REPLACES ORIGINAL NUMBER 10-140 ON SOME REELS
$4.05 More Info
11-155 In Stock 11-155
1181237 		11-155 Jack, Eccentric Jack (Brass) $2.00 More Info
12-155 In Stock 12-155
1181264 		12-155 Yoke, Pinion Yoke (Brass) $1.10 More Info
13-155 Discontinued. Still In Stock. Limit 2 13-155
1181335 		13-155 Gear, Pinion Gear

REPLACED BY PART NUMBER 5C-209
Direct product replacement: 5C-209 Gear, Main & Pinion KIT (2 pcs) $11.05
$7.55 More Info
14-155 Discontinued. Still In Stock 14-155
1181399 		14-155 Spring, Dog Spring $1.15 More Info
15-155 Discontinued. Still In Stock. Limit 5 15-155
1181446 		15-155 Dog

LIMITED QUANTITIES AVAILABLE
$1.30 More Info
16-60CH In Stock 16-60CH
1181565 		16-60CH Screw

REPLACES ORIGINAL PART NUMBER 16-60 ON SOME REELS
Used on multiple models in different quantities.
$0.95 More Info
17-60CH In Stock 17-60CH
1181594 		17-60CH Screw, Bridge, Upper Bridge Screw

REPLACES ORIGINAL PART NUMBER 17-60
Used on multiple models in different quantities.
$0.95 More Info
18-60 In Stock 18-60
1181615 		18-60 Spring, Clutch Spring
Used on multiple models in different quantities.
$0.95 More Info
19-155 Backordered. Still In Stock. Limit 5 19-155
1181669 		19-155 Eccentric

LIMITED QUANTITIES AVAILABLE
$3.65 More Info
20-113H2 In Stock 20-113H2
1288917 		20-113H2 Spring, Eccentric Spring

REPLACES ORIGINAL NUMBER 20-155 ON SOME REELS
$0.95 More Info
20-155 Discontinued. Not Available 20-155
1181769 		20-155 Spring, Eccentric Spring
Used on multiple models in different quantities.
113H Fits All Versions.
Direct product replacement: 20-113H2 Spring, Eccentric Spring $0.95
More Info
21-155 Discontinued. Still In Stock. Limit 5 21-155
1181851 		21-155 Lever, Eccentric Lever $2.65 More Info
22-60CH In Stock 22-60CH
1181908 		22-60CH Screw, Eccentric Screw with washer (Sems) (Silver)

REPLACES ORIGINAL NUMBER 22-60, 22-113HN ON SOME REELS
114H Fits Half Frame Version.
$1.90 More Info
23-60 In Stock 23-60
1181935 		23-60 Screw, Large

MULTI USE See Description
$2.80 More Info
24N-160 Discontinued. Not Available 24N-160 24N-160 Handle, Flat Rubberized Knob
FITS: Type [A] Bridge/Sleeve

REPLACED BY PART NUMBER 24S-310
More Info
24NC-160 Discontinued. Not Available 24NC-160 24NC-160 Handle More Info
24-500-1-PC In Stock 24-500-1-PC
PC-JM-HDL 		24-500-1-PC Offset Handle Blank ONLY (includes screw)
For PENN 112H, JigMaster 500/501/505/506 (Other PENN Reels)
$12.00 More Info
25-160 Discontinued. Not Available 25-160 25-160 Knob, Rivet and Oiler More Info
26-155 In Stock 26-155
1182122 		26-155 Bearing, Handle Side Bearing $6.60 More Info
27-25 Discontinued. Not Available 27-25 27-25 Plate, Non-Handle Side Plate More Info
29-27 Discontinued. Not Available 29-27 29-27 Spool, Plastic More Info
29L-100PRO In Stock 29L-100PRO
PC-29L-100 		29L-100PRO Spool, Aluminum CUSTOM $39.99 More Info
29M-27 Discontinued. Not Available 29M-27 29M-27 Spool, Chrome on Bronze
Direct product replacement: 29L-100 Spool, Aluminum (Black) $0.00
More Info
30-180S Discontinued. Still In Stock. Limit 2 30-180S
1182631 		30-180S Stand

REPLACED BY PART NUMBER 30-49
Direct product replacement: 30-49 Stand, Modern Chrome Finish $12.85
$12.00 More Info
32-14CH In Stock 32-14CH
1182707 		32-14CH Screw

REPLACES ORIGINAL NUMBERS 32-14, 32T-20, 32-155 ON SOME REELS
Used on multiple models in different quantities.
$0.95 More Info
32-22 In Stock 32-22
1182714 		32-22 Screw

MULTI USE See Description

REPLACES ORIGINAL PART NUMBER 31-155 ON SOME REELS
Used on multiple models in different quantities.
$1.40 More Info
35-155 In Stock 35-155
1182919 		35-155 Tongue, Click Tongue $3.45 More Info
36-155CH In Stock 36-155CH
1182994 		36-155CH Button, Click Button
Used on multiple models in different quantities.
$5.55 More Info
37-180 In Stock 37-180
1183074 		37-180 Post, Frame Post

Optional on the 501 and 506HS reels.
$7.50 More Info
37A-180PRO In Stock 37A-180PRO
PC37-180 		37A-180PRO Spacer Bar, T-6061 Aluminum (CUSTOM) $15.00 More Info
38-8 In Stock 38-8
1183135 		38-8 Screw

MULTI USE See Description
$0.95 More Info
40-60 In Stock 40-60
1183267 		40-60 Bearing, Non-Handle Side

REPLACES ORIGINAL NUMBER 40-85 ON SOME REELS
$4.15 More Info
41-60 In Stock 41-60
1183327 		41-60 Spring

MULTI USE See Description
$1.00 More Info
62-209 In Stock 62-209
1184026 		62-209 Spring, Click, Metal Click Spring

MULTI USE See Description
$2.00 More Info
63-209 In Stock 63-209
1184048 		63-209 Screw (for Metal Click Spring)

MULTI USE See Description
113H Fits Frame Posts with a clicker and Half Frame Versions.
$0.95 More Info
98-155 In Stock 98-155
1184340 		98-155 Sleeve, Gear Sleeve (comes with pin) (Brass) $4.15 More Info
98-155AT In Stock 98-155AT 98-155AT Sleeve, Gear Sleeve (comes with pin) (Stainless) (Optional)
Aftermarket Part - Not Manufactured by Penn

MULTI USE See Description
$32.00 More Info
110-60 In Stock 110-60
1184437 		110-60 Screw, Handle Lock Screw

REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS
$0.95 More Info
168-60 In Stock 168-60
1184802 		168-60 Wrench
Fits 23-60, 23-16S knurled nuts (See details for list of reels)
$0.95 More Info
168-TANI Backordered. Not Available 168-TANI 168-TANI Heavy Duty Penn Handle Nut Wrench by Alan Tani
Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts
$0.00 More Info
168-9 Discontinued. Still In Stock. Limit 1 168-9
1184800 		168-9 Wrench
Fits 23-60 knurled nut (see details for list of reels)
partimage

REPLACED BY PART NUMBER 168-60 or 168-TANI
Direct product replacement: 168-60 Wrench $0.95
$2.00 More Info
98-155PRO In Stock 98-155PRO
PC98-155 		98-155PRO Sleeve, Gear Sleeve, 10 Tooth (comes with pin) (FINE THREAD) 416 Stainless (CUSTOM) $32.00 More Info
