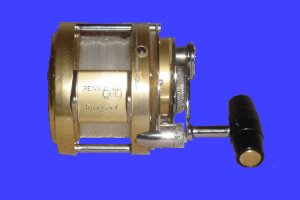

Penn 20 Single Speed Lever Drag Reel

View / Print Schematic Request a Schematic Buy Reel Cover

Model Specs:

More Info
  • Perfect balanced frame.
  • One-piece pinion spool and spool shaft.
  • Shielded stainless steel ball bearings.
  • Double dog design provides maximum security and long wear-free life.
  • Unique drag system.
  • Penn pre-set drag automatically keeps drag tension within safe limits.
  • Strike set stop
  • Lever action drag control ranges over 120 degrees.
  • Distinctive warning click.
Mono Cap
(yds/lb)		 Braid Cap
(yds/lb)		 Bearings Max Drag Gear Ratio Line Retrieve
700/20 4 3.5:1
Availability SKU Name Our Price
REEL DISCONTINUED BY PENN   REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

DESIGN CHANGE ECCENTRIC KNOB PARTS 113-50, 112-50 and 112A-50 (+ 23-6CH) DESIGN CHANGE ECCENTRIC KNOB PARTS 113-50, 112-50 and 112A-50 (+ 23-6CH) $0.00 More Info
ABOUT Older Int. 20 and 30 Drive Plate/Pinion Change 20/30
020-20/30 		ABOUT Older Int. 20 and 30 Drive Plate/Pinion Change
MUST READ!
$0.00 More Info
1-20 In Stock 1-20
001-1180404 		1-20 Plate, Handle Side Plate Assembly $102.55 More Info
2-30 Discontinued. Not Available 2-30
002-1180591 		2-30 Ring, Quadrant Ring More Info
3-30 Discontinued. Not Available 3-30
003-1190919 		3-30 Bridge More Info
4-30 Discontinued. Still In Stock. Limit 5 4-30
004-1180751☀ 		4-30 Washer, Cam Thrust Washer $2.65 More Info
5-50 In Stock 5-50
005-1180820 		5-50 Gear, Main Gear, Stainless $50.40 More Info
6-155 In Stock 6-155
006-1180915◉ 		6-155 Washer, Drag Washer HT-100™
MULTI USE See Description
Used on multiple models in different quantities.
$1.15 More Info
6-30 Discontinued. Not Available 6-30
006-30 		6-30 Washer, Drag Washer, Original Donut ONLY (1st Generation)

Replaced by #6A-30
(CLICK FOR MORE INFO)

More Info
6/1-30ASB Discontinued. Not Available 6/1-30ASB
006-6/1-30ASB 		6/1-30 Washer, Drag Washer, Asbestos on Metal Plate (2nd Generation)

REPLACED BY PART NUMBER 6A-30/p>(CLICK FOR MORE INFO)

More Info
6/1-30HT Discontinued. Not Available 6/1-30HT
006-6/1-30HT 		6/1-30 Washer, Drag Washer, HT100™ on Metal Plate (3rd Generation) More Info
6A-30 Discontinued. Not Available 6A-30
006A-1180934 		6A-30 Washer, Drag Washer Plate, HT100™ (4th Gen) More Info
7-30 In Stock 7-30
007-1181003▲ 		7-30 Washer, Drag, Metal Drag Washer $18.20 More Info
9-30 Backordered. Still In Stock. Limit 2 9-30
009-1181139☀ 		9-30 Sleeve, Spacer Sleeve $2.90 More Info
13-20 In Stock 13-20
013-1181284 		13-20 Gear, Pinion Gear (8 splines) $37.20 More Info
14-50 In Stock 14-50
014-1181391☀ 		14-50 Spring, Flat Dog Spring (uses 2) $3.85 More Info
15-50 In Stock 15-50
015-1181425☀ 		15-50 Dog (uses 2) $1.20 More Info
18-20 Discontinued. Still In Stock. Limit 10 18-20
018-1181609☀ 		18-20 Disc Clutch Spring/Spring Disc Washer
Used on multiple models in different quantities.
$2.20 More Info
19-20 Discontinued. Not Available 19-20
019-1181642 		19-20 Cam, Eccentric Cam
Direct product replacement: 19-30W Cam, Eccentric Cam $35.85
More Info
20-704 In Stock 20-704
020-1181790☀ 		20-704 Bearing, Ball Bearing

REPLACES ORIGINAL PART NUMBER 20-700, 20L-704 ON SOME REELS
Used on multiple models in different quantities.
$18.55 More Info
21-30 In Stock 21-30
021-1181826 		21-30 Lever, Eccentric Cam Lever $9.15 More Info
22-109 In Stock 22-109
022-1181912☀ 		22-109 Screw (SEMS 540 x 156)

MULTI USE See Description
Used on multiple models in different quantities.
$1.70 More Info
23-114 In Stock 23-114
023-1181945☀ 		23-114 Screw, Handle Screw, Chrome Fin. (w/ OILER)

MULTI USE See Description
113H Fits All Versions.
$5.00 More Info
23M-114 Discontinued. Still In Stock. Limit 5 23M-114
023M-1181961☀ 		23M-114 Screw, Handle Screw, Matte Fin. with Oiler

MULTI USE See Description
113H Fits All Versions.
$8.95 More Info
24-30TW Discontinued. Not Available 24-30TW
024-30TW 		24-30TW Handle, Original Plastic Black Knob
FITS: Type [B] Bridge/Sleeve

REPLACED BY PART NUMBER 24N-30TW
Direct product replacement: 24N-30TW Handle, Rubberized Large Knob $52.95
More Info
24N-30TW In Stock 24N-30TW
024N-1181970▭ 		24N-30TW Handle, Rubberized Large Knob
FITS: Type [B] Bridge/Sleeve

REPLACES ORIGINAL NUMBER 24-30TW
$52.95 More Info
24-113H-1-PC In Stock 24-113H-1-PC
024-PC-113H-HDL 		24-113H-1-PC Offset Handle Blank ONLY (Custom) (includes screw)
For PENN 113H, PENN 349 (Other PENN Reels) or PRO Gear 454
$13.00 More Info
27-20 Discontinued. Still In Stock. Limit 2 27-20
027-1182155 		27-20 Plate, Non-Handle Side Plate $78.40 More Info
29L-20 Discontinued. Still In Stock. Limit 2 29L-20
029L-1182481 		29L-20 Spool, Aluminum (Gold Finish)

This part will no longer be manufactured by Penn; Limited Quantities Available.
$103.40 More Info
30-20 Discontinued. Not Available 30-20
030-1182600 		30-20 Stand More Info
31-20 Discontinued. Still In Stock. Limit 1 31-20
031-1182655☀ 		31-20 Screw, Stand Screw (Short Quadrant Screw) (Slot Head)
Used on multiple models in different quantities.
Direct product replacement: 31T-20 Screw (Short) (Torx Head) $2.55
$1.90 More Info
32-14CH In Stock 32-14CH
032-1182707☀ 		32-14CH Screw

REPLACES ORIGINAL NUMBERS 32-14, 32T-20, 32-155 ON SOME REELS
Used on multiple models in different quantities.
$1.15 More Info
33-49 In Stock 33-49
033-1182752▲ 		33-49 Clamp, Rod, Metal Rod Clamp $3.70 More Info
33C-49 In Stock 33C-49
033C-1192680▭ 		33C-49 Metal Rod Clamp Kit with Studs and Nuts $13.30 More Info
33R-49 Discontinued. Not Available 33R-49
033R-33R-49 		33R-49 Clamp, Rod, Ringed More Info
34-49 In Stock 34-49
034-1182789▲ 		34-49 Screw, Clamp Screw ONLY (uses 2) $1.20 More Info
34C-49 In Stock 34C-49
034C-1182863▲ 		34C-49 Screw With Nut for Thin Metal Rod Clamp (uses 2) $2.50 More Info
35-50N In Stock 35-50N
035-1182900☀ 		35-50N Tongue, Click Tongue (ONLY) (New Version)

REPLACES ORIGINAL NUMBER 35-50 ON SOME REELS
$4.65 More Info
36-700 In Stock 36-700
036-1183014☀ 		36-700 Nut, Locking Nut

REPLACES ORIGINAL NUMBER 36-710 ON SOME REELS
$2.05 More Info
36-50 Discontinued. Not Available 36-50
036-50 		36-50 Button, Click Button (Original Version)

REPLACED BY PART NUMBER 36C-50

Click for more information
More Info
36N-50 In Stock 36N-50
036N-1183047☀ 		36N-50 Button, Click Button (ONLY) (New Version)

MULTI USE See Description

REPLACES ORIGINAL NUMBER 36N-50 ON SOME REELS
$18.20 More Info
36C-50 Discontinued. Still In Stock. Limit 2 36C-50
036C-1183037▲ 		36C-50 Button, Click Button Complete Assembly $33.10 More Info
36S-80ST In Stock 36S-80ST
036S-1183051☀ 		36S-80ST Cap, Click Button Cap $1.15 More Info
37-20 Discontinued. Still In Stock. Limit 2 37-20
037-1183053 		37-20 Post, Frame Post $6.50 More Info
37A-20 In Stock 37A-20
037A-1183098 		37A-20 Bar, Spacer Bar $17.10 More Info
38-7 In Stock 38-7
038-1183134☀ 		38-7 Screw

MULTI USE See Description

REPLACES ORIGINAL PART NUMBER 38-200 ON SOME REELS
$1.15 More Info
38-50 Discontinued. Not Available 38-50
038-1183138 		38-50 Slotted Screw, Frame Screw (8-32 Thread)
Used on multiple models in different quantities.
38T-50 Frame Screw with Torx Head (T15, 8-32 Thread) $1.80
More Info
38T-50 In Stock 38T-50
038T-1183173☀ 		38T-50 Frame Screw with Torx Head (T15, 8-32 Thread)
Used on multiple models in different quantities.
$1.80 More Info
38-710 In Stock 38-710
038-1183157☀ 		38-710 Nut

MULTI USE See Description
$1.15 More Info
39-12 In Stock 39-12
039-1183184♦ 		39-12 Screw
Used on multiple models in different quantities.
$1.15 More Info
39-50 Discontinued. Still In Stock. Limit 10 39-50
039-1183188☀ 		39-50 Screw, Long, Slotted Head

REPLACES PART NUMBER 39T-50
$3.60 More Info
39T-50 Discontinued. Not Available 39T-50
039T-39T-50 		39T-50 Screw, Quadrant, Long, Torq Head

REPLACED BY PART NUMBER 39-50
Used on multiple models in different quantities.
Direct product replacement: 39-50 Screw, Long, Slotted Head $3.60
More Info
41-50 In Stock 41-50
041-1183325☀ 		41-50 L. S. Spring, Bearing Spring $2.85 More Info
54-50 Discontinued. Not Available 54-50
054-1183853 		54-50 Lug, Harness Lug (uses 2) More Info
55-80 Discontinued. Not Available 55-80
055-1183878 		55-80 Bearing, Ball Bearing
Used on multiple models in different quantities.
Direct product replacement: 55S-80 Ball Bearing $9.60
More Info
59-50 In Stock 59-50
059-1183976☀ 		59-50 Washer, Slotted Washer $3.00 More Info
60-50 In Stock 60-50
060-1183983☀ 		60-50 Washer, Backing/Thrust Washer
Used on multiple models in different quantities.
$1.35 More Info
62-50 In Stock 62-50
062-1184022☀ 		62-50 Spring, Click Spring $1.20 More Info
69-50 In Stock 69-50
069-1184116☀ 		69-50 Pin, Locating Pin (uses 2) $3.40 More Info
69B-50 In Stock 69B-50
069B-1184125☀ 		69B-50 Ring, Retaining Ring (E-Clip)
Used on multiple models in different quantities.
$1.15 More Info
81-50 In Stock 81-50
081-1184204▲ 		81-50 Ratchet $8.30 More Info
95-50 In Stock 95-50
095-1184306 		95-50 Bushing, Click Tongue Bushing $5.85 More Info
95A-20 In Stock 95A-20
095A-1184310☀ 		95A-20 Washer, Click Bushing Washer $2.05 More Info
101-30 In Stock 101-30
101-1184403☀ 		101-30 Screw, Torx Head Screw
Used on multiple models in different quantities.
$1.15 More Info
110-50 In Stock 110-50
110-1184436☀ 		110-50 Screw
Used on multiple models in different quantities.
$1.15 More Info
110A-50 In Stock 110A-50
110A-1184441☀ 		110A-50 Plate, Locking, Handle Locking Plate $4.15 More Info
112-50 Discontinued. Not Available 112-50
112-1184457 		112-50 Knob, Eccentric Lever Knob More Info
112A-50 Discontinued. Not Available 112A-50
112A-1184461 		112A-50 Screw, Eccentric Knob Screw
Direct product replacement: 23-6CH Screw, Gear Mounting Screw $2.55
More Info
113-50 In Stock 113-50
113-1184466☀ 		113-50 Cap, Eccentric Lever Cap $5.35 More Info
117-30 In Stock 117-30
117-1184476 		117-30 Drive Plate Only $30.00 More Info
117DN-30 Discontinued. Not Available 117DN-30
117DN-1184502 		117DN-30 Drive Plate Assembly with Dura-Drag™ Washer

REPLACES ORIGINAL NUMBER 117D-30 ON SOME REELS
More Info
119-50 In Stock 119-50
119-1192268 		119-50 Plate, Main Gear Coupling Plate $5.35 More Info
124-30 Discontinued. Not Available 124-30
124-1184537 		124-30 Cover, Bridge Cover More Info
134-50 In Stock 134-50
134-1184615☀ 		134-50 Stud, Gear Stud $31.50 More Info
134/1-50 Discontinued. Not Available 134/1-50
134-134/1-50 		134/1-50 Washer, Gear Stud Washer
Direct product replacement: 134A-50 Washer, Gear Stud Washer $1.35
More Info
141-30 In Stock 141-30
141-1184651 		141-30 Cam Follower $20.85 More Info
142-50 In Stock 142-50
142-1184663☀ 		142-50 Cam Follower Pin
Used on multiple models in different quantities.
$2.55 More Info
143-30 Discontinued. Not Available 143-30
143-1184671 		143-30 Screw, Adjusting Screw More Info
144-50 In Stock 144-50
144-1184685▲ 		144-50 Knob, Pre-set Knob $25.05 More Info
149-200 In Stock 149-200
149-1184706☀ 		149-200 Nut, Clamp Hex Nut (uses 2) $1.15 More Info
152-200 In Stock 152-200
152-1184709☀ 		152-200 Wing Nut, f/Thin Metal Rod Clamp Only (uses 2) $1.15 More Info
152A-50 Discontinued. Not Available 152A-50
152A-152A-50 		152A-50 Nut, Rod Clamp Acorn Nut More Info
156-30 Discontinued. Not Available 156-30
156-1184734 		156-30 Cover, Drag Cover More Info
157-50 In Stock 157-50
157-1184764☀ 		157-50 Bushing, Spacer Bushing

LIMITED QUANTITIES AVAILABLE
Used on multiple models in different quantities.
$2.70 More Info
161-50 In Stock 161-50
161-1184788☀ 		161-50 Bushing, Locating Pin Bushing (uses 2) $2.55 More Info
162-30 Discontinued. Not Available 162-30
162-162-30 		162-30 Spring, Locating Pin Spring More Info
168-TANI In Stock 168-TANI
168-TANi▭ 		168-TANI Heavy Duty Penn Handle Nut Wrench by Alan Tani
Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts
$20.00 More Info
168-115 In Stock 168-115
168-1184804☘ 		168-115 Wrench
FITS 23-50S, 23-114, 23M-114, 23-116, 23-220, 23-FTH20LW, 23-16S, 23-60 knurled nuts
$1.15 More Info
Trusted SSL Certificate
