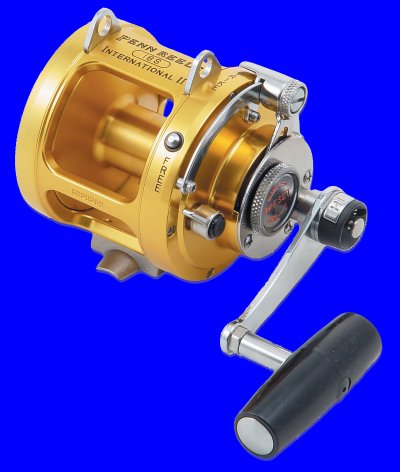

Model Specs:

More Info
  • Machine-cut, heat-treated stainless steel main and pinion gears and drag cams.
  • Machined, gold anodized one-piece frame.
  • One piece right side plate.
  • Four aircraft-grade, sealed stainless steel ball bearings.
  • Stainless steel reel stand.
  • Loud, durable clicker.
  • Forged and machined spool and side plates.
  • Shift button for instant gear change.
  • Precision drag design.
  • Spools are forged from solid aluminum, then polished and gold anodized.
Mono Cap
(yds/lb)
Braid Cap
(yds/lb)
Bearings Max Drag Gear Ratio Line Retrieve
1000/16 675/20 460/30 1000/50 825/65 700/80 4 4.5:1 High
REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

6-155
006-1180915◉
6-155 Washer, Drag Washer HT-100™

MULTI USE See Description

Used on multiple models in different quantities.

$1.30
13-16S
013-1181283
$48.55
15-50
015-1181425☀
$1.35
18-20
018-1181609
18-20 Spring, Clutch Disc Tension Washer (Beveled)

Used on multiple models in different quantities.
Direct product replacement: 18-30TW Spring, Clutch Disc Tension Washer (Beveled) (HEAVY) (uses 4) $1.80

$0.00
18-60
018-1181615☀
18-60 Spring, Clutch Spring

Used on multiple models in different quantities.

$1.30
18-349
018-1181622☀
18-349 Spring


MULTI-USE
See Description

$1.55
19-16S
019-1181641
19-16S Cam, Eccentric Cam

LIMITED QUANTITIES AVAILABLE

$38.15
20-704
020-1181790☀
20-704 Bearing, Ball Bearing

REPLACES ORIGINAL PART NUMBER 20-700, 20L-704 ON SOME REELS

Used on multiple models in different quantities.

$20.40
22-109
022-1181912☀
22-109 Screw (SEMS 540 x 156)

MULTI USE See Description

Used on multiple models in different quantities.

$1.90
23-16S
023-1181932★
$6.95
24-16S
024-16S
24-16S Handle, Gold, Large Plastic Knob (Original)

FITS: Type [M] Bridge/Sleeve

REPLACED BY PART NUMBER 24B-16S

Direct product replacement: 24B-16S Handle, Chrome, Large Plastic Knob (New Style) $52.15

$0.00
24B-16S
024B-1181967
24B-16S Handle, Chrome, Large Plastic Knob (New Style)

FITS: Type [M] Bridge/Sleeve

REPLACES ORIGINAL NUMBER 24-16S ON SOME REELS

$52.15
26-40
026-1182112☀
$17.50
30-12LT
030-1182597★
$11.00
31T-20
031T-1182699☀
31T-20 Screw (Short) (Torx Head)

Used on multiple models in different quantities.

$2.85
33-16VS
033-1191592▲
33-16VS Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey)

REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS

$21.85
33C-16S
033C-1192679
$25.55
34-114HLW
034-1182804▲
34-114HLW Screw, Rod Clamp Screw ONLY (uses 2)

MEASURE your studs, click for more details

114 Fits Full Frame Version.
114H Fits Full Frame Version.

$4.40
34C-114HLW
034C-1182869☀
34C-114HLW Screw With Nut, for Thicker Graphite Rod Clamp (uses 2)

MEASURE your studs, click for more details

114H Fits Half Frame and Full Frame Versions.

$6.90
35-80TN
035-1182906
35-80TN Tongue, Click Tongue

REPLACES ORIGINAL NUMBER 35-80T ON SOME REELS

$0.00
36-700
036-1183014☀
36-700 Nut, Locking Nut

REPLACES ORIGINAL NUMBER 36-710 ON SOME REELS

$2.30
36N-50
036N-1183047☀
36N-50 Button, Click Button (ONLY) (New Version)

MULTI USE See Description

REPLACES ORIGINAL NUMBER 36N-50 ON SOME REELS

$20.05
36S-80ST
036S-1183051☀
$1.30
38-710
038-1183157☀
38-710 Nut

MULTI USE See Description

$1.30
38T-50
038T-1183173☀
38T-50 Frame Screw with Torx Head (T15, 8-32 Thread)

Used on multiple models in different quantities.

$2.00
46A-704
046A-1183586☀
46A-704 Screw (Pan Head)

MULTI USE See Description

$1.30
55-80ST
055-1183879▲
55-80ST Bearing, Ball Bearing

Used on multiple models in different quantities.

$25.55
60-50
060-1183983☀
60-50 Washer, Backing/Thrust Washer

Used on multiple models in different quantities.

$1.50
63-349
063-1184050☀
63-349 Screw (SEMS)

MULTI USE See Description

$1.90
67-16S
067-1184103☀
$1.30
69B-50
069B-1184125☀
69B-50 Ring, Retaining Ring (E-Clip)

Used on multiple models in different quantities.

$1.30
81-16S
081-1184201
81-16S Ratchet


THIS PART HAS BEEN REPLACED BY 81-16VS on the 16VSX and 16VS reels
Click part number above for detailed explanation.

$8.80
98-16S
098-1184321
98-16S Bushing, Bridge Bushing

LIMITED QUANTITIES AVAILABLE

$26.90
101-30
101-1184403☀
101-30 Screw, Torx Head Screw

Used on multiple models in different quantities.

$1.30
101-50S
101-1184404☀
101-50S Screw

MULTI USE See Description

Used on multiple models in different quantities.

$1.30
110-50
110-1184436☀
110-50 Screw

Used on multiple models in different quantities.

$1.30
117N-16S
117N-1184474▲
117N-16S Drive Plate with Dura-Drag™ Washer


REPLACES ORIGINAL NUMBER 117-16S ON SOME REELS

$36.90
118-80
118-1184512☀
118-80 Screw


MULTI USE See Description

Used on multiple models in different quantities.

$1.30
134-16S
134-1184609★
$15.80
141-16S
141-1184648
$0.00
142-50
142-1184663☀
142-50 Cam Follower Pin

Used on multiple models in different quantities.

$2.75
144-16S
144-1184680
$0.00
156-16S
156-1184731
$6.55
162-50
162-1184795☀
162-50 Spring

Used on multiple models in different quantities.

$1.30
171-16S
171-1184812
$5.20
172-16S
172-1184819
$4.95
172A-16S
172A-1184824★
$1.30
183-16S
183-1184873
$109.20
168A-70
168A-1184806▲
168A-70 T15 Torx Wrench

FITS REELS CONTAINING "T" TORX HEAD SCREWS

$4.40
PEN SMLRC
1178861
SMLRC Cover, Reel Cover, Conventional, Size Small

FITS REELS (and LH models):
10LD, 10KG, 12LT, 12H, 12V, 12VS, 12VSX, 15LD, 16S, 16VS, 16VSX
113, 113L2, 113H, 113H2, 113HSP, 113H2SP, 113HLW, 113H2LW, 113HN, 113MTL, US113, US113N, US113W
220GTO, 230GTO
330GT, 330GT2, 330LD
DFN25LW, DFN30, DFN40LW
FTH25LW, FTH40LW, FTH60LW
GLD20, GLD20ii
SQL16VS. SQL30, SQL30LD, SQL40, SQL40LD
SQLii30SD, SQLii40SD
SQLii15LW, SQLii20LW,SQLii20LWLC,SQLii20LWLH
WAR15LWLC, WAR15LWLCLC, WAR20LWLC, WAR20LWLCLH
WAR30LW, WAR30LWLC

$16.99
168-TANI
CUU-168-TANi▭
168-TANI Heavy Duty Penn Handle Nut Wrench by Alan Tani

Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts

$20.00
149-45
149-1184702♦
149-45 Nut, Clamp, Long, for Thick Clamps (uses 2)

Used with the graphite clamps 33-340, 33N-113, aluminum 33-TRQ, 33-TRQS and iron alloy clamp 33i-113 and 33-16VS

$1.60
