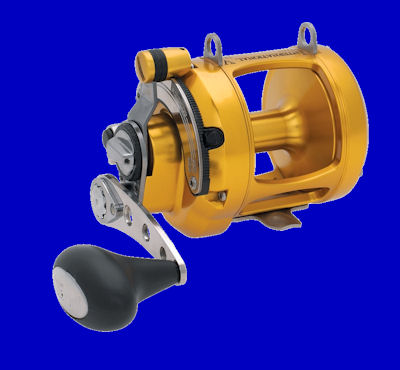

Model Specs:

More Info
  • Full metal body and sideplates keep precise gear alignment under heavy loads
  • Push-To-Turn™ preset knob eliminates accidental changes to the drag
  • Ratcheted drag lever prevents "drag creep" caused by hours of trolling and vibrations
  • Machined, gold anodized one-piece frame
  • Forged and machined spool and side plates
  • Four aircraft-grade, shielded, stainless steel ball bearings
  • Machine-cut, stainless steel main gear, pinion gear, and drag cam
  • Ultimate adjustable clicker available on 12 size only
Mono Cap
(yds/lb)
Braid Cap
(yds/lb)
Bearings Max Drag Gear Ratio Line Retrieve
875/12
775/15
525/20
1425/20
1075/30
750/50
4 9lbs. / 13lbs. 5.9:1 45
Availability SKU Name Our Price
1-12VS Backordered. Still In Stock. Limit 1 1-12VS
1190802
1-12VS Plate, Handle Side Plate (Gold) $111.85 More Info
1D-12VS In Stock 1D-12VS
1228864
1D-12VS Plate, Backing $4.75 More Info
2-12VS In Stock 2-12VS
1190881
2-12VS Ring, Quadrant Ring $7.90 More Info
2A-12VS In Stock 2A-12VS
1228900
2A-12VS Ratchet, Quadrant $5.20 More Info
4-12LT In Stock 4-12LT
1180748
4-12LT Washer, Teflon Washer

MULTI USE See Description

Used on multiple models in different quantities.
$0.85 More Info
4-30VS In Stock 4-30VS
11800752
4-30VS Washer

MULTI USE See Description

$2.50 More Info
5-12V In Stock 5-12V
1228984
5-12V Gear, Main Gear $17.35 More Info
7-12VS In Stock 7-12VS
1191001
7-12VS Washer, Drag Washer $24.70 More Info
9-12VS In Stock 9-12VS
1229052
9-12VS Sleeve, Spacing $2.40 More Info
13-12V In Stock 13-12V
1229320
13-12V Gear, Pinion $39.40 More Info
13B-12V In Stock 13B-12V
1229358
13B-12V Sleeve, Shaft, Pinion $5.25 More Info
13B-12VS In Stock 13B-12VS
1191122
13B-12VS Sleeve, Shaft, Pinion $5.25 More Info
13D-12V In Stock 13D-12V
1229361
13D-12V Spacer, Pinion $3.35 More Info
14-99 In Stock 14-99
1181393
14-99 Spring
Used on multiple models in different quantities.
$0.60 More Info
14-100LD In Stock 14-100LD
1191129
14-100LD Spring, Dog Spring (uses 2) $1.40 More Info
15-100LD In Stock 15-100LD
1192597
15-100LD Dog, Anti-Reverse Dog (uses 2) $3.05 More Info
15W-TS7 In Stock 15W-TS7
1229399
15W-TS7 Washer, Handle Washer $0.80 More Info
18C-15KG In Stock 18C-15KG
1181632
18C-15KG Spring
(Also part of 170-130VS, 124L-30VS, 124L-16VS, 124L-50VS assemblies)
Used on multiple models in different quantities.
$0.85 More Info
18L-300LD Backordered. Still In Stock. Limit 2 18L-300LD
1191216
18L-300LD Spring, Clutch Spring, Light (uses 2)

LIMITED QUANTITIES AVAILABLE

$1.75 More Info
19-16VS In Stock 19-16VS
1191220
19-16VS Cam, Eccentric Cam $60.65 More Info
20L-722 In Stock 20L-722
1233759
20L-722 Bearing, Ball Bearing
Used on multiple models in different quantities.
$11.05 More Info
21-12VS In Stock 21-12VS
1191265
21-12VS Lever, Drag $12.35 More Info
23-114 In Stock 23-114
1181945
23-114 Screw, Handle Screw, Chrome Fin. with Oiler

MULTI USE See Description

113H Fits All Versions.
$4.15 More Info
24-12V In Stock 24-12V
1229465
24-12V Handle Assembly $20.95 More Info
24-12V-1 In Stock 24-12V-1
1229466
24-12V-1 Blank, Handle $16.30 More Info
24C-320LD  In Stock 24C-320LD
1191337
24C-320LD Cap ONLY, Handle Knob Cap, Chromed Tin $2.00 More Info
26-40 In Stock 26-40
1182112
26-40 Bearing, Ball Bearing $13.25 More Info
26N-40 In Stock 26N-40
1182146
26N-40 Bearing, Ball Bearing $13.25 More Info
27-12VS In Stock 27-12VS
1191373
27-12VS Plate, Non-Handle Side $115.25 More Info
29L-12VS In Stock 29L-12VS
1191528
29L-12VS Spool Assembly (Gold) $47.80 More Info
30-16VS In Stock 30-16VS
1182599
30-16VS Stand $19.30 More Info
31-16VS In Stock 31-16VS
1191562
31-16VS Screw, Stand (uses 4) $1.55 More Info
31T-70 In Stock 31T-70
1182700
31T-70 Screw, Short, Torq Head
Used on multiple models in different quantities.
$0.75 More Info
33N-113 In Stock 33N-113
1182754
33N-113 Clamp, Rod: Graphite, with Side Ring

REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS

$4.45 More Info
33C-12VS In Stock 33C-12VS
1229928
33C-12VS Clamp, Rod, Kit $17.80 More Info
34-16VS In Stock 34-16VS
1182786
34-16VS Screw ONLY, for Rod Clamp (uses 2) $4.15 More Info
35-80ST In Stock 35-80ST
1182905
35-80ST Tongue, Click Tongue $5.60 More Info
36-80ST In Stock 36-80ST
1182981
36-80ST Button, Click Button $15.20 More Info
36-700 In Stock 36-700
1183014
36-700 Nut, Locking Nut

REPLACES ORIGINAL NUMBER 36-710 ON SOME REELS

$1.70 More Info
36C-12VS In Stock 36C-12VS
1237165
36C-12VS Click Assembly $23.00 More Info
36S-80ST In Stock 36S-80ST
1183051
36S-80ST Cap, Click Button Cap $0.75 More Info
38-710 In Stock 38-710
1183157
38-710 Nut

MULTI USE See Description

$0.75 More Info
39-12VS In Stock 39-12VS
1229974
39-12VS Screw, Plate, Both Sides
Used on multiple models in different quantities.
$0.80 More Info
41-12VS In Stock 41-12VS
1242832
41-12VS Spring, Drag $0.75 More Info
41-109 In Stock 41-109
1183329
41-109 Spring, Bearing Spring $1.40 More Info
44-300T In Stock 44-300T
1183444
44-300T Screw

MULTI USE See Description

LIMITED QUANTITIES AVAILABLE

Used on multiple models in different quantities.
$0.85 More Info
44-710 In Stock 44-710
1183459
44-710 Screw

MULTI USE See Description

Used on multiple models in different quantities.
$0.60 More Info
46T-TS7  In Stock 46T-TS7
1191914
46T-TS7 Screw
Used on multiple models in different quantities.
$0.75 More Info
50-30VS In Stock 50-30VS
1191964
50-30VS Shield $4.45 More Info
52-16VS In Stock 52-16VS
1191987
52-16VS Ring, Retaining Ring (E-clip) $1.10 More Info
54-12VS In Stock 54-12VS
1230156
54-12VS Lug, Harness (uses 2) $2.90 More Info
54A-12VS In Stock 54A-12VS
1230160
54A-12VS Plug, Lug, Harness (uses 2) $3.15 More Info
55L-4200 In Stock 55L-4200
1237278
55L-4200 Bearing, Ball $11.05 More Info
62-80ST In Stock 62-80ST
1184023
62-80ST Spring, Click $1.00 More Info
63A-12VS In Stock 63A-12VS
1233968
63A-12VS Screw, Rivet, Handle
Used on multiple models in different quantities.
$1.35 More Info
67-16VS In Stock 67-16VS
1192093
67-16VS Washer, Pinion Gear Washer $0.75 More Info
67-30VS In Stock 67-30VS
1184105
67-30VS Ring, Retaining C-Ring f/Shifter $1.10 More Info
69-12VS In Stock 69-12VS
1192105
69-12VS Pin, Locating Pin (uses 2) $2.50 More Info
81-12VS In Stock 81-12VS
1192151
81-12VS Ratchet, Click $5.60 More Info
91-12VS In Stock 91-12VS
1230342
91-12VS Rivet, Handle $7.95 More Info
95A-20 In Stock 95A-20
1184310
95A-20 Washer, Click Bushing Washer $1.70 More Info
95C-80ST In Stock 95C-80ST
1184313
95C-80ST Ring, Click Adjustment Ring $5.15 More Info
95N-80ST In Stock 95N-80ST
1184314
95N-80ST Bushing, Click Tongue Bushing $8.00 More Info
95R-80ST In Stock 95R-80ST
1184315
95R-80ST 'O' Ring (O-Ring) $0.75 More Info
95S-80ST In Stock 95S-80ST
1184316
95S-80ST Slider, Click Spring Slider $5.00 More Info
95W-80ST In Stock 95W-80ST
1184317
95W-80ST Washer, Eared Spring Washer $1.10 More Info
98A-12V In Stock 98A-12V
1230413
98A-12V Spacer, Stud, Gear $1.05 More Info
101-50S In Stock 101-50S
1184404
101-50S Screw

MULTI USE See Description

Used on multiple models in different quantities.
$0.85 More Info
110-50 In Stock 110-50
1184436
110-50 Screw
Used on multiple models in different quantities.
$0.70 More Info
110A-50 In Stock 110A-50
1184441
110A-50 Plate, Locking, Handle Locking Plate $3.45 More Info
112-100LD In Stock 112-100LD
1192243
112-100LD Lever Knob Screw (Gold) $2.90 More Info
112A-100LD In Stock 112A-100LD
1192246
112A-100LD Lever Knob Sleeve $10.35 More Info
112B-100LD In Stock 112B-100LD
1192248
112B-100LD Lever Knob (Gold) $21.55 More Info
112C-30VS In Stock 112C-30VS
1192712
112C-30VS Plate, Drag Click Plate $0.95 More Info
112E-100LD In Stock 112E-100LD
1192251
112E-100LD Housing, Lever Click Housing $2.65 More Info
117A-12VS In Stock 117A-12VS
1192256
117A-12VS Inner Drive Plate Assembly $21.55 More Info
117D-12VS In Stock 117D-12VS
1192261
117D-12VS Outer Drive Plate Assembly $35.10 More Info
119-12V In Stock 119-12V
1230529
119-12V Plate, Retaining Gear Plate $4.20 More Info
124L-12VS In Stock 124L-12VS
1230551
124L-12VS Bridge Cover Assembly $41.75 More Info
134-12V In Stock 134-12V
1230588
134-12V Stud, Gear $20.95 More Info
141-30VS In Stock 141-30VS
1184652
141-30VS Cam Follower $24.15 More Info
143-16VS In Stock 143-16VS
1184670
143-16VS Screw, Preset Screw $12.40 More Info
149-45 In Stock 149-45
1184702
149-45 Nut, Clamp, Long, for Thick Clamps (uses 2)
Used with the graphite clamps 33-114H2, 33-340, 33N-113 and the iron alloy clamp 33i-113
$1.10 More Info
149-200 In Stock 149-200
1184706
149-200 Nut, Clamp Hex Nut (uses 2) $0.60 More Info
154-16VS In Stock 154-16VS
1192350
154-16VS Shim, Spool Shaft Shim
Direct product replacement:
$0.75 More Info
156-12VS In Stock 156-12VS
1192351
156-12VS Drag Cover Assembly $3.20 More Info
156A-16VS Backordered. Not Available 156A-16VS
1192356
156A-16VS Pin More Info
156B-12VS In Stock 156B-12VS
1230626
156B-12VS Plate, Lock, Drag Cover $2.10 More Info
162-50 In Stock 162-50
1184795
162-50 Spring
Used on multiple models in different quantities.
$0.60 More Info
183-12V In Stock 183-12V
1226450
183-12V Frame Assembly $84.00 More Info
195-40 In Stock 195-40
1184955
195-40 Retaining "E" Ring
Used on multiple models in different quantities.
$1.10 More Info
302D-525MAG In Stock 302D-525MAG
1185255
302D-525MAG Magnet Spring $1.10 More Info
168-12VS In Stock 168-12VS
1230653
168-12VS Wrench
partimage
$12.45 More Info
168A-12VS  Discontinued. Not Available 168A-12VS 168A-12VS Wrench
partimage
More Info
168A-70 In Stock 168A-70
1184806
168A-70 Torque Wrench
FITS REELS CONTAINING "T" TORQUE HEAD SCREWS
$3.35 More Info
168-60 In Stock 168-60
1184802
168-60 Wrench
Fits 23-60, 23-16S knurled nuts (See details for list of reels)
$0.75 More Info
168-TANI In Stock 168-TANI 168-TANI Heavy Duty Penn Handle Nut Wrench by Alan Tani
Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts
$0.00 More Info
