Before Ordering Parts

Note that we have the standard reel and the bailess version here together, as they have many parts in common. Links to view the various schematics are below

View / Print Schematic (TRQS7-B) View / Print Schematic (TRQS7-BBLS Bail-Less) Request a Schematic View / Print Owners Manual Buy Reel Cover

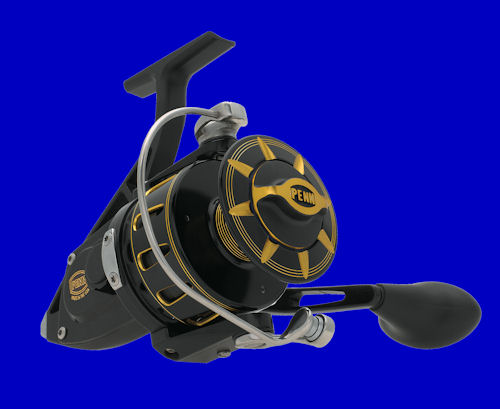

Model Specs:

More Info
  • Full metal body
  • One piece machined aluminum frame
  • Forged and machined aluminum spool, sideplates, and one piece handle arm
  • Fully sealed gearbox and drag system
  • Oversize HT-100 Versa-Drag system
  • 7 sealed stainless steel ball bearings
  • Machine-cut marine grade bronze main gear
  • Hardened stainless steel pinion gear
  • High strength 100% stainless steel bail system
Mono Cap
(yds/lb)
Braid Cap
(yds/lb)
Bearings Max Drag Gear Ratio Line Retrieve
490/15 • 340/20 • 300/25 470/50 • 390/65 • 340/80 7+1 41 5.1:1 40
Availability SKU Name Our Price
27-TS7MBSP In Stock 27-TS7MBSP
027 TS7MBSP
TRQS7 Bail-Less Conversion Kit (BLACK Only) $321.70 More Info
1-TS7B In Stock 1-TS7B
001-1200324
1-TS7B Housing Assembly (Black) $197.75 More Info
2L-TS7 In Stock 2L-TS7
002L-1200326
2L-TS7 Gasket, Left Housing Gasket $12.00 More Info
2R-TS7 In Stock 2R-TS7
002R-1200327
2R-TS7 Right Housing Gasket $12.00 More Info
7-TS7 In Stock 7-TS7
007-1192588
7-TS7 Keyed Drag Washer (uses 2) $1.35 More Info
6-950M In Stock 6-950M
006-1190981◉
6-950M Washer, Drag Washer HT-100™ (Large Rear Drag) $8.00 More Info
6-309 In Stock 6-309
006-1180917◉
6-309 Washer, Drag, HT-100™

MULTI USE See Description
Used on multiple models in different quantities.
$1.50 More Info
8-TS7 In Stock 8-TS7
008-1192589
8-TS7 Gear Assembly $157.40 More Info
15-TS7B In Stock 15-TS7B
015-1200328
15-TS7B Handle Assembly (Black) $49.10 More Info
15C-TS7 In Stock 15C-TS7
015C-1226716☀
15C-TS7 Handle Knob Cap $4.70 More Info
15E-TS7 In Stock 15E-TS7
015E-1229393
15E-TS7 Knob, Handle Knob $8.50 More Info
15S-TS7 Backordered. Still In Stock. Limit 5 15S-TS7
015S-1200419☀
15S-TS7 Seal, Handle Seal $7.95 More Info
19-TS7 In Stock 19-TS7
019-1200330
19-TS7 Pinion $88.20 More Info
19A-TS7 In Stock 19A-TS7
019A-1192606
19A-TS7 Pinion Bushing $1.15 More Info
20-TS7 In Stock 20-TS7
020-1191260☀
20-TS7 Pinion Ball Bearing $12.55 More Info
21S-TS7 In Stock 21S-TS7
021S-1191276☀
21S-TS7 Rotor Seal
Used on multiple models in different quantities.
$9.15 More Info
21-TS7 In Stock 21-TS7
021-1192641
21-TS7 Retaining Ring $1.90 More Info
20A-TS7 In Stock 20A-TS7
020A-1191263☀
20A-TS7 Gear Ball Bearing (uses 2) $8.80 More Info
23-750 In Stock 23-750
023-1181953☀
23-750 Screw

MULTI USE See Description

Used on multiple models in different quantities.
$1.15 More Info
24-TS7 In Stock 24-TS7
024-1191329
24-TS7 Bail Wire Assembly $32.55 More Info
25A-TS7 In Stock 25A-TS7
025A-1200331☀
25A-TS7 Bail Bushing (uses 2) $1.75 More Info
25B-TS7 In Stock 25B-TS7
025B-1200332
25B-TS7 Bail Washer (uses 2) $2.65 More Info
26-TS7MB In Stock 26-TS7MB
026-1225787
26-TS7MB Roller Stud (Black) $6.25 More Info
27-TS7B In Stock 27-TS7B
027-1200333
27-TS7B Rotor Assembly (Black) $216.20 More Info
27-TS7MB In Stock 27-TS7MB
027-1225799
27-TS7MB Rotor Assembly (Bailless)(Black) $309.75 More Info
27A-TS7BP Backordered. Still In Stock. Limit 1 27A-TS7BP
027A-1280971
27A-TS7BP Rotor Cup Arm, Line Roller Side (Black) $85.10 More Info
27B-TS7B In Stock 27B-TS7B
1229737
27B-TS7B Rotor Cup without Cam Arms (Black) $86.15 More Info
27C-TS7B Backordered. Still In Stock. Limit 1 27C-TS7B
027C-1229749
27C-TS7B Rotor Cup Arm, Cam Side (Black) $60.55 More Info
27E-TS7 In Stock 27E-TS7
027E-1200335
27E-TS7 Weight, Balance Weight $5.20 More Info
27E-TS7M In Stock 27E-TS7M
027E-1225788
27E-TS7M Weight, Bailless Balance Weight $3.40 More Info
28-TS7 In Stock 28-TS7
028-1200336
28-TS7 Trip Lever $1.75 More Info
28A-TS7 In Stock 28A-TS7
028A-1200337
28A-TS7 Trip Lever Guide $1.75 More Info
28B-TS7 In Stock 28B-TS7
028B-1200338
28B-TS7 Friction Ring Bushing (uses 2) $4.05 More Info
28C-TS7B In Stock 28C-TS7B
028C-1200339
28C-TS7B Rotor Flange (Black) $2.55 More Info
28D-TS7 In Stock 28D-TS7
028D-1200341
28D-TS7 Friction Ring $1.75 More Info
28F-TS7 In Stock 28F-TS7
1200342
28F-TS7 Trip Ramp $1.95 More Info
32-950M In Stock 32-950M
032-1182741
32-950M Spring, Bail Arm Spring $1.35 More Info
34-TS7 Backordered. Not Available 34-TS7
034-1191639
34-TS7 Bail Arm Assembly More Info
34B-TS7 In Stock 34B-TS7
025B-1200343
34B-TS7 Pivot Support $1.35 More Info
34C-760 In Stock 34C-760
034C-1191658
34C-760 Arm, Pivot Arm $1.15 More Info
35-TS7 In Stock 35-TS7
035-1205239
35-TS7 Line Roller $3.15 More Info
35A-950M In Stock 35A-950M
035A-1182951☀
35A-950M Bearing, Ball (uses 2) $7.00 More Info
36-750 In Stock 36-750
036-1183016☀
36-750 Screw

REPLACES ORIGINAL NUMBER 36-7500 ON SOME REELS

Used on multiple models in different quantities.
$1.15 More Info
36A-TS5 In Stock 36A-TS5
036A-1221606☀
36A-TS5 Lock Washer $0.95 More Info
36-TS7 In Stock 36-TS7
036-1200344
36-TS7 Trip Switch $3.40 More Info
38-9500 In Stock 38-9500
038-1183160
38-9500 Nut, Rotor Cup Nut $2.30 More Info
39-TS7 Discontinued. Still In Stock. Limit 1 39-TS7
039-1192686
39-TS7 Shaft, Spool Shaft

REPLACED BY PART NUMBER 39N-TS7

Direct product replacement: 39N-TS7 Spool Shaft $15.80
$17.40 More Info
39A-TS7 In Stock 39A-TS7
039A-1205721
39A-TS7 Pin Seal $4.40 More Info
39AN-TS7 In Stock 39AN-TS7
039AN-1251999
39AN-TS7 Drive Plate Seal $8.25 More Info
39B-760 In Stock 39B-760
039-1191765
39B-760 Pin, Locating Pin $1.35 More Info
39B-TS7 In Stock 39B-TS7
039B-1241979
39B-TS7 Locating Washer $0.95 More Info
39N-TS7 In Stock 39N-TS7
039N-1251997
39N-TS7 Spool Shaft

REPLACES ORIGINAL NUMBER 39-TS7 ON SOME REELS

$15.80 More Info
43-TS7 In Stock 43-TS7
043-1191815☀
43-TS7 Crosswind Block $10.40 More Info
43B-TS7 In Stock 43B-TS7
043B-1192690☀
43B-TS7 Crosswind Bearing Pilot $3.50 More Info
44-TS7 In Stock 44-TS7
044-1225769
44-TS7 Crosswind Shaft Retaining Screw $1.15 More Info
45L-TS7B In Stock 45L-TS7B
045L-1200345
45L-TS7B Cover, Left Side Cover (Black) $82.35 More Info
45R-TS7B In Stock 45R-TS7B
1200347
45R-TS7B Right Side Cover (Black) $86.60 More Info
46-4300 In Stock 46-4300
046-1183567☀
46-4300 Screw

MULTI USE See Description

Used on multiple models in different quantities.
$1.15 More Info
46-TS5M In Stock 46-TS5M
046-1225782
46-TS5M Line Roller Screw $1.15 More Info
46T-TS7  In Stock 46T-TS7
046T-1191914☀
46T-TS7 Screw
Used on multiple models in different quantities.
$1.15 More Info
47-TS7B In Stock 47-TS7B
047-1200349
47-TS7B Spool (Inc. Drags/Clicker) (Black) $119.70 More Info
47C-TS7 In Stock 47C-TS7
047C-1192691
47C-TS7 Drag Cover $3.50 More Info
47S-TS7 In Stock 47S-TS7
047S-1191959
47S-TS7 Drag Seal $1.90 More Info
48-5600 In Stock 48-5600
048-1183710☀
48-5600 Click Tongue Spring $1.35 More Info
48S-TS7 In Stock 48S-TS7
048S-1211091
48S-TS7 O-Ring $1.45 More Info
51-8000CV2 Discontinued. Still In Stock. Limit 5 51-8000CV2
051-1245795
51-8000CV2 Retaining Ring $1.25 More Info
52-TS7B In Stock 52-TS7B
052-1200351
52-TS7B Drag Knob Assembly (Black) $31.50 More Info
53S-TS7 In Stock 53S-TS7
053S-1211093
53S-TS7 Drag Knob Seal $9.50 More Info
55-TS7 In Stock 55-TS7
055-1192029▲
55-TS7 Ball Bearing
Used on multiple models in different quantities.
$14.50 More Info
55A-TS7 In Stock 55A-TS7
055A-1203081
55A-TS7 Bearing $8.30 More Info
57-760 In Stock 57-760
057-1192695
57-760 Washer, Keyed Drag Washer (Metal) (Small) $1.35 More Info
60W-TS7 In Stock 60W-TS7
1242146
60W-TS7 Spool Shim $1.15 More Info
62-TS7 In Stock 62-TS7
062-1200353
62-TS7 Trip Switch Spring $4.10 More Info
67A-70 In Stock 67A-70
067A-1184111
67A-70 Screw, Retaining, Pinion Retaining Screw $1.20 More Info
69B-4400 In Stock 69B-4400
069B-1184128☀
69B-4400 Retaining Ring $1.35 More Info
69B-50 In Stock 69B-50
069B-1184125☀
69B-50 Ring, Retaining Ring (E-Clip) $1.15 More Info
71-TS7 In Stock 71-TS7
071-1200354
71-TS7 Flat Head Screw $1.15 More Info
95A-TS7 In Stock 95A-TS7
1192704
95A-TS7 Rotor Nut Cup $2.05 More Info
95S-TS7 In Stock 95S-TS7
095S-1192188
95S-TS7 Spool Shaft Seal $8.50 More Info
98B-760 In Stock 98B-760
098B-1200355
98B-760 Clutch Bearing

REPLACED BY PART NUMBER 98C-760

Direct product replacement: 98C-760 Clutch/Sleeve Assembly $15.40
$18.85 More Info
101-TS5M In Stock 101-TS5M
101-1225783
101-TS5M Screw (uses 2) $1.15 More Info
110T-50 In Stock 110T-50
110T-1184449☀
110T-50 Quadrant Screw (uses 2) $1.15 More Info
117-TS7 In Stock 117-TS7
117-1242923
117-TS7 Drive Plate $13.60 More Info
117-TS7-P Discontinued. Still In Stock. Limit 1 117-TS7-P
117-TS7-P
117-TS7-P Drive Plate (1st Run, for Pin Style Shaft) $9.50 More Info
117A-TS7 In Stock 117A-TS7
117A-1192717
117A-TS7 Seal Cover $1.90 More Info
225-TS7 In Stock 225-TS7
225-1192739
225-TS7 Rear Bushing $1.50 More Info
226-TS7 In Stock 226-TS7
226-1192470
226-TS7 Rear Cap $5.35 More Info
227A-TS7B In Stock 227A-TS7B
227A-1200356
227A-TS7B Arm Cover (Black) (uses 2) $2.30 More Info
231-TS7 In Stock 231-TS7
231-1192740
231-TS7 Crosswind Gear Assembly (Stainless) $18.85 More Info
231A-TS7 In Stock 231A-TS7
231A-1192741☀
231A-TS7 Crosswind Gear Bushing $1.15 More Info
231B-TS7 In Stock 231B-TS7
231B-1192742☀
231B-TS7 Crosswind Gear Washer $4.45 More Info
232-TS7B In Stock 232-TS7B
232-1200358
232-TS7B Open Bearing Cover (Black) $5.55 More Info
233-TS7B In Stock 233-TS7B
233-1200360
233-TS7B Closed Bearing Cover (Black) $5.55 More Info
