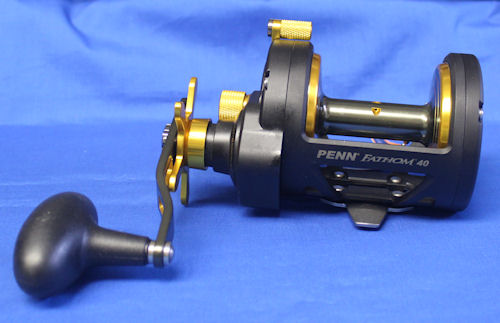

Model Specs:

More Info
  • Full metal body and sideplates keep precise gear alignment under heavy loads
  • Machine-cut marine grade bronze main gear with hardened stainless steel pinion
  • Versa-Drag™ system with HT-100™ washers
  • Live Spindle Design with free floating spool
  • Internally adjustable centrifugal braking system: Configuration Instructions
  • Line Capacity Rings
  • 5+1 shielded stainless steel bearing system
  • Instant anti-reverse bearing with silent back up ratchet
Mono Cap
(yds/lb)
Braid Cap
(yds/lb)
Bearings Max Drag Gear Ratio Line Retrieve
390/30
330/40
240/50
825/50
675/65
575/80
5+1 25 lbs 6.0:1 40
Availability SKU Name Our Price
1-FTHSD40 In Stock 1-FTHSD40
001-1242825
1-FTHSD40 Plate, Handle Side Plate Assembly $22.70 More Info
3-FTHSD25N In Stock 3-FTHSD25N
003-1242817
3-FTHSD25N Bridge $9.95 More Info
4-60 In Stock 4-60
004-1180755♦
4-60 Washer, Hard Fiber Spacer (Under Main Gear) $1.15 More Info
P304FTHSD481 In Stock P304FTHSD481
PN2000
P304FTHSD481 Custom Stainless Steel 4.8:1 High Speed Gear Set (Optional) $59.99 More Info
5-FTHSD12 In Stock 5-FTHSD12
005-1242789
5-FTHSD12 Gear, Main Gear $18.85 More Info
6-TRQ40 In Stock 6-TRQ40
006-1237037◉
6-TRQ40 Washer, Drag, HT100&8482; Drag Washer
Used on multiple models in different quantities.
$1.15 More Info
7H-FTHSD12 In Stock 7H-FTHSD12
1242788
7H-FTHSD12 Washer, Heavy Metal Drag Washer $2.55 More Info
8-FTH20LW In Stock 8-FTH20LW
008-1188709☀
8-FTH20LW Washer, Spring Washer (uses 2) $1.15 More Info
9-FTH20LW In Stock 9-FTH20LW
009-1188708☀
9-FTH20LW Sleeve, Spacer Sleeve $3.45 More Info
10-FTH20LW In Stock 10-FTH20LW
010-1188713▲
10-FTH20LW Star Drag Wheel $8.20 More Info
10A-FTH20LW In Stock 10A-FTH20LW
010A-1188711☀
10A-FTH20LW Retainer, Click, Star Click Retainer $1.15 More Info
10B-FTH20LW In Stock 10B-FTH20LW
010B-1188710☀
10B-FTH20LW Washer, Click, Star Click Washer $1.15 More Info
10C-525MAG2 In Stock 10C-525MAG2
010C-1188712☀
10C-525MAG2 Spring, Star Click Spring $1.15 More Info
11-FTHSD25N In Stock 11-FTHSD25N
011-1242818☀
11-FTHSD25N Jack, Eccentric Jack $1.80 More Info
12-555 In Stock 12-555
012-1181271☀
12-555 Yoke, Pinion Yoke (Brass) $1.70 More Info
12-FTHSD12 In Stock 12-FTHSD12
012-1318919
12-FTHSD12 Yoke, Pinion Yoke (Stainless) $1.70 More Info
12A-FTH20LW In Stock 12A-FTH20LW
012A-1208062
12A-FTH20LW Bushing, Yoke Post Bushing (uses 2) $1.15 More Info
12A-FTHSD12 In Stock 12A-FTHSD12
1372972
12A-FTHSD12 Bushing, Yoke Post Bushing (uses 2) $1.15 More Info
13-FTHSD12 In Stock 13-FTHSD12
013-1242790
13-FTHSD12 Gear, Pinion Gear $11.20 More Info
13R-TRQ40 In Stock 13R-TRQ40
013R-1229364
13R-TRQ40 Retaining Ring $1.15 More Info
15-FTH20LW In Stock 15-FTH20LW
015-1188675☀
15-FTH20LW Dog, Anti-Reverse Dog
Used on multiple models in different quantities.
$1.70 More Info
16-FTH20LW In Stock 16-FTH20LW
016-1188686☀
16-FTH20LW Screw, Bridge Screw
Used on multiple models in different quantities.
$1.65 More Info
18-FTH20LW In Stock 18-FTH20LW
018-1188688☀
18-FTH20LW Spring, Pinion Yoke Spring (uses 2) $1.15 More Info
18A-FTH20LW In Stock 18A-FTH20LW
018A-1188714☀
18A-FTH20LW Washer, Keyed Spring Washer

REPLACES ORIGINAL NUMBER 18A-20 ON SOME SCHEMATICS

$1.15 More Info
19-FTH20LW In Stock 19-FTH20LW
019-1188691☀
19-FTH20LW Eccentric $2.70 More Info
20-FTHSD12 In Stock 20-FTHSD12
020-1242806☀
20-FTHSD12 Spring, Eccentric Spring $1.15 More Info
21-FTHSD25N In Stock 21-FTHSD25N
021-1242831
21-FTHSD25N Lever, Eccentric Lever $11.55 More Info
22-FTH20LW In Stock 22-FTH20LW
022-1188690☀
22-FTH20LW Screw, Eccentric Screw $1.15 More Info
23-FTH20LW In Stock 23-FTH20LW
023-1208117☀
23-FTH20LW Screw, Handle Screw $8.70 More Info
23A-FTH20LW In Stock 23A-FTH20LW
023A-1188717☀
23A-FTH20LW Screw, Handle Lock Screw

REPLACES ORIGINAL NUMBER 23A-20 ON SOME SCHEMATICS

$1.15 More Info
23B-FTH20LW In Stock 23B-FTH20LW
023B-1207784☀
23B-FTH20LW Washer, Handle Screw Washer $1.15 More Info
24-FTHSD12 In Stock 24-FTHSD12
024-1242787▭
24-FTHSD12 Handle, Black & Gold, Rubberized Football Knob
FITS: Type [V] Bridge/Sleeve

REPLACES ORIGINAL NUMBER 24-20 and replaced by 24-FTH20LW ON SOME REELS

$19.85 More Info
24A-FTH20LW In Stock 24A-FTH20LW
024A-1188715☀
24A-FTH20LW Washer, Handle Thrust Washer $1.15 More Info
26-FTH20LW In Stock 26-FTH20LW
026-1188692☀
26-FTH20LW Bushing
Used on multiple models in different quantities.
$1.15 More Info
026A-FTHSD12 In Stock 026A-FTHSD12
026A-1242792☀
26A-FTHSD12 Washer $1.15 More Info
26B-FTH20LW In Stock 26B-FTH20LW
026B-1208114☀
26B-FTH20LW Cap, Spool, Tension Control Cap (CAP ONLY) $3.85 More Info
26B-FTH20LWSP In Stock 26B-FTH20LWSP
026B-FTH20LWSP▲
26B-FTH20LWSP Spool Tension Control Cap Kit

Six Piece Cap Kit Assembly
$11.85 More Info
26D-525MAG2 In Stock 26D-525MAG2
026D-1125769☀
26D-525MAG2 Spring, Spool Click Tension Spring $1.70 More Info
26F-525MAG2 In Stock 26F-525MAG2
026F-1125768☀
26F-525MAG2 Ratchet, Spool Tension Ratchet (Inner) $1.15 More Info
26G-525MAG2 In Stock 26G-525MAG2
026G-1125772☀
26G-525MAG2 Ratchet, Tension, Spool Tension Ratchet (Outer) $1.15 More Info
26R-525MAG2 In Stock 26R-525MAG2
026R-1214654☀
26R-525MAG2 Ring, Retaining $1.15 More Info
27-FTHSD40 In Stock 27-FTHSD40
027-1242826
27-FTHSD40 Plate, Non-Handle Side Plate Assembly $18.90 More Info
27D-FTHSD12 In Stock 27D-FTHSD12
027D-1242794☀
27D-FTHSD12 Centrifugal Brake Path $3.50 More Info
29-FTHSD40 Backordered. Not Available 29-FTHSD40
029-1242827
29-FTHSD40 Spool (only) More Info
29L-FTHSD40 In Stock 29L-FTHSD40
029L-1242839
29L-FTHSD40 Spool Assembly $75.50 More Info
33-16VS In Stock 33-16VS
033-1191592▲
33-16VS Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey)

REPLACES ORIGINAL NUMBERS 33-16S, 33-TRQS ON SOME REELS

$19.90 More Info
33-113 Discontinued. Not Available 33-113
033-113
33-113 Clamp, Rod Clamp (Thick) (Graphite) (Black)

REPLACED BY PART NUMBER 33N-113

More Info
33N-113 In Stock 33N-113
033N-1182754☘
33N-113 Clamp, Rod Clamp with Side Ring (Thick) (Graphite) (Black)

REPLACES ORIGINAL NUMBER 33-113 ON SOME REELS

$5.35 More Info
33-TRQ In Stock 33-TRQ
033-1290729▲
33-TRQ Clamp, Rod Clamp (Thick) (Aluminum) (Black) $1.50 More Info
33-TRQS In Stock 33-TRQS
033-1365544▲
33-TRQS Clamp, Rod Clamp (Thick) (Aluminum) (Silver) $8.50 More Info
33C-TRQ40 In Stock 33C-TRQ40
033C-1229936▭
33C-TRQ40 Kit, Rod Clamp Kit $14.80 More Info
33i-113SP In Stock 33i-113SP
033i-113SP▭
33i-113SP Kit Clamp, Rod Clamp with Ring (Thick) (Iron Alloy) (Grey) (7pc Kit) $29.00 More Info
33N-113SP In Stock 33N-113SP
033N-1180382▭
33N-113SP Clamp, Rod, KIT: (Thick) Graphite Clamp with Studs and Nuts $13.25 More Info
34-45 In Stock 34-45
034-1182788▲
34-45 Screw, Rod Clamp Screw (Shorter for Thick Clamps) ONLY (uses 2)

This is just the stud

114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$1.35 More Info
34C-45 In Stock 34C-45
034C-1182862▲
34C-45 Screw With Nuts, for Thick Style Rod Clamp (uses 2)
114 Fits Frame Posts Version.
114H Fits Frame Posts Version.
$2.70 More Info
35-FTH20LW In Stock 35-FTH20LW
035-1188656☀
35-FTH20LW Tongue, Click Tongue $1.70 More Info
36-FTHSD25N Backordered. Still In Stock. Limit 2 36-FTHSD25N
036-1242819
36-FTHSD25N Button, Click Button $1.80 More Info
36A-FTH20LW Backordered. Still In Stock 36A-FTH20LW
036A-1208113☀
36A-FTH20LW Washer, Click Washer $1.15 More Info
36B-FTH20LW In Stock 36B-FTH20LW
036B-1188651☀
36B-FTH20LW Washer, Click, PVC Click Washer $1.15 More Info
38-FTH20LW In Stock 38-FTH20LW
038-1188698☀
38-FTH20LW Screw
Used on multiple models in different quantities.
$1.15 More Info
38A-FTH20LW In Stock 38A-FTH20LW
038A-1188649☀
38A-FTH20LW Washer, Flat
Used on multiple models in different quantities.
$1.15 More Info
39-FTH20LW In Stock 39-FTH20LW
039-1188638
39-FTH20LW Screw
Used on multiple models in different quantities.
$1.15 More Info
40-TRQ40 In Stock 40-TRQ40
040-1230004
40-TRQ40 Bushing, Non-Handle Side Spool Bushing $3.55 More Info
40A-FTHSD12 In Stock 40A-FTHSD12
040A-1242804
40A-FTHSD12 Retainer, Bearing Retainer $1.60 More Info
40B-FTHSD12 In Stock 40B-FTHSD12
040B-1242805
40B-FTHSD12 Protector, Bearing Protector $1.45 More Info
40C-525MAG2 In Stock 40C-525MAG2
040C-1208115☀
40C-525MAG2 Washer, Thrust Washer (Metal) $1.15 More Info
40D-525MAG2 In Stock 40D-525MAG2
040D-1125771☀
40D-525MAG2 Washer, Thrust Washer $1.15 More Info
40-FTH20LW In Stock 40-FTH20LW
040-1188661☀
40-FTH20LW Bearing, Ball Bearing
Used on multiple models in different quantities.
$34.10 More Info
55-525MAG2 In Stock 55-525MAG2
055-1214665▲
55-525MAG2 Bearing, Ball Bearing
Used on multiple models in different quantities.
$6.65 More Info
55A-525MAG2 In Stock 55A-525MAG2
055A-1214666☀
55A-525MAG2 Bearing, Ball Bearing (6x10x2.5) $6.65 More Info
55L-965 In Stock 55L-965
055L-1192031☀
55L-965 Bearing, Ball Bearing
Used on multiple models in different quantities.
$10.00 More Info
62-FTH20LW In Stock 62-FTH20LW
062-1188664☀
62-FTH20LW Spring, Click Spring $4.80 More Info
62C-FTH20LW In Stock 62C-FTH20LW
062C-1188654☀
62C-FTH20LW Screw
Used on multiple models in different quantities.
$1.15 More Info
66-FTHSD12 In Stock 66-FTHSD12
066-1242797☀
66-FTHSD12 Brake, Centrifugal Brake $5.05 More Info
66B-FTHSD12 In Stock 66B-FTHSD12
066B-1242798☀
66B-FTHSD12 Screw (uses 3) $1.15 More Info
69-FTH20LW In Stock 69-FTH20LW
069-1188657☀
69-FTH20LW Retainer (E-clip)
Used on multiple models in different quantities.
$1.15 More Info
69A-FTH20LW In Stock 69A-FTH20LW
069A-1188659☀
69A-FTH20LW Retainer 3x7 (E-clip) $1.15 More Info
71B-TRQ40 In Stock 71B-TRQ40
071B-1230226
71B-TRQ40 Driver, Spool Driver $3.40 More Info
71C-TRQ40 In Stock 71C-TRQ40
071C-1230227☀
71C-TRQ40 Ring, Retaining Ring (Hex) $1.15 More Info
71L-FTHSD40 In Stock 71L-FTHSD40
071L-1242828
71L-FTHSD40 Shaft, Spool Shaft $6.95 More Info
86-49L In Stock 86-49L
086-1184251☀
86-49L Washer, Drag, Metal Drag Washer ONLY
Used on multiple models in different quantities.
$1.35 More Info
98-FTH20LW In Stock 98-FTH20LW
098-1188700☀
98-FTH20LW Shaft, Main Gear Shaft $9.85 More Info
98R-FTHSD12 In Stock 98R-FTHSD12
098R-1242800☀
98R-FTHSD12 Ratchet, Anti-Reverse Ratchet $3.00 More Info
98W-FTHSD12 In Stock 98W-FTHSD12
098W-1242801
98W-FTHSD12 Washer, Ratchet Thrust Washer $1.65 More Info
120-SQLLW In Stock 120-SQLLW
120-1308766☀
120-SQLLW 'O' ring (O-ring)
Used on multiple models in different quantities.
$1.50 More Info
149-45 In Stock 149-45
149-1184702♦
149-45 Nut, Clamp, Long, for Thick Clamps (uses 2)
Used with the graphite clamps 33-114H2, 33-340, 33N-113 and the iron alloy clamp 33i-113
$1.45 More Info
149-200 In Stock 149-200
149-1184706☀
149-200 Nut, Clamp Hex Nut (uses 2) $1.15 More Info
154-FTHSD12 In Stock 154-FTHSD12
154-1242803☀
154-FTHSD12 Shim (as needed) $1.15 More Info
183-FTHSD40 In Stock 183-FTHSD40
183-1242829
183-FTHSD40 Frame Assembly $58.00 More Info
168-115 In Stock 168-115
168-1184804☘
168-115 Wrench
FITS 23-50S, 23-114, 23M-114, 23-116, 23-220, 23-FTH20LW, 23-16S, 23-60 knurled nuts
$1.15 More Info
168-TANI In Stock 168-TANI
168-TANi▭
168-TANI Heavy Duty Penn Handle Nut Wrench by Alan Tani
Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts
$20.00 More Info
Trusted SSL Certificate
