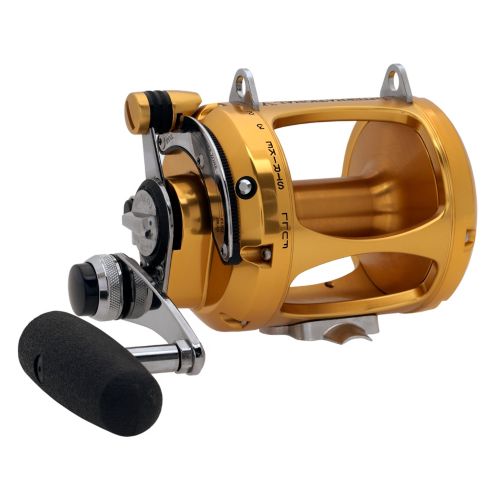

Model Specs:

More Info
  • Full metal body and sideplates keep precise gear alignment under heavy loads
  • Quick-Shift™ 2-speed system easily shifts into high or low gear
  • Push-To-Turn™ preset knob eliminates accidental changes to the drag
  • Dura-Drag™ washers virtually eliminate hesitation, even under extreme drag settings
  • Ratcheted drag lever prevents "drag creep" caused by hours of trolling and vibrations
  • Shielded stainless steel ball bearings
  • Stainless steel reel stand
  • Braid Ready to handle the strain that braided lines put on a reel
  • 70VS and 80VSW have titanium handle blank
  • Ultimate adjustable clicker available on 12 size only
Mono Cap
(yds/lb)
Braid Cap
(yds/lb)
Bearings Max Drag Gear Ratio Line Retrieve
900/30
550/50
480/60
1525/65
1325/80
1125/100
4 23lbs. / 30lbs. 3.8:1 / 1.6:1 37/15
Availability SKU Name Our Price
V Series Design Change Housings/Stands/Studs   V Series Design Change Housings/Stands/Studs
How to tell WHICH version of the V reel you have? You must identify as there are differences in the parts. Click to read more!
International Reel Not Shifting?   International VS or GLD Reel Not Shifting?
1-30VS Discontinued. Not Available 1-30VS
001-1180415
1-30VS Plate, Handle Side Plate (Gold)
Direct product replacement: 1N-30VS Plate, Handle Side Plate Assembly (Gold) $189.40
More Info
1N-30VS In Stock 1N-30VS
001N-1180415
1N-30VS Plate, Handle Side Plate Assembly (Gold)

REPLACES ORIGINAL NUMBER 1-30VS ON SOME REELS

$189.40 More Info
2-30VS In Stock 2-30VS
002-1180592
2-30VS Ring, Quadrant Ring $15.45 More Info
2A-30VS In Stock 2A-30VS
002A-1180655
2A-30VS Spacer, Quadrant Spacer $4.70 More Info
4-12LT In Stock 4-12LT
004-1180748☀
4-12LT Washer, Teflon Washer

MULTI USE See Description

Used on multiple models in different quantities.
$1.15 More Info
4-30VS In Stock 4-30VS
004-1180752
4-30VS Washer

MULTI USE See Description

$3.00 More Info
5-30VSHS In Stock 5-30VSHS
005-1180815
5-30VSHS Gear, Main Gear (High Speed) $38.40 More Info
5-30VSLS In Stock 5-30VSLS
005-1180816
5-30VSLS Gear, Main Gear (Low Speed) $31.15 More Info
7A-30VS In Stock 7A-30VS
007A-1181032
7A-30VS Washer, Drag, Metal $26.50 More Info
13-30VSW In Stock 13-30VSW
013-1181290
13-30VSW Gear, Pinion Gear $76.65 More Info
13B-30VSW In Stock 13B-30VSW
013B-1181367
13B-30VSW Sleeve, Spool Sleeve $7.50 More Info
13B-70 In Stock 13B-70
013B-1181371
13B-70 Sleeve, Pinion Gear (Brass) $2.70 More Info
14-50 In Stock 14-50
014-1181391☀
14-50 Spring, Flat Dog Spring (uses 2) $3.85 More Info
15-50 In Stock 15-50
015-1181425☀
15-50 Dog (uses 2) $1.20 More Info
18-30 In Stock 18-30
018-1181610☀
18-30 Spring, Clutch, Disc Clutch Spring, Thin

MULTI USE See Description

Used on multiple models in different quantities.
$1.70 More Info
18B-965 In Stock 18B-965
018B-1181631☀
18B-965 Spring

MULTI USE See Description

$1.15 More Info
18C-15KG In Stock 18C-15KG
018C-1181632☀
18C-15KG Spring
(Also part of 170-130VS, 124L-30VS, 124L-16VS, 124L-50VS assemblies)
Used on multiple models in different quantities.
$1.15 More Info
18H-30VS In Stock 18H-30VS
018H-1181634☀
18H-30VS Spring, Shift (Heavy) $1.50 More Info
18L-30VS In Stock 18L-30VS
018L-1181637☀
18L-30VS Spring, Shift Spring (Light) $2.35 More Info
19-30VS In Stock 19-30VS
019-1181643
19-30VS Cam, Eccentric Cam $36.45 More Info
20-704 In Stock 20-704
020-1181790☀
20-704 Bearing, Ball Bearing

REPLACES ORIGINAL PART NUMBER 20-700, 20L-704 ON SOME REELS

Used on multiple models in different quantities.
$18.55 More Info
21-30VS In Stock 21-30VS
021-1181828
21-30VS Lever, Eccentric Lever $11.60 More Info
22-109 In Stock 22-109
022-1181912☀
22-109 Screw (SEMS 540 x 156)

MULTI USE See Description

Used on multiple models in different quantities.
$1.70 More Info
23-30VS In Stock 23-30VS
023-1181933☀
23-30VS Screw, F/Handle/Shift Button $15.00 More Info
24-30VS In Stock 24-30VS
024-1181972▭
24-30VS Handle, Chrome, Large Rubberized Knob
FITS: Type [G] Bridge/Sleeve
$42.95 More Info
24C-50 Discontinued. Not Available 24C-50
024C-24C-50
24C-50 Cap, Handle Knob Cap, Plastic

Replaced by 24C-50M
Direct product replacement: 24C-50M Cap, Handle Knob Cap, Rubber $2.90
More Info
24C-50M In Stock 24C-50M
024C-1191334☀
24C-50M Cap, Handle Knob Cap, Rubber

REPLACES ORIGINAL NUMBER 24C-50 ON SOME REELS

$2.90 More Info
25-50 Discontinued. Not Available 25-50
025-1182103
25-50 Knob, Handle Knob, Original Hard Plastic

REPLACED BY PART NUMBER 25-50M

More Info
25-50M Discontinued. Not Available 25-50M
025-1191345
25-50M Knob, Handle, Soft Grip

REPLACES ORIGINAL NUMBER 25-50 ON SOME REELS

More Info
25S-50M Backordered. Still In Stock. Limit 10 25S-50M
025S-1206009
25S-50M Knob, Handle, Soft Grip, Stainless Stud

REPLACES ORIGINAL PART NUMBER 25-50M ON SOME REELS

$18.30 More Info
25-50ViSSP Backordered. Still In Stock 25-50ViSSP
025-50ViSSP▭
25-50ViSSP VIS Molded Knob Assembly KIT
This is also an UPGRADED knob kit for any older Penn reel that uses the 91N-50 Rivet
More Info
27-30VS In Stock 27-30VS
027-1182159
27-30VS Plate, Non-Handle Side (Gold) $116.95 More Info
29L-30VSW In Stock 29L-30VSW
029L-1182487
29L-30VSW Spool, Aluminum (Gold Finish) $172.15 More Info
30-20T Backordered. Still In Stock. Limit 1 30-20T
030-1182601
30-20T Stand $28.15 More Info
31T-70 In Stock 31T-70
031T-1182700☀
31T-70 Screw, Short, Torq Head
Used on multiple models in different quantities.
$1.15 More Info
31T-80 In Stock 31T-80
031T-1182701☀
31T-80 Screw, Frame
Used on multiple models in different quantities.
$1.15 More Info
33C-70 In Stock 33C-70
033C-1182771▭
33C-70 Rod Clamp Kit Clamp/Studs/Nuts/Wrench $48.80 More Info
33-70 Discontinued. Not Available 33-70
033-1182753
33-70 Rod Clamp, Aluminum, Black with Ring

REPLACED BY PART NUMBER 33N-70

More Info
33N-70 In Stock 33N-70
033N-1191619☘
33N-70 Rod Clamp, Anodized Cast Iron with Ring

REPLACES ORIGINAL NUMBER 33-70 ON SOME REELS

$23.35 More Info
34-70 In Stock 34-70
034-1182793▲
34-70 Screw, Rod Clamp Screw ONLY (uses 2)
USED WITH CAST IRON CLAMP 33N-70
$6.30 More Info
34C-70 Backordered. Still In Stock. Limit 2 34C-70
034C-1182865▲
34C-70 Screw With Nut, for Rod Clamp (uses 2) $8.50 More Info
35-70 In Stock 35-70
035-1182902
35-70 Click Tongue $6.45 More Info
36-700 In Stock 36-700
036-1183014☀
36-700 Nut, Locking Nut

REPLACES ORIGINAL NUMBER 36-710 ON SOME REELS

$2.05 More Info
36N-50 Backordered. Not Available 36N-50
036N-1183047☀
36N-50 Button, Click Button (ONLY) (New Version)

MULTI USE See Description

REPLACES ORIGINAL NUMBER 36N-50 ON SOME REELS

More Info
36S-80ST In Stock 36S-80ST
036S-1183051☀
36S-80ST Cap, Click Button Cap $1.15 More Info
38-710 In Stock 38-710
038-1183157☀
38-710 Nut

MULTI USE See Description

$1.15 More Info
41-2.5FR In Stock 41-2.5FR
041-1183332
41-2.5FR Spring (3/8" dia.) $2.55 More Info
41-70 In Stock 41-70
041-1183328☀
41-70 Spring, Drag/Bearing Spring (1/2 inch dia.) $7.35 More Info
50-50VS In Stock 50-50VS
050-1191966
50-50VS Shield, Gear Stud Shield $6.30 More Info
50N-30S In Stock 50N-30S
050N-1183778
50N-30S Shield $6.85 More Info
52-910 In Stock 52-910
052-1183840☀
52-910 Ring, Retaining Ring $1.15 More Info
54-30T In Stock 54-30T
054-1183852☀
54-30T Lug, Harness Lug (uses 2) $3.70 More Info
55-80 Discontinued. Not Available 55-80
055-1183878▲
55-80 Bearing, Ball Bearing
Used on multiple models in different quantities.
Direct product replacement: 55S-80 Ball Bearing $9.60
More Info
55-80ST In Stock 55-80ST
055-1183879▲
55-80ST Bearing, Ball Bearing
Used on multiple models in different quantities.
$23.20 More Info
62-50 In Stock 62-50
062-1184022☀
62-50 Spring, Click Spring $1.20 More Info
62-545 In Stock 62-545
062-1184029☀
62-545 Spring, Click Spring
Used on multiple models in different quantities.
$1.15 More Info
63-30T In Stock 63-30T
063-1184045☀
63-30T Screw
Used on multiple models in different quantities.
$1.15 More Info
63-50 In Stock 63-50
063-1184046☀
63-50 Screw, Short, Handle Knob Screw $1.35 More Info
63A-50 In Stock 63A-50
063A-1184056☀
63A-50 Screw, Long, Handle Stud
Used on multiple models in different quantities.
$1.70 More Info
67-30VS In Stock 67-30VS
067-1184105☀
67-30VS Ring, Retaining C-Ring f/Shifter $1.35 More Info
67-70 In Stock 67-70
067-1184106
67-70 Washer, Pinion Gear Washer $1.15 More Info
67A-70 In Stock 67A-70
067A-1184111
67A-70 Screw, Retaining, Pinion Retaining Screw $1.20 More Info
69-30VS Discontinued. Still In Stock. Limit 2 69-30VS
069-69-30VS
69-30VS Locating Pin (uses 2)

LIMITED QUANTITIES AVAILABLE

$2.50 More Info
69C-30S In Stock 69C-30S
069C-1184131
69C-30S Ring, Retaining Ring (uses 2) $2.20 More Info
69C-245 In Stock 69C-245
069C-1184133☀
69C-245 Ring, Retaining Ring $2.55 More Info
81-50 In Stock 81-50
081-1184204
81-50 Ratchet $8.30 More Info
88-70 In Stock 88-70
088-1184284
88-70 Ball, Knob, Preset Ball Knob
Part of 124L-30VS Assembly on the 30VSW (Older) reel.
$1.15 More Info
91N-50 Backordered. Not Available 91N-50
091N-1184304
91N-50 Handle Rivet More Info
95-70 In Stock 95-70
095-1184307
95-70 Bushing. Click Tongue $6.95 More Info
95A-20 In Stock 95A-20
095A-1184310☀
95A-20 Washer, Click Bushing Washer $2.05 More Info
95A-50 In Stock 95A-50
095A-1184311☀
95A-50 Washer, Click Bushing Lock Washer $1.15 More Info
101-30 In Stock 101-30
101-1184403☀
101-30 Screw, Torx Head Screw
Used on multiple models in different quantities.
$1.15 More Info
101-50S In Stock 101-50S
101-1184404☀
101-50S Screw

MULTI USE See Description

Used on multiple models in different quantities.
$1.15 More Info
110A-30VS In Stock 110A-30VS
110A-1184440☀
110A-30VS Ring, Handle Screw Locking Ring $3.70 More Info
110B-30VS In Stock 110B-30VS
110B-1184446☀
110B-30VS Shifter Base $14.90 More Info
110C-30VS In Stock 110C-30VS
110C-1184447☀
110C-30VS Shift Button Retainer/Collar $8.05 More Info
Misc. Discontinued. Not Available Misc. 111-50 Reel Bag, Gold $0.00 More Info
112-30VS In Stock 112-30VS
112-1184456
112-30VS Knob, Eccentric Lever Knob Assembly (Gold) $30.60 More Info
112A-30VS In Stock 112A-30VS
112A-1184460
112A-30VS Sleeve, Drag Lever Knob Sleeve $9.55 More Info
112B-70 In Stock 112B-70
112B-1184464☀
112B-70 Screw, Eccentric Knob Screw (Gold) $8.30 More Info
117AN-50S In Stock 117AN-50S
117AN-1184495
117AN-50S Inner Drive Plate Assembly with Dura-Drag™ Washer

REPLACES ORIGINAL NUMBER 117A-50S

$71.60 More Info
117N-50S In Stock 117N-50S
117N-1184507▭
117N-50S Drive Plate Assembly with Dura-Drag™ Washer

REPLACES ORIGINAL NUMBER 117-50S

$59.60 More Info
119-24KG In Stock 119-24KG
019-1184515
119-24KG Plate, Hi/Low Gear Shift Coupling Plate $7.15 More Info
124-30VS Discontinued. Still In Stock. Limit 1 124-30VS
124-30VS
124-30VS Cover, Bridge Cover (part of 124L-30VS assembly)

LIMITED QUANTITIES AVAILABLE

REPLACED BY PART NUMBER 124L-30VS

Direct product replacement: 124L-30VS Cover, Bridge Cover Assembly $58.30
$25.00 More Info
124L-30VS Backordered. Still In Stock. Limit 5 124L-30VS
124L-184548
124L-30VS Cover, Bridge Cover Assembly

REPLACES ORIGINAL NUMBER 124-30VS ON SOME REELS

$58.30 More Info
128-50S Backordered. Still In Stock. Limit 5 128-50S
128-1184562
128-50S Pin, Low Gear Pin (uses 6) $2.40 More Info
133-30VS In Stock 133-30VS
133-1184602☀
133-30VS Plate, Retaining (for Shifter) $1.70 More Info
134-30VS In Stock 134-30VS
134-1184613
134-30VS Stud, Gear Stud $33.95 More Info
141-30VS In Stock 141-30VS
141-1184652
141-30VS Cam Follower $29.00 More Info
143-30 Discontinued. Not Available 143-30
143-1184671
143-30 Screw, Adjusting Screw More Info
144-30VS In Stock 144-30VS
144-1192340
144-30VS Pre-Set Knob (part of 124L-30VS assembly)
Direct product replacement: 124L-30VS Cover, Bridge Cover Assembly $58.30
$25.90 More Info
144-70 In Stock 144-70
144-1184686
144-70 Preset Knob (Part of Assembly) $23.55 More Info
149-70 In Stock 149-70
149-1184703▲
149-70 Nut, Clamp Nut, Long (uses 2) $4.40 More Info
154-80 In Stock 154-80
154-1184719☀
154-80 Shim, Gear Stud (uses 1 to 2) $1.70 More Info
156-30VS In Stock 156-30VS
156-1184736
156-30VS Cover, Drag Cover $6.65 More Info
156A-30VS In Stock 156A-30VS
156A-1184752☀
156A-30VS Pin, Lock Pin $1.70 More Info
156B-30VS In Stock 156B-30VS
156B-1184756☀
156B-30VS Plate, Lock Plate $2.55 More Info
161-30VS Discontinued. Still In Stock. Limit 2 161-30VS
161-1184786
161-30VS Bushing, Locating Pin Bushing (uses 2) $1.80 More Info
162-50 In Stock 162-50
162-1184795☀
162-50 Spring
Used on multiple models in different quantities.
$1.15 More Info
168-30VS In Stock 168-30VS
168-1184801▲
168-30VS Drag Cover and Shift Base Wrench
Fits Reels: International 16VS, 16VSX, 24KG, 30VSW, 50VSW, 80VSW, GLD50ii
$14.90 More Info
168A-70 In Stock 168A-70
168A-1184806▲
168A-70 T15 Torx Wrench
FITS REELS CONTAINING "T" TORX HEAD SCREWS
$4.05 More Info
168B-30VS Discontinued. Not Available 168B-30VS
168B-168B-30VS
168B-30VS Wrench, Drag Cover Wrench (Gold)
FITS REELS: Models 30VSW
More Info
168B-50VS Discontinued. Not Available 168B-50VS
168B-168B-50VS
168B-50VS Wrench, Drag Cover Wrench (Gold)
FITS REELS: Models 30VSW, 50VSW
$0.00 More Info
168B-50VS Discontinued. Not Available 168B-50VS
168B-1184807
168B-50VS Wrench, Drag Cover Wrench (Silver)
FITS REELS: Models 30VSW, 50VSW
$0.00 More Info
170-30VS Backordered. Still In Stock. Limit 5 170-30VS
170-1184809☀
170-30VS Catch Assembly $10.65 More Info
171-30VS In Stock 171-30VS
171-1184813
171-30VS Screw, Shift Plunger Screw $5.00 More Info
172-30VS Discontinued. Not Available 172-30VS
172-1184821
172-30VS Cap, Shift Button or Plunger Cap

REPLACED BY PART NUMBER 172N-30VS

More Info
172A-30VS In Stock 172A-30VS
172A-1184825
172A-30VS Spacer, Spring Spacer $1.70 More Info
172B-15KG In Stock 172B-15KG
172B-1184830
172B-15KG Button, Shift Release Button (High) $13.30 More Info
172B-30VS In Stock 172B-30VS
172B-1184831
172B-30VS Spacer $4.20 More Info
173-30VS In Stock 173-30VS
173-1184835☀
173-30VS Plate, Bearing Retainer or Shifter Catch Plate

MULTI USE See Description

$1.35 More Info
173-50VS In Stock 173-50VS
173-1184838
173-50VS Retainer, Bearing Retainer $8.30 More Info
173A-30VS In Stock 173A-30VS
173A-1184848
173A-30VS Shifter Catch Holder $3.70 More Info
183-30VSW Discontinued. Still In Stock. Limit 1 183-30VSW
183-1184881
183-30VSW Frame, Housing $142.30 More Info
195-40 In Stock 195-40
195-1184955☀
195-40 Retaining "E" Ring
Used on multiple models in different quantities.
$1.35 More Info
195A-30VS Discontinued. Not Available 195A-30VS
195A-1184958
195A-30VS Retaining Ring

REPLACED BY PART NUMBER RING 67-30VS

More Info
264-30T In Stock 264-30T
264-1185227
264-30T Gasket, Stand Gasket $2.20 More Info
PEN MEDRC Backordered. Not Available PEN MEDRC
1178862
MEDRC Cover, Reel Cover, Conventional, Size Medium

FITS REELS:
15LD, 15KG, 24KG
20, 30 INT, 30S, 30SW, 30T, 30TW, 30VW, 30VSW
50S, 50T, 50ST, 50VSX
114, 114L2, 114H, 114H2, 114H2SP, 114HLW, 114H2LW
340GT, 340GT2, 345GT, 345GT2
FTH60LW
GLD30, GLD30ii
SQL30VSW, SQL50LD, SQL60LD, SQL60LDLH

$0.00 More Info
Trusted SSL Certificate
