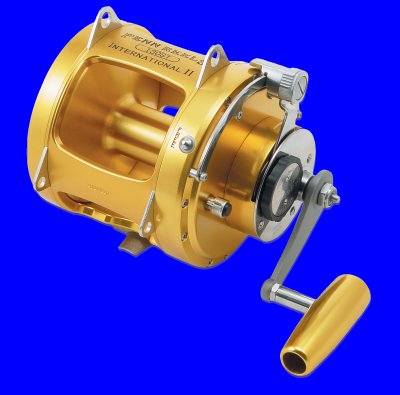

Penn 130ST - ST Two Speed Lever Drag Reel

View / Print Schematic Request a Schematic View / Print Owners Manual Buy Reel Cover

Model Specs:

More Info
  • Machine-cut, heat-treated stainless steel main and pinion gears and drag cams.
  • Machined, gold anodized one-piece frame.
  • Four aircraft-grade, sealed stainless steel ball bearings.
  • Stainless steel reel stand.
  • Loud, durable clicker.
  • Aluminum barrel handle.
  • forged and machined spool and side plates.
  • Push button shifting system, making gear changes easier than ever before, even during the heat of battle.
  • Adjustable pre-set.
Mono Cap
(yds/lb)		 Braid Cap
(yds/lb)		 Bearings Max Drag Gear Ratio Line Retrieve
950/130 4 2.2:1 High
Availability SKU Name Our Price
REEL DISCONTINUED BY PENN   REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

1-130ST Discontinued. Still In Stock. Limit 1 1-130ST
1180466 		1-130ST Plate, Handle Side Plate Assembly
This part will no longer be manufactured by Penn; Limited Quantities Available.
$317.55 More Info
2-130 In Stock 2-130
1180627 		2-130 Ring, Quadrant Ring $15.30 More Info
3-130ST Discontinued. Not Available 3-130ST
1180714 		3-130ST Bridge More Info
4-130 In Stock 4-130
1180769 		4-130 Washer, Thrust Washer $1.80 More Info
5-130HS Discontinued. Still In Stock. Limit 1 5-130HS
1180855 		5-130HS Gear, Main Gear (High Speed)

LIMITED QUANTITIES AVAILABLE
$61.45 More Info
5-130LS Discontinued. Not Available 5-130LS
1180856 		5-130LS Gear, Main Gear (Low Speed) More Info
6-155 In Stock 6-155
1180915 		6-155 Washer, Drag Washer HT-100™
MULTI USE See Description
Used on multiple models in different quantities.
$0.95 More Info
6-130 Discontinued. Not Available 6-130 6-130 Washer, Drag Washer HT-100™ (Original) (uses 2)
Direct product replacement: 6DN-130 Washer, Dura-Drag™ Washer (uses 2) $51.60
More Info
6DN-130 In Stock 6DN-130
1180980 		6DN-130 Washer, Dura-Drag™ Washer (uses 2)

REPLACES ORIGINAL NUMBERS 6/1 130, 6-130, 6A-130 AND 6D-130 ON SOME REELS
$51.60 More Info
7A-130 In Stock 7A-130
1181038 		7A-130 Washer, Drag, Metal Floating Drag Washer $49.65 More Info
13-130ST In Stock 13-130ST
1181332 		13-130ST Gear, Pinion Gear $99.75 More Info
15-130 In Stock 15-130
1181442 		15-130 Dog $5.55 More Info
16-130 In Stock 16-130
1181573 		16-130 Screw. Bridge Mounting Screw, Outer (uses 3) $1.25 More Info
16T-130 In Stock 16T-130
1181592 		16T-130 Screw
Used on multiple models in different quantities.
$1.10 More Info
18-60 In Stock 18-60
1181615 		18-60 Spring, Clutch Spring
Used on multiple models in different quantities.
$0.95 More Info
18-130 In Stock 18-130
1181620 		18-130 Spring, Clutch Spring (uses 2) $2.50 More Info
18-130S In Stock 18-130S
1181621 		18-130S Spring, Stud, Gear Stud Spring $1.10 More Info
19-130 Backordered. Still In Stock. Limit 1 19-130
1181666 		19-130 Cam, Eccentric Cam f/130 Internationals

LIMITED QUANTITIES AVAILABLE
$57.10 More Info
21-130ST Discontinued. Still In Stock. Limit 1 21-130ST
1181849 		21-130ST Lever, Eccentric Lever $29.20 More Info
23-130 1181947 In Stock 23-130 1181947
DSS-S31034 		23-130 | DSS-S31034 Locking Nut $4.60 More Info
24-130ST Discontinued. Not Available 24-130ST
1182006 		24-130ST Handle, Chrome, Large Gold Knob
FITS: Type [H] Bridge/Sleeve
More Info
27-130ST In Stock 27-130ST
1182203 		27-130ST Plate, Non-Handle Side Plate $158.10 More Info
29L-130 Discontinued. Still In Stock. Limit 1 29L-130
1182517 		29L-130 Spool, Aluminum (Gold Finish) $307.65 More Info
30-130ST Discontinued. Still In Stock. Limit 1 30-130ST
1182628 		30-130ST Stand $55.15 More Info
31T-130 In Stock 31T-130
1182702 		31T-130 Screw, Stand, Non-Handle Side (uses 4) $1.40 More Info
31T-130S Discontinued. Not Available 31T-130S
1191581 		31T-130S Screw. Stand, Handle Side (uses 4)

LIMITED QUANTITIES AVAILABLE
More Info
33-116 In Stock 33-116
1182756 		33-116 Clamp, Rod, Metal Rod Clamp, NO ring, Standard Weight $33.80 More Info
33-130ST In Stock 33-130ST
1182758 		33-130ST Rod Clamp, Metal, Ringed, Heavy Weight $35.85 More Info
33C-130ST In Stock 33C-130ST
1182777 		33C-130ST Clamp, Rod, KIT: Metal Clamp with Studs, Nuts and Wrench $46.65 More Info
33R-116 Discontinued. Not Available 33R-116
1182780 		33R-116 Rod Clamp, Metal, Ringed, Standard Weight

REPLACED BY PART NUMBER 33-130ST
Direct product replacement: 33-130ST Rod Clamp, Metal, Ringed, Heavy Weight $35.85
More Info
34-130ST In Stock 34-130ST
1182806 		34-130ST Screw, Clamp Screw (uses 2) $4.05 More Info
34C-130ST Discontinued. Still In Stock. Limit 10 34C-130ST
1182871 		34C-130ST Screw with Nut, for Rod Clamp (uses 2) $6.15 More Info
35-130SN In Stock 35-130SN
1182918 		35-130SN Tongue, Click Tongue

REPLACES ORIGINAL NUMBER 35-130S ON SOME REELS
$7.90 More Info
36-50 Discontinued. Not Available 36-50 36-50 Button, Click Button (Original Version)

REPLACED BY PART NUMBER 36C-50

Click for more information
More Info
36-700 In Stock 36-700
1183014 		36-700 Nut, Locking Nut

REPLACES ORIGINAL NUMBER 36-710 ON SOME REELS
$1.70 More Info
36N-50 In Stock 36N-50
1183047 		36N-50 Button, Click Button (ONLY) (New Version)

MULTI USE See Description

REPLACES ORIGINAL NUMBER 36N-50 ON SOME REELS
$15.20 More Info
36S-80ST Backordered. Still In Stock 36S-80ST
1183051 		36S-80ST Cap, Click Button Cap $1.15 More Info
38-710 In Stock 38-710
1183157 		38-710 Nut

MULTI USE See Description
$0.95 More Info
38T-130 In Stock 38T-130
1183175 		38T-130 Screw, Post (Torx Head)
Used on multiple models in different quantities.
$1.40 More Info
38T-130S In Stock 38T-130S
1183176 		38T-130S Screw, Post Screw $1.40 More Info
39T-130S Discontinued. Still In Stock. Limit 10 39T-130S
1183265 		39T-130S Screw, Quadrant, Long Quadrant Screw

LIMITED QUANTITIES AVAILABLE
$1.70 More Info
41-130 In Stock 41-130
1183331 		41-130 Spring, Bearing Spring, Non-Handle Side $2.10 More Info
46A-704 In Stock 46A-704
1183586 		46A-704 Screw (Pan Head)

MULTI USE See Description
$0.95 More Info
49-710 In Stock 49-710
1183741 		49-710 Spring

MULTI USE See Description
Used on multiple models in different quantities.
$0.95 More Info
50-130S Discontinued. Still In Stock. Limit 1 50-130S
1183756 		50-130S Shield $8.70 More Info
51-130ST Discontinued. Not Available 51-130ST
1183788 		51-130ST Handle Knob Assembly More Info
54-130 In Stock 54-130
1183860 		54-130 Lug, Harness Lug (uses 2) $5.00 More Info
54A-130 In Stock 54A-130
1183867 		54A-130 Lug, Rod Brace Lug $4.70 More Info
55-130 Backordered. Still In Stock. Limit 5 55-130
1183884 		55-130 Bearing, Ball Bearing

MULTI USE See Description
Used on multiple models in different quantities.
$29.10 More Info
56-130 In Stock 56-130
1183903 		56-130 Rod Brace ONLY $25.50 More Info
56C-130ST Backordered. Still In Stock. Limit 2 56C-130ST
1183912 		56C-130ST Rod Brace Assembly (front and back kit)

LIMITED QUANTITIES AVAILABLE
$78.10 More Info
56P-117 In Stock 56P-117
1183913 		56P-117 Pad, Rod Brace Rubber Pad
Used on multiple models in different quantities.
$1.10 More Info
59-130ST In Stock 59-130ST
1183978 		59-130ST Washer, Slotted Washer $1.35 More Info
62-50 In Stock 62-50
1184022 		62-50 Spring, Click Spring $1.00 More Info
63-30T In Stock 63-30T
1184045 		63-30T Screw
Used on multiple models in different quantities.
$0.95 More Info
69-130 In Stock 69-130
1184117 		69-130 Pin, Locating Pin (uses 2) $5.15 More Info
69B-130 In Stock 69B-130
1184126 		69B-130 Ring, Retaining Ring (E-clip) (uses 2) $2.40 More Info
69B-130S Discontinued. Still In Stock. Limit 5 69B-130S
1184127 		69B-130S Ring, Retaining Ring (E-clip) $3.00 More Info
81-130 In Stock 81-130
1184208 		81-130 Plate, Click Ratchet Plate $13.80 More Info
91-130ST In Stock 91-130ST
1184295 		91-130ST Shaft, Handle Shaft $17.95 More Info
91B-130ST In Stock 91B-130ST
1184303 		91B-130ST Screw, Handle Knob Screw $6.90 More Info
95-70 In Stock 95-70
1184307 		95-70 Bushing. Click Tongue $5.80 More Info
95A-20 In Stock 95A-20
1184310 		95A-20 Washer, Click Bushing Washer $1.70 More Info
95A-50 In Stock 95A-50
1184311 		95A-50 Washer, Click Bushing Lock Washer $0.95 More Info
101-30 In Stock 101-30
1184403 		101-30 Screw, Torx Head Screw

MULTI USE See Description
Used on multiple models in different quantities.
$0.95 More Info
101-130S In Stock 101-130S
1184406 		101-130S Screw, Coupling Plate Screw
Used on multiple models in different quantities.
$0.95 More Info
110-50 In Stock 110-50
1184436 		110-50 Screw
Used on multiple models in different quantities.
$0.95 More Info
110T-50 In Stock 110T-50
1184449 		110T-50 Quadrant Screw (uses 2) $0.95 More Info
112-130 In Stock 112-130
1184459 		112-130 Knob, Eccentric Lever Knob $54.60 More Info
112A-130 Discontinued. Still In Stock. Limit 1 112A-130
1184463 		112A-130 Screw, Eccentric Knob Screw

LIMITED QUANTITIES AVAILABLE
$24.00 More Info
113-130 In Stock 113-130
1184467 		113-130 Cap, Eccentric Lever Cap $40.80 More Info
117-130 In Stock 117-130
1184481 		117-130 Drive Plate (Outer) $27.85 More Info
117A-130 In Stock 117A-130
1184494 		117A-130 Drive Plate (Inner) $41.35 More Info
118-80S In Stock 118-80S
1184513 		118-80S Screw

MULTI USE See Description
$0.95 More Info
119-130S Discontinued. Still In Stock. Limit 1 119-130S
1184520 		119-130S Plate, Coupling Plate $6.15 More Info
123-50 In Stock 123-50
1184531 		123-50 Screw, Drag Cover (uses 4) $0.95 More Info
124-130ST Discontinued. Not Available 124-130ST
1184545 		124-130ST Cover, Bridge Cover More Info
125-130ST In Stock 125-130ST
1184560 		125-130ST Housing, Cam Housing (part of handle side plate) $41.50 More Info
128-130S Discontinued. Still In Stock. Limit 10 128-130S
1184565 		128-130S Pin f/ 5-130LS Gear (uses 6) $3.30 More Info
134-130S Discontinued. Still In Stock 134-130S
1184621 		134-130S Stud, Gear Stud
This part will no longer be manufactured by Penn; Limited Quantities Available.
$52.95 More Info
134A-130S Discontinued. Still In Stock. Limit 1 134A-130S
1184633 		134A-130S Bushing, Indicator Bushing

LIMITED QUANTITIES AVAILABLE
$9.50 More Info
134B-130S Discontinued. Still In Stock. Limit 1 134B-130S
1184635 		134B-130S Bushing, Bearing Spacer Bushing $15.00 More Info
141-130ST Discontinued. Not Available 141-130ST
1184659 		141-130ST Cam Follower More Info
142-130 In Stock 142-130
1184666 		142-130 Pin, Cam Follower Pin (uses 2) $3.45 More Info
143-130ST Discontinued. Not Available 143-130ST
1184677 		143-130ST Screw, Adjusting Screw More Info
144-130ST Backordered. Not Available 144-130ST
1184688 		144-130ST Knob, Plastic Pre-Set Knob More Info
144A-130ST Discontinued. Still In Stock. Limit 1 144A-130ST
1184691 		144A-130ST Plate, Preset Knob Plate $9.30 More Info
144B-130ST Backordered. Still In Stock. Limit 1 144B-130ST
1184692 		144B-130ST Insert, Preset Knob Insert $8.95 More Info
144C-130ST Discontinued. Not Available 144C-130ST
1184694 		144C-130ST Preset Knob Complete More Info
150-130ST Discontinued. Not Available 150-130ST
1184708 		150-130ST Button, Preset Lock Button More Info
152A-80T In Stock 152A-80T
1184714 		152A-80T Nut, Rod Clamp Acorn Nut (uses 2) $2.10 More Info
154-130 In Stock 154-130
1184722 		154-130 Shim, Spool Shaft Shim $1.00 More Info
155-130 In Stock 155-130
1184726 		155-130 Turn Buckle, for rod brace (1.436in or 36.50mm long)
Used on multiple models in different quantities.
$4.15 More Info
156-130 In Stock 156-130
1184745 		156-130 Cover, Drag Cover $13.80 More Info
157-130 In Stock 157-130
1184765 		157-130 Bushing, Quadrant Spacer Bushing (uses 2) $4.45 More Info
161-130 In Stock 161-130
1184790 		161-130 Bushing Locating/Stop Pin Bushing (uses 2) $3.45 More Info
162-130 In Stock 162-130
1184796 		162-130 Spring (uses 2)

MULTI USE See Description
$0.95 More Info
165-130 In Stock 165-130
1184799 		165-130 Hook Screw, RH Thread (2.615in or 66.42mm long) (uses 4) $2.80 More Info
168-116 In Stock 168-116
1192372 		168-116 Double Open End Wrench $0.95 More Info
168A-70 In Stock 168A-70
1184806 		168A-70 T15 Torx Wrench
FITS REELS CONTAINING "T" TORX HEAD SCREWS
$3.35 More Info
171-130S Discontinued. Still In Stock. Limit 5 171-130S
1184816 		171-130S Plunger $11.50 More Info
172A-130S Discontinued. Still In Stock 172A-130S
1184829 		172A-130S Pin, Plunger Pin (uses 2)
This part will no longer be manufactured by Penn; Limited Quantities Available.
$2.05 More Info
173-130S In Stock 173-130S
1184841 		173-130S Retainer, Gear Retainer $3.75 More Info
174-130S Discontinued. Still In Stock 174-130S
1184849 		174-130S Plug, Gear Stud Plug
This part will no longer be manufactured by Penn; Limited Quantities Available.
$1.35 More Info
183-130ST Discontinued. Not Available 183-130ST
1184903 		183-130ST Frame More Info
264-130ST In Stock 264-130ST
1185229 		264-130ST Gasket, Stand Gasket $2.50 More Info
PEN XXLRC In Stock PEN XXLRC
1178865 		XXLRC Cover, Reel Cover, Conventional, Size Extra-Extra Large

FITS REELS:
130VSX, 130ST, 117L

$19.99 More Info
Trusted SSL Certificate
