Model Specs:

More Info
  • Precision, stainless-steel pinion gear.
  • Alloy main gear.
  • Sealed oil ports for quick, easy lubrication.
  • Side plates reinforced with metal rings.
  • Chrome plated brass exposed metal components for corrosion resistance.
  • HT-100 multi-disc star drag system.
  • Loud, durable, easy-to-service clicker.
  • Light weight with black anodized spool.
  • Soft grip counterbalanced handle. (Early models had torpedo knobs). 109 has a dual knob handle.
Mono Cap
(yds/lb)
Braid Cap
(yds/lb)
Bearings Gear Ratio
275/15 2 3.75:1
Availability SKU Name Our Price
REEL DISCONTINUED BY PENN   REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

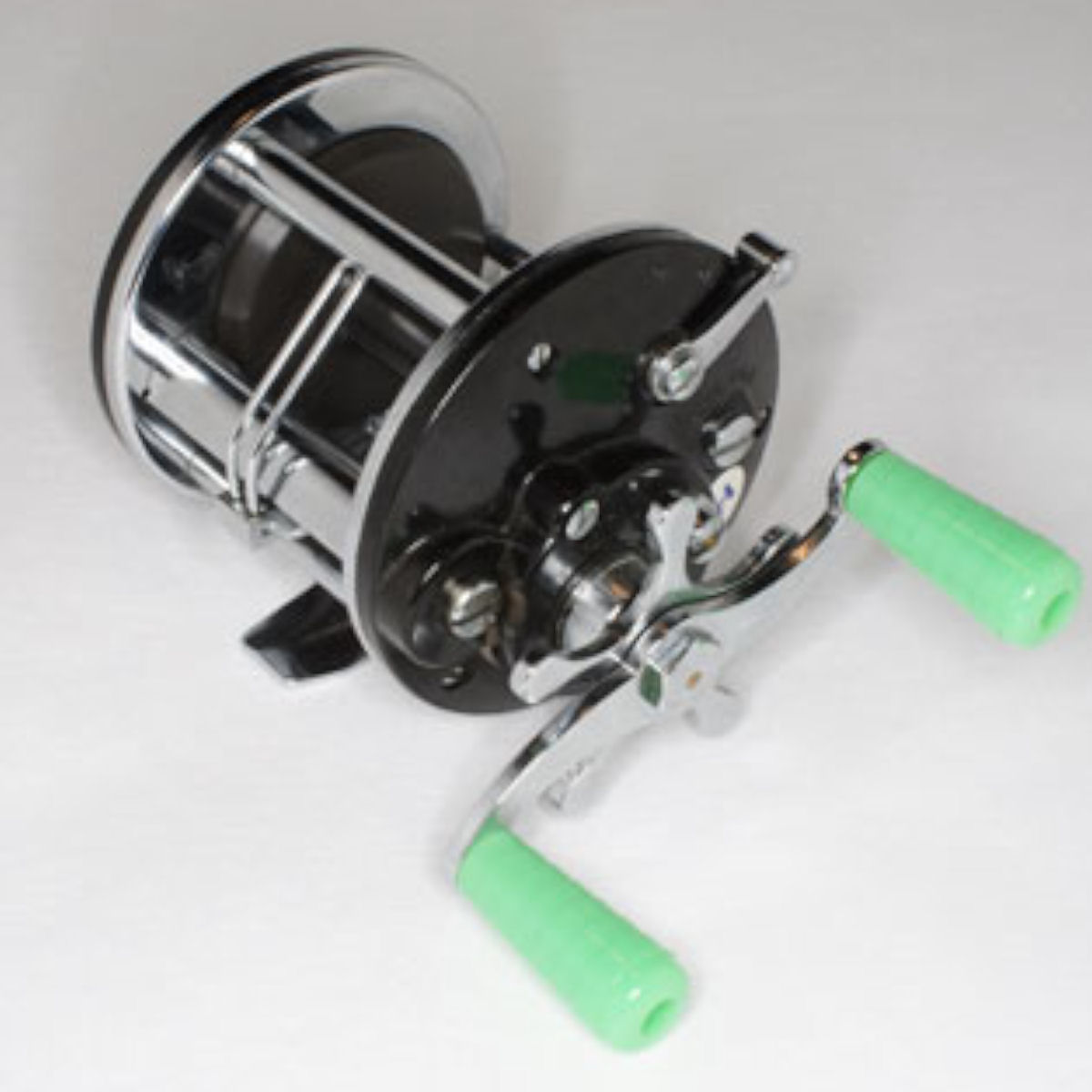

109M Convert Standard To Left Hand Parts 109M-LH 109M Convert Standard To Left Hand Parts
Conversion NOT available - Repair Parts ONLY
$0.00 More Info
1-109LH Discontinued. Still In Stock. Limit 1 1-109LH
1180446
1-109LH Plate, Non-Handle Side Plate (Left Hand) $33.00 More Info
2-109 In Stock 2-109
1180607
2-109 Side Ring (Chrome)

MULTI USE See Description

$5.50 More Info
3-109LH In Stock 3-109LH
1180696
3-109LH Bridge with Sleeve (Left Hand) $14.60 More Info
4-155 In Stock 4-155
1180772
4-155 Washer, Hard Fiber Spacer (Under Main Gear) $0.95 More Info
5-109LH   Backordered. Still In Stock. Limit 2 5-109LH
1180842
5-109LH Gear, Main Gear (Left Hand) $8.90 More Info
6-155SP In Stock 6-155SP
1180392
6-155SP Kit, Drag Washers, Drag Washer Kit HT-100™ with Metals (6 pcs) $8.35 More Info
6-155 In Stock 6-155
1180915
6-155 Washer, Drag Washer HT-100™
MULTI USE See Description
Used on multiple models in different quantities.
$0.95 More Info
6-155SD In Stock 6-155SD
CBT P#155
6-155SD Set, Drag Washers, CARBONTEX by SmoothDrag (Custom) $8.00 More Info
7-155 In Stock 7-155
1181014
7-155 Eared Metal Drag Washer ONLY $1.00 More Info
7C-155 In Stock 7C-155
1181047
7C-155 Washer, Drag, Metal Drag Washers (SET of 3) $5.55 More Info
8-60 In Stock 8-60
1181056
8-60 Washer, Black Tension Spring Washer (Belleville)

8-60 BLACK REPLACES ORIGINAL NUMBER 8-60 CHROME

Used on multiple models in different quantities.
Direct product replacement: 8-310GT2 Spring, Tension Spring, Chrome $1.10
$0.95 More Info
9-60 In Stock 9-60 9-60 Sleeve, Spacing Sleeve - (optional variations)
Variations allow for more/less play in handle - see description.
More Info
10-180LH Discontinued. Not Available 10-180LH
1181190
10-180LH Star Drag Wheel (Left Hand) More Info
13-109LH Discontinued. Still In Stock. Limit 2 13-109LH
1181315
13-109LH Gear, Pinion Gear (Left Hand)

LIMITED QUANTITIES AVAILABLE

$9.50 More Info
14-109 Discontinued. Still In Stock. Limit 2 14-109
1181394
14-109 Spring, Dog Spring $2.00 More Info
15-109  In Stock 15-109
1181434
15-109 Dog

LIMITED QUANTITIES AVAILABLE

$1.40 More Info
16-60CH In Stock 16-60CH
1181565
16-60CH Screw

REPLACES ORIGINAL PART NUMBER 16-60 ON SOME REELS

Used on multiple models in different quantities.
$0.95 More Info
17-60CH In Stock 17-60CH
1181594
17-60CH Screw, Bridge, Upper Bridge Screw

REPLACES ORIGINAL PART NUMBER 17-60

Used on multiple models in different quantities.
$0.95 More Info
19-109LH In Stock 19-109LH
1181660
19-109LH Eccentric (LEFT HAND)

LIMITED QUANTITIES AVAILABLE

$2.50 More Info
20-109LH Discontinued. Still In Stock. Limit 1 20-109LH
1181765
20-109LH Spring, Eccentric Spring (Left Hand) $1.00 More Info
21-109 In Stock 21-109
1181843
21-109 Lever, Eccentric Lever $2.10 More Info
22-109 In Stock 22-109
1181912
22-109 Screw (SEMS 540 x 156)

MULTI USE See Description

Used on multiple models in different quantities.
$1.40 More Info
23-180 Discontinued. Still In Stock. Limit 5 23-180
1181948
23-180 Screw, Handle Screw $7.15 More Info
24-85 Discontinued. Not Available 24-85
1181985
24-85 Handle, Narrow Plastic Knob
FITS: Type [A] Bridge/Sleeve

REPLACES ORIGINAL PART NUMBER 24-109 ON SOME REELS

More Info
24-109 Discontinued. Not Available 24-109
1181996
24-109 Handle, Dual Narrow Plastic Knobs
FITS: Type [A] Bridge/Sleeve

REPLACED BY PART NUMBER 24-85

Direct product replacement: 24-85 Handle, Narrow Plastic Knob $0.00
More Info
24-500-1-PC In Stock 24-500-1-PC
PC-JM-HDL
24-500-1-PC Offset Handle Blank ONLY (includes screw)
For PENN 112H, JigMaster 500/501/505/506 (Other PENN Reels)
$11.30 More Info
26-109 In Stock 26-109
1182115
26-109 Bearing, Handle Side Bearing $3.75 More Info
27-109LH Discontinued. Still In Stock. Limit 1 27-109LH
1182188
27-109LH Plate, Handle Side Plate $15.80 More Info
28-109 In Stock 28-109
1182367
28-109 Ring, Side Ring (Chrome) $3.30 More Info
29L-109 Discontinued. Still In Stock. Limit 5 29L-109
1182505
29L-109 Spool, Aluminum (Black) $27.60 More Info
30N-9 Discontinued. Still In Stock. Limit 2 30N-9
1182647
30N-9 Stand

REPLACES ORIGINAL NUMBER 30-109, 30-109S, 30-109F, 30-9 ON SOME OLDER REELS

$10.95 More Info
32-2 In Stock 32-2
1182706
32-2 Screw

MULTI USE See Description

Used on multiple models in different quantities.
$0.95 More Info
35-155 In Stock 35-155
1182919
35-155 Tongue, Click Tongue $3.45 More Info
36-109 Discontinued. Still In Stock. Limit 2 36-109
1182988
36-109 Button, Click Button $1.45 More Info
37-109  In Stock 37-109
1183064
37-109 Post, Frame Post

REPLACES ORIGINAL PART NUMBER 37-77 ON SOME REELS

Used on multiple models in different quantities.
$2.90 More Info
39-1 In Stock 39-1
1183177
39-1 Screw

MULTI USE See Description
Used with orignal 24-30S handle
Used on multiple models in different quantities.
$0.95 More Info
40-109 In Stock 40-109
1183269
40-109 Bearing, Left Side Bearing $4.40 More Info
41-109 In Stock 41-109
1183329
41-109 Spring, Bearing Spring $1.40 More Info
42-109 In Stock 42-109
1183345
42-109 Worm

REPLACES ORIGINAL NUMBER 42-9 ON SOME REELS

$3.20 More Info
43-109 In Stock 43-109
1183375
43-109 Bearing, Worm Bearing

MULTI USE See Description

$1.95 More Info
44N-109 In Stock 44N-109
1183469
44N-109 Bearing, Worm Bearing $2.80 More Info
45-109LH  In Stock 45-109LH
1183483
45-109LH Gear, Worm Gear (LEFT HAND)

LIMITED QUANTITIES AVAILABLE

$3.75 More Info
46-109LH  Discontinued. Not Available 46-109LH 46-109LH Line Guide (LEFT HAND) More Info
47-109 In Stock 47-109
1183614
47-109 Pawl, Line Guide Pawl $1.40 More Info
48-109 In Stock 48-109
1183699
48-109 Screw, Cover, Pawl Cover Screw Cap $1.30 More Info
50-109 In Stock 50-109
1183752
50-109 Shield, Worm Shield $3.45 More Info
57-109 In Stock 57-109
1183927
57-109 Spring

MULTI USE See Description

Used on multiple models in different quantities.
$0.95 More Info
58-109  In Stock 58-109
1183948
58-109 Post, Slotted Post $4.15 More Info
86-155 In Stock 86-155
1184259
86-155 Round Keyed Metal Drag Washer $1.25 More Info
98-155LH In Stock 98-155LH
1184341
98-155LH Sleeve, Gear Sleeve (comes with pin)(Left Hand) (Brass) (Optional) $8.30 More Info
168-9 Discontinued. Still In Stock. Limit 1 168-9
1184800
168-9 Wrench
Fits 23-60 knurled nut (see details for list of reels)
partimage

REPLACED BY PART NUMBER 168-60 or 168-TANI

Direct product replacement: 168-60 Wrench $0.95
$2.00 More Info
168-TANI In Stock 168-TANI 168-TANI Heavy Duty Penn Handle Nut Wrench by Alan Tani
Aftermarket Part - Not Manf. by Penn (see details for list of reels)
Fits 23-50S, 23-60, 23-114, 23-116, 23-220, 23-FTH20LW, 23-16S knurled nuts
$15.00 More Info
