| Reel Specifications | ||||
|---|---|---|---|---|
| Order Parts | View Schematic | Line Cap. & Specs. Info | Owners Manual | Reel Model |
 |  |  |  | SQL15LW |
| | | | SQL20LW |
| | | | SQL20LW-LC |
| | | | SQL20LW-LH |
| | | | SQL30LW |
| | | | SQL30LW-LH |
| | | | SQL50LW |
| Model | Mono Cap. (yds/lb) | Braid Cap. (yds/lb) | Bearings | Max Drag | Gear Ratio |
Line Retrieve | Weight (oz) | First Year | Year Disc. |
|---|---|---|---|---|---|---|---|---|---|
SQL15LW
|
280/15 240/17 190/20 |
500/20 380/30 270/50 |
6+1 | 15 lbs | 6.0:1 | 28 | 2013 | ||

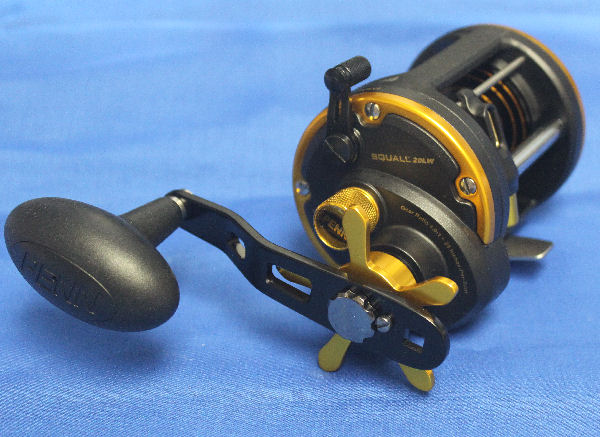

SQL20LW and SQL20LW-LH
|
6+1 | 20 lbs | 6.0:1 | 40 | 2013 | ||||
SQL20LW-LC
|
6+1 | 20 lbs | 6.0:1 | 40 | 2013 | ||||

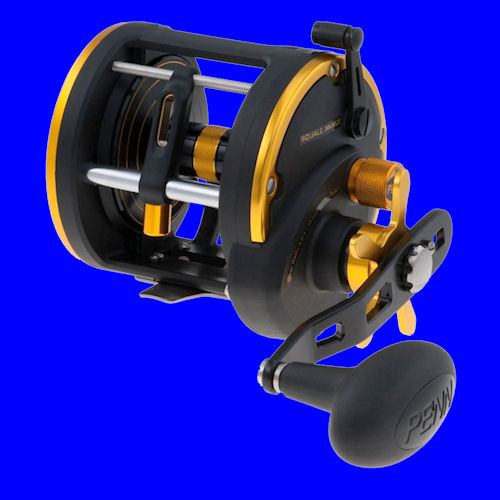

SQL30LW and SQL30LW-LH
|
440/20 300/30 250/40 |
625/50 500/65 440/80 |
6+1 | 20 lbs | 6.0:1 | 40 | 2013 | ||
SQL50LW
|
6+1 | 20 lbs | 6.0:1 | 2013 |
REEL INFO:
The Squall Star Drag reel features a lightweight graphite frame and sideplate. The Live Spindle™ design and AdjustaMag™ brake creates an extremely castable reel. The HT-100™ Versa-Drag™ system provides smooth performance even under heavy loads. In September of 2013, Penn added the Squall Levelwind reels to the series.
(Squall™ Star Drag Product Review by PENN®)
HISTORY:
The Squall reel has it's roots in the 525Mag series. The SQL12 is the same as the UK/Euro 515MAG2 and the SQL15 is the same as teh 525MAG2, both are just renamed for U.S. release. In September of 2013, Penn added the Squall Levelwind reels to the series.
Name/Series: Squall Levelwind
Construction:
Lightweight graphite frame
Machined and anodized aluminum spool
Externally adjustable magnetic casting brake
High-strength marine grade bronze alloy main gear
Quick high-speed gear ratio
Precision-machined stainless steel pinion gear
Live spindle with free floating spool
Versa-Drag™ system allows for multiple drag settings for various fishing conditions
Shielded stainless steel ball bearings
HT-100™ drag washers provide smooth drag under heavy loads
Stainless steel reel stand
Counter-balanced handle with oversized paddle knob
