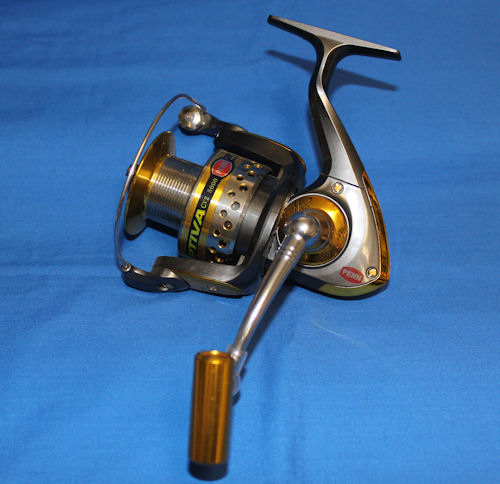

Penn CV2 5000 Captivia Series 2 (CV2) Reel

View / Print Schematic Request a Schematic View / Print Owners Manual Buy Reel Cover

Model Specs:

More Info
  • Machinetech gears.
  • Eight Stainless Steel Ball Bearings.
  • One Infinite Anti-Reverse Roller Bearing.
  • Long-Cast Machined Aluminum Spool.
  • Lightweight Graphite Body.
  • Infinite anti-reverse.
  • Techno-Balanced™ Rotor gives smooth retrieves, even with high cranking speeds.
Mono Cap
(yds/lb)		 Gear Ratio Line Retrieve
200/12 5.2:1 32
Availability SKU Name Our Price
REEL DISCONTINUED BY PENN   REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

1-5000CV2 In Stock 1-5000CV2 1-5000CV2 Housing $15.50 More Info
1A-5000CV2 In Stock 1A-5000CV2 1A-5000CV2 Housing Insert $1.15 More Info
8-5000CV2 Discontinued. Not Available 8-5000CV2 8-5000CV2 Gear, Main Gear More Info
8A-4000CV2 Discontinued. Still In Stock. Limit 2 8A-4000CV2 8A-4000CV2 Shim, Main Gear Shim (uses 1 or 2)

LIMITED QUANTITIES AVAILABLE
$0.85 More Info
15-5000CV2 Discontinued. Not Available 15-5000CV2 15-5000CV2 Handle Assembly More Info
19-5000CV2 Discontinued. Still In Stock. Limit 5 19-5000CV2 19-5000CV2 Gear, Pinion Gear

LIMITED QUANTITIES AVAILABLE
$3.60 More Info
20-5000CV2 In Stock 20-5000CV2 20-5000CV2 Bearing, Ball, for Housing $4.00 More Info
20-8000CV2 In Stock 20-8000CV2 20-8000CV2 Bearing, Ball, for Housing (uses 2) $4.00 More Info
20A-4000CV2 In Stock 20A-4000CV2 20A-4000CV2 Bearing, Ball, for Housing Cover $4.00 More Info
20B-5000CV2 Discontinued. Not Available 20B-5000CV2 20B-5000CV2 Bearing, Ball, for Pinion
Used on multiple models in different quantities.
Direct product replacement: 20C-3000PUR Bearing, Ball Bearing $3.70
More Info
21-5000CV2 In Stock 21-5000CV2 21-5000CV2 Retainer, Bearing Retainer $0.70 More Info
21A-2000CV2 Discontinued. Still In Stock. Limit 2 21A-2000CV2 21A-2000CV2 Screw, Bearing Retainer Screw (uses 3) $0.85 More Info
22-5000CV2 In Stock 22-5000CV2 22-5000CV2 Collar $0.85 More Info
23-2000CV2 Discontinued. Still In Stock. Limit 5 23-2000CV2 23-2000CV2 Screw, Side Cover Screw (uses 2) $1.00 More Info
24-5000CV2 In Stock 24-5000CV2 24-5000CV2 Bail Wire $5.85 More Info
27-5000CV2 In Stock 27-5000CV2 27-5000CV2 Rotor Cup $8.30 More Info
27A-5000CV2 Discontinued. Still In Stock. Limit 5 27A-5000CV2 27A-5000CV2 Cover, Bail Pivot Cover $1.50 More Info
27W-5000CV2 Discontinued. Still In Stock. Limit 2 27W-5000CV2 27W-5000CV2 Washer, Rotor

LIMITED QUANTITIES AVAILABLE
$0.85 More Info
28-5000CV2 In Stock 28-5000CV2 28-5000CV2 Trip Lever $0.90 More Info
28A-5000CV2 In Stock 28A-5000CV2 28A-5000CV2 Trip Lever Link $0.90 More Info
29-2000CV2 Discontinued. Still In Stock. Limit 2 29-2000CV2 29-2000CV2 Spring

LIMITED QUANTITIES AVAILABLE
$0.85 More Info
31-2000CV2 In Stock 31-2000CV2 31-2000CV2 Screw, Bail Arm Screw $0.85 More Info
31A-2000CV2 Discontinued. Still In Stock. Limit 2 31A-2000CV2 31A-2000CV2 Bail Wire Screw $1.00 More Info
32-5000CV2 Discontinued. Not Available 32-5000CV2 32-5000CV2 Spring, Bail Spring More Info
34-5000CV2 In Stock 34-5000CV2 34-5000CV2 Arm, Bail Arm $2.00 More Info
34C-5000CV2 Discontinued. Not Available 34C-5000CV2 34C-5000CV2 Arm, Pivot Arm More Info
35-4000CV Backordered. Still In Stock. Limit 2 35-4000CV
1182925 		35-4000CV Line Roller

LIMITED QUANTITIES AVAILABLE

REPLACES ORIGINAL NUMBER 35-2000CV, 35-4000CLL, 35-4000CV2 ON SOME REELS
$1.00 More Info
35-4000CV2 Discontinued. Not Available 35-4000CV2 35-4000CV2 Line Roller

REPLACED BY PART NUMBER 35-4000CV
Direct product replacement: 35-4000CV Line Roller $1.00
More Info
35A-2000CV2 Discontinued. Not Available 35A-2000CV2 35A-2000CV2 Bearing, Ball, for Line Roller (uses 2)

LIMITED QUANTITIES AVAILABLE
Direct product replacement: 35A-2000CV Bearing, Line Roller Bearing $4.45
More Info
36-4000CV2 Discontinued. Still In Stock. Limit 1 36-4000CV2 36-4000CV2 Screw, Bail Stud Screw

LIMITED QUANTITIES AVAILABLE

REPLACED BY PART NUMBER 36-4000CV
$1.00 More Info
38-5000CV2 In Stock 38-5000CV2 38-5000CV2 Nut, Rotor Cup Nut (Reverse Threads) $0.55 More Info
38A-2000CV2 In Stock 38A-2000CV2 38A-2000CV2 Screw, Rotor Nut Screw $0.70 More Info
39-5000CV2 In Stock 39-5000CV2 39-5000CV2 Shaft, Spool Shaft $4.80 More Info
40A-5000CV2 In Stock 40A-5000CV2 40A-5000CV2 Washer, Spool Shaft Washer $0.70 More Info
40B-5000CV2 Discontinued. Still In Stock. Limit 5 40B-5000CV2 40B-5000CV2 Ratchet, Click Ratchet $0.90 More Info
43-5000CV2 Discontinued. Still In Stock. Limit 5 43-5000CV2 43-5000CV2 Block, Crosswind Block $0.85 More Info
43A-5000CV2 In Stock 43A-5000CV2 43A-5000CV2 Plate, Crosswind Block Plate $0.90 More Info
43B-2000CV2 In Stock 43B-2000CV2 43B-2000CV2 Crosswind Plate Screw $0.55 More Info
44-5000CV2 In Stock 44-5000CV2 44-5000CV2 Plate, Crosswind Block Screw $0.70 More Info
45-5000CV2 In Stock 45-5000CV2 45-5000CV2 Cover, Housing Cover $3.00 More Info
46-5000CV2 Discontinued. Still In Stock 46-5000CV2 46-5000CV2 Screw, Housing Cover Screw
Used on multiple models in different quantities.
$0.90 More Info
46A-5000CV2 In Stock 46A-5000CV2 46A-5000CV2 Screw, Housing Cover Screw, Short $0.55 More Info
47-5000CV2 Discontinued. Still In Stock. Limit 1 47-5000CV2 47-5000CV2 Spool (Inc. Drags/Clicker) $15.00 More Info
51-5000CV2 In Stock 51-5000CV2 51-5000CV2 Ring, Retaining Ring $0.90 More Info
52-5000CV2 Discontinued. Still In Stock. Limit 1 52-5000CV2 52-5000CV2 Knob, Drag Knob $4.20 More Info
56-5000CV2 Discontinued. Not Available 56-5000CV2 56-5000CV2 Washer, Drag, Friction Drag Washer (uses 3) More Info
57-5000CV2 In Stock 57-5000CV2 57-5000CV2 Washer, Drag, Metal, Keyed Metal Drag Washer (uses 2) $0.70 More Info
58-5000CV2 In Stock 58-5000CV2 58-5000CV2 Washer, Drag, Metal Drag Washer, Earred $1.00 More Info
60-5000CV2 Discontinued. Still In Stock. Limit 2 60-5000CV2 60-5000CV2 Washer, Thrust Washer $0.70 More Info
98-5000CV2 In Stock 98-5000CV2 98-5000CV2 Clutch Bearing & Sleeve $6.00 More Info
132-4000CV2 Discontinued. Still In Stock. Limit 5 132-4000CV2 132-4000CV2 Washer, Line Roller Washer $1.25 More Info
132A-2000CV2 In Stock 132A-2000CV2 132A-2000CV2 Washer, Line Roller Washer $1.00 More Info
226-5000CV2 Discontinued. Still In Stock. Limit 2 226-5000CV2 226-5000CV2 Rear Cap $1.00 More Info
226A-5000CV2 In Stock 226A-5000CV2 226A-5000CV2 Rear Cap Screw $0.55 More Info
227-5000CV2 In Stock 227-5000CV2 227-5000CV2 Bail Cam Cover $0.60 More Info
231-5000CV2 In Stock 231-5000CV2 231-5000CV2 Gear, Crosswind Gear $2.00 More Info
231A-5000CV2 In Stock 231A-5000CV2 231A-5000CV2 Bearing, Crosswind Gear Ball Bearing $4.00 More Info
233-5000CV2 Discontinued. Not Available 233-5000CV2 233-5000CV2 Cover, Bearing Cover

REPLACED BY PART NUMBER 233-2000CV2
More Info
