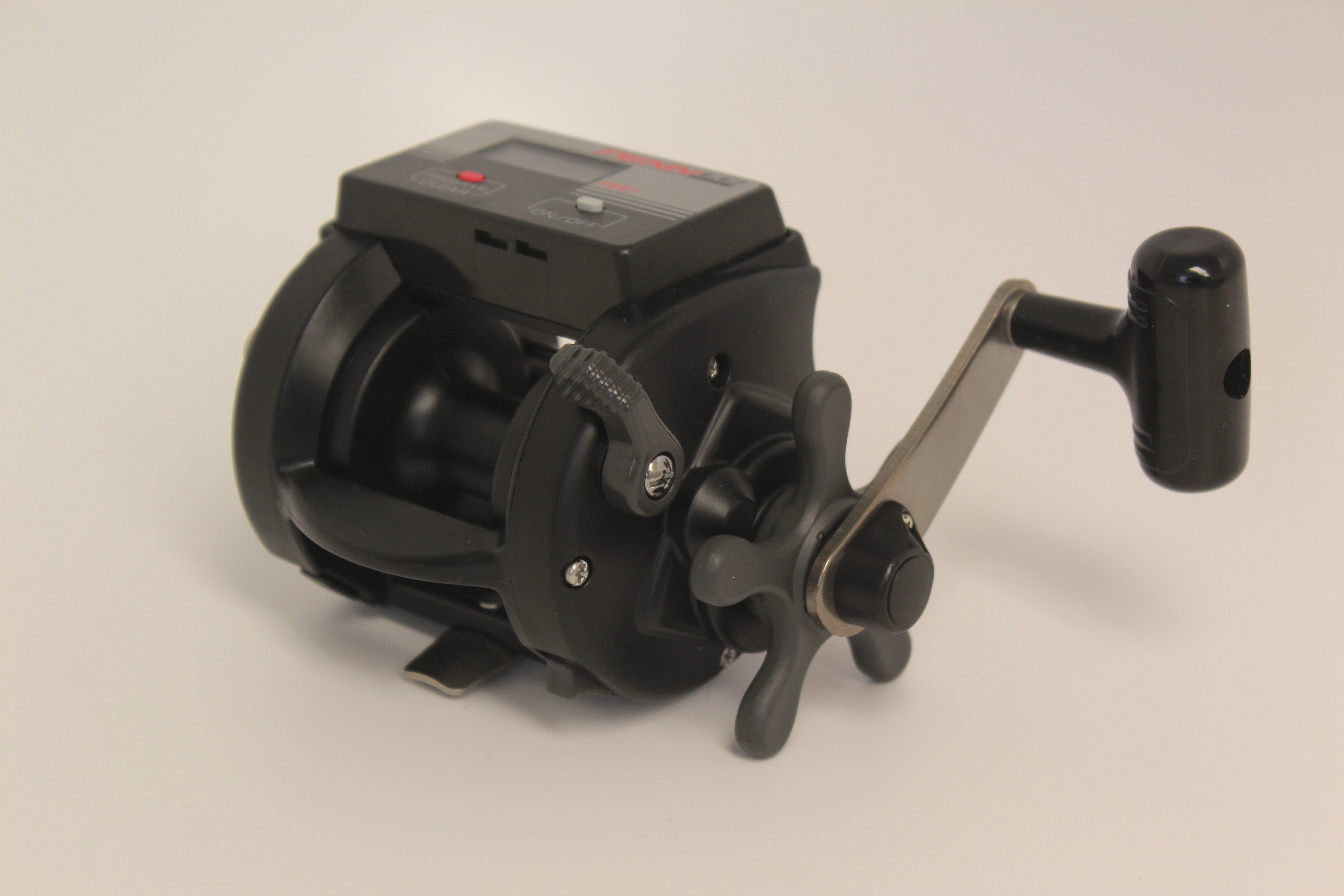

Penn 855LC Line Counter Reel

View / Print Schematic Request a Schematic View / Print Owners Manual

Model Specs:

More Info
  • One piece graphite frame, strong graphite side plates.
  • Graphite spool, lightweight yet durable.
  • Three solid stainless steel ball bearings.
  • Stainless steel reel stand.
  • HT-100 multi-disc star drag system.
  • Positive level wind system.
  • Loud, firm, easy to use clicker.
  • Power handle.
  • Adjustable spool tension.
Mono Cap
(yds/lb)		 Bearings Gear Ratio
200/15 3 4.6:1
Availability SKU Name Our Price
REEL DISCONTINUED BY PENN   REEL DISCONTINUED BY PENN

Many of these parts will become unavailable in the future.
Click above for more info

1-855 Discontinued. Still In Stock. Limit 1 1-855
001-1-855 		1-855 Plate, Handle Side Plate $12.00 More Info
4-855 Discontinued. Not Available 4-855
004-4-855 		4-855 Washer, Hard Fiber Spacer Washer (Under Main Gear) More Info
5-855 In Stock 5-855
005-1180883 		5-855 Gear, Main Gear

LIMITED QUANTITIES AVAILABLE
$14.45 More Info
6-855 In Stock 6-855
006-1180926 		6-855 Washer, Drag Washer HT-100™ (uses 2) $1.50 More Info
8-875 Discontinued. Still In Stock. Limit 2 8-875
008-1181109 		8-875 Washer, Thrust Washer

LIMITED QUANTITIES AVAILABLE
$1.30 More Info
8A-875 Discontinued. Still In Stock. Limit 5 8A-875
008A-875-8A-875 		8A-875 Spring, Disc Spring (uses 2) $1.00 More Info
9-875 Discontinued. Still In Stock. Limit 2 9-875
009-9-875 		9-875 Washer, Drag Star Spacing Washer $2.55 More Info
10-875 In Stock 10-875
010-11181211 		10-875 Drag Star Assembly $6.55 More Info
11-855 In Stock 11-855
011-1181250 		11-855 Jack, Eccentric Jack (Brass) $7.90 More Info
12-855 In Stock 12-855
012-1181274 		12-855 Yoke, Pinion Yoke

LIMITED QUANTITIES AVAILABLE
$2.35 More Info
13-855 Discontinued. Still In Stock. Limit 1 13-855
013-13-855 		13-855 Gear, Pinion Gear Assembly

LIMITED QUANTITIES AVAILABLE
$14.00 More Info
14-855 In Stock 14-855
014-1181411 		14-855 Spring, Dog Spring $0.95 More Info
15-855 In Stock 15-855
015-1181507 		15-855 Dog, Ratchet Dog

LIMITED QUANTITIES AVAILABLE
$2.35 More Info
18-875 Discontinued. Still In Stock. Limit 2 18-875
018-1181625 		18-875 Spring, Clutch Spring (uses 2)

LIMITED QUANTITIES AVAILABLE
$1.10 More Info
19-875 In Stock 19-875
019-1181717 		19-875 Eccentric

LIMITED QUANTITIES AVAILABLE
$7.90 More Info
20-855 Discontinued. Still In Stock. Limit 1 20-855
020-20-855 		20-855 Spring, Eccentric Spring $2.00 More Info
20A-855 Discontinued. Still In Stock. Limit 2 20A-855
020A-20A-855 		20A-855 Bearing Spacer (uses 2) $1.50 More Info
20-722 In Stock 20-722
020-1181792 		20-722 Bearing, Ball Bearing
Used on multiple models in different quantities.
$13.30 More Info
21-855 Discontinued. Still In Stock. Limit 1 21-855
021-21-855 		21-855 Lever, Eccentric Lever $4.00 More Info
21A-855 Discontinued. Still In Stock. Limit 1 21A-855
021A-21A-855 		21A-855 Lever, Direct Driver Lever

LIMITED QUANTITIES AVAILABLE
$4.50 More Info
22-875 Discontinued. Still In Stock. Limit 2 22-875
022-1181924 		22-875 Screw

MULTI USE See Description

LIMITED QUANTITIES AVAILABLE
Used on multiple models in different quantities.
$1.00 More Info
23-875 Discontinued. Still In Stock. Limit 1 23-875
023-1181954 		23-875 Nut, Handle Nut

LIMITED QUANTITIES AVAILABLE
$1.95 More Info
24-855 In Stock 24-855
024-1182072 		24-855 Handle, Black Plastic Narrow Knob

LIMITED QUANTITIES AVAILABLE
$13.80 More Info
27-855 Discontinued. Still In Stock. Limit 1 27-855
027-1182283 		27-855 Plate, Non-Handle Side Plate

LIMITED QUANTITIES AVAILABLE
$10.45 More Info
29L-855 Discontinued. Still In Stock 29L-855
029L-029L-855 		29L-855 Spool, Aluminum (Black) $19.40 More Info
32-875 In Stock 32-875
032-1182745 		32-875 Screw, Handle Lock Screw

LIMITED QUANTITIES AVAILABLE
$1.15 More Info
35-875 In Stock 35-875
035-1182945 		35-875 Tongue, Click Tongue $1.60 More Info
36-855 In Stock 36-855
036-1183018 		36-855 Button, Click Button

LIMITED QUANTITIES AVAILABLE
$4.50 More Info
36A-103 Discontinued. Still In Stock. Limit 10 36A-103
036A-1183026 		36A-103 Washer, Lock Washer $1.25 More Info
39-875 Discontinued. Still In Stock. Limit 2 39-875
039-1183237 		39-875 Screw, Mounting Screw $0.95 More Info
40-320 In Stock 40-320
040-1183280 		40-320 Bearing, Ball Bearing $14.10 More Info
40-855 In Stock 40-855
040-1183284 		40-855 Washer, Thrust Washer $1.15 More Info
40A-875 Discontinued. Not Available 40A-875
040A-875-40A-875 		40A-875 Cap, Left Side Bearing Cap More Info
41-875 Discontinued. Not Available 41-875
041-41-875 		41-875 Spring, Bearing Spring, Non-Handle Side More Info
41C-875 In Stock 41C-875
041C-1183343 		41C-875 Washer, Thrust Washer
LIMITED QUANTITIES AVAILABLE
$1.15 More Info
42-855 In Stock 42-855
042-1183354 		42-855 Shaft, Worm Shaft

LIMITED QUANTITIES AVAILABLE
$7.90 More Info
42A-855 In Stock 42A-855
042A-1183362 		42A-855 Ring, Retaining Ring (uses 2)

LIMITED QUANTITIES AVAILABLE
$1.15 More Info
42B-875 Discontinued. Still In Stock. Limit 1 42B-875
042B-42B-875 		42B-875 Ring, Retaining Ring (uses 2)

LIMITED QUANTITIES AVAILABLE
$0.95 More Info
43-855 In Stock 43-855
043-1183408 		43-855 Bearing, Worm Bearing (uses 2)

LIMITED QUANTITIES AVAILABLE
$1.60 More Info
45-855 In Stock 45-855
045-1183535 		45-855 Gear, Worm Gear

LIMITED QUANTITIES AVAILABLE
$4.50 More Info
46-855 In Stock 46-855
046-1183578 		46-855 Line Guide

LIMITED QUANTITIES AVAILABLE
$7.15 More Info
47-855 Discontinued. Not Available 47-855
047-47-855 		47-855 Pawl, Line Guide Pawl More Info
48-875 In Stock 48-875
048-1183716 		48-875 Screw, Cover, Pawl Cover Screw Cap $1.60 More Info
48A-855 Discontinued. Not Available 48A-855
048A-855-48A-855 		48A-855 Washer, Square Copper Thrust Washer More Info
50-855 In Stock 50-855
050-1183769 		50-855 Shield, Worm Shaft Shield $2.70 More Info
55-855 In Stock 55-855
055-1183891 		55-855 Bearing, Spool Bearing

LIMITED QUANTITIES AVAILABLE
$11.95 More Info
58-855 Discontinued. Still In Stock. Limit 1 58-855
058-1183963 		58-855 Post, Line Guide Post

LIMITED QUANTITIES AVAILABLE
$2.40 More Info
62-875 Discontinued. Not Available 62-875
062-62-875 		62-875 Spring, Click Spring More Info
63-855 Discontinued. Still In Stock. Limit 2 63-855
063-63-855 		63-855 Screw, Gear Mounting Screw (uses 2)

LIMITED QUANTITIES AVAILABLE
$1.00 More Info
63A-875 Discontinued. Still In Stock. Limit 1 63A-875
063A-875-63A-875 		63A-875 Screw, Mounting Screw $0.95 More Info
63B-875 Discontinued. Still In Stock. Limit 2 63B-875
063B-63B-875 		63B-875 Screw, Gear Mounting Screw (uses 2) $1.25 More Info
64A-855 In Stock 64A-855
064A-1184073 		64A-855 Gear, Idler Gear A

LIMITED QUANTITIES AVAILABLE
$2.25 More Info
64B-855 In Stock 64B-855
064B-1184076 		64B-855 Gear, Idler Gear B

LIMITED QUANTITIES AVAILABLE
$2.25 More Info
81-855 Discontinued. Still In Stock. Limit 2 81-855
081-1184212 		81-855 Ratchet, Click Ratchet $1.95 More Info
81A-855 Discontinued. Still In Stock. Limit 2 81A-855
081A-855-81A-855 		81A-855 Washer, Spacing Washer (uses 2) $1.00 More Info
86-855 In Stock 86-855
086-1184265 		86-855 Washer, Metal Drag Washer

LIMITED QUANTITIES AVAILABLE
$1.20 More Info
86A-855 In Stock 86A-855
086A-1184275 		86A-855 Washer, Drag, Metal Drag Washer

LIMITED QUANTITIES AVAILABLE
$1.35 More Info
96-875 Discontinued. Still In Stock. Limit 2 96-875
096-96-875 		96-875 Clip, Line Storage Clip

LIMITED QUANTITIES AVAILABLE
$1.00 More Info
98A-875 Discontinued. Not Available 98A-875
098A-87598A-875 		98A-875 Washer, Gear Stud Washer More Info
98B-855 Discontinued. Still In Stock. Limit 1 98B-855
098B-98B-855 		98B-855 Bearing, Gear Stud Bearing

LIMITED QUANTITIES AVAILABLE
$3.15 More Info
98D-875 Discontinued. Still In Stock. Limit 2 98D-875
098D-98D-875 		98D-875 Ring, Retaining Ring (uses 2)

LIMITED QUANTITIES AVAILABLE
$1.00 More Info
98C-875 In Stock 98C-875
098C-1184385 		98C-875 Washer, Gear Stud Washer $1.15 More Info
98R-855 In Stock 98R-855
098R-1184391 		98R-855 Ratchet Assembly $6.85 More Info
98S-855 In Stock 98S-855
098S-1184397 		98S-855 Stud, Gear Stud (Brass) $8.30 More Info
110A-875 Discontinued. Not Available 110A-875
110A-875-110A-875 		110A-875 Cap, Handle Nut Cap More Info
158-875 In Stock 158-875
158-1184778 		158-875 Pin, Dog Pin

LIMITED QUANTITIES AVAILABLE
$1.20 More Info
183-855 Discontinued. Still In Stock. Limit 1 183-855
183-183-855 		183-855 Frame Assembly

LIMITED QUANTITIES AVAILABLE
$25.40 More Info
302-875 Discontinued. Not Available 302-875
302-302-875 		302-875 Bogey Wheel Assembly More Info
303-855 Discontinued. Still In Stock. Limit 1 303-855
303-303-855 		303-855 Control Box Assembly (Feet)

LIMITED QUANTITIES AVAILABLE
$92.95 More Info
303-855M Discontinued. Not Available 303-855M
303-303-855M 		303-855M Control Box Assembly (Metric) More Info
303B-875 Discontinued. Not Available 303B-875
303B-303B-875 		303B-875 Battery (Same as Panasonic CR2032)
Click for more information including installation.
More Info
303C-875 Discontinued. Still In Stock. Limit 5 303C-875
303C-303C-875 		303C-875 Control Box Cover Screw $1.90 More Info
304-875 In Stock 304-875
304-1185267 		304-875 Washer, Flat Washer $1.15 More Info
305-875 Discontinued. Still In Stock. Limit 5 305-875
305-1185270 		305-875 Screw

Multi Use See Description

LIMITED QUANTITIES AVAILABLE
$0.95 More Info
306-855 Discontinued. Still In Stock. Limit 2 306-855
306-1185271 		306-855 Gear, Control Box Gear

LIMITED QUANTITIES AVAILABLE
$5.25 More Info
