• 98-320AT Sleeve, Gear Sleeve (Includes Pin) Stainless (Optional)

click on thumbnail to zoom

Description

Multi Use: This item is used on multiple models.

Aftermarket Part - Not Manufactured by Penn

Made by a machinist as per Alan Tani's specs.

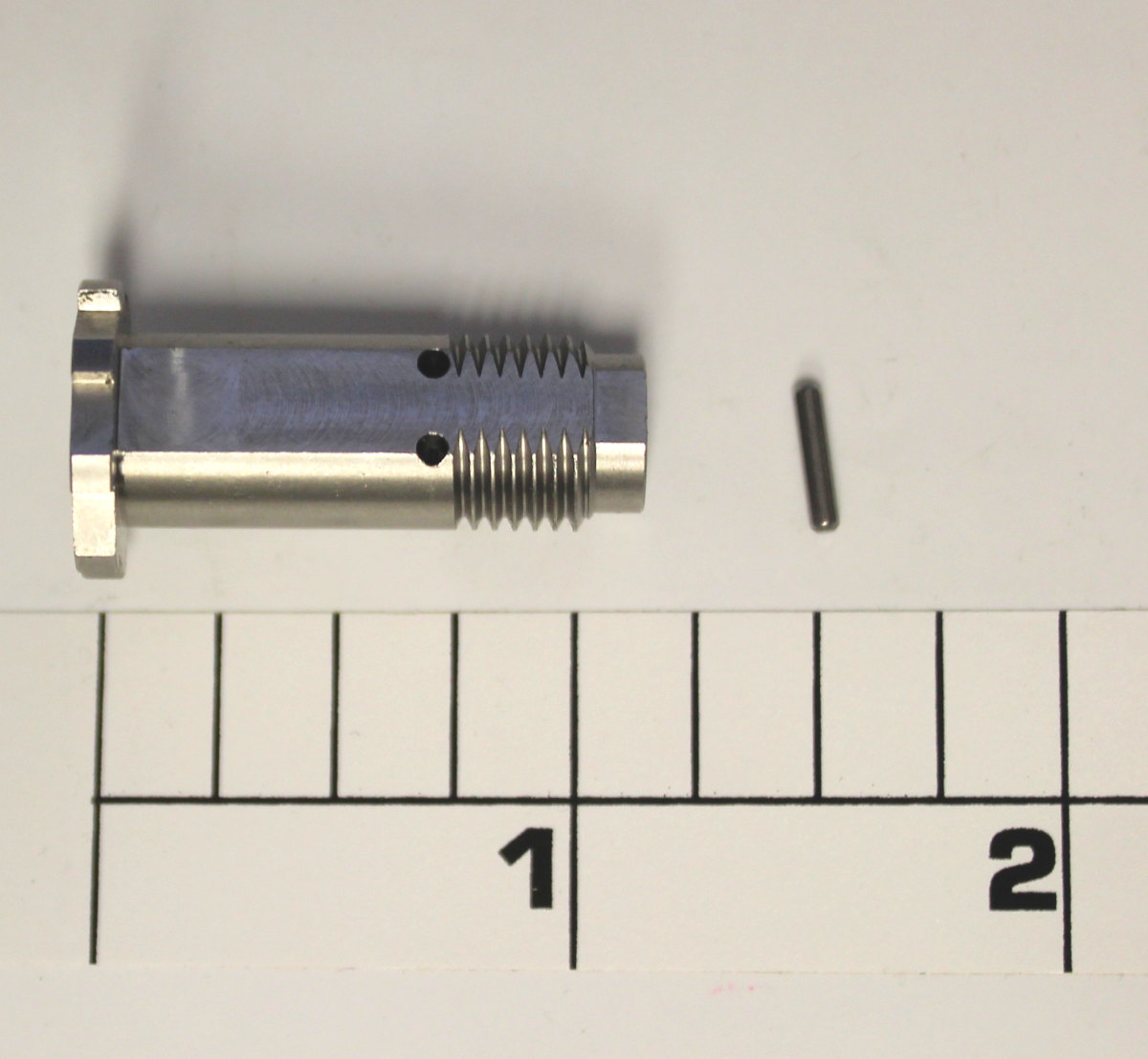

304 Stainless steel gear sleeve (98-320AT). Per Alan Tani, on the gen II gear sleeves, the flat faces are cut all the way down to the ratchet gear and there is still plenty of support for the main gear.

See MysticParts.com section on Conv. Photo Walk-Thrus for articles/notes by Alan Tani.


Fits versions of 113H, 113H-LH


Fits Versions of 113HLW


ADVISORY #1

NOTE: If using this for the China made GT2 reels, you must also change the handle to one of the compatible older style handles in the Type B section as the GT2 handle holes are a different shape and are NOT compatible with this sleeve:
https://www.mysticparts.com/PennParts/Handles/TypeB.aspx.


ADVISORY #2

Tani Sleeve Generation Notes

There were 2 generations of the Alan Tani SS sleeves.

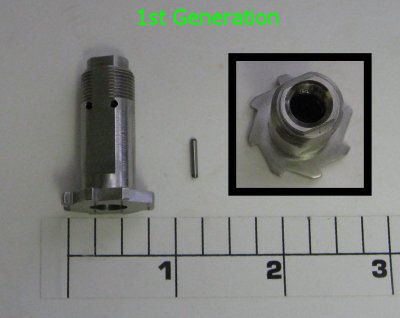

    ORIGINAL - Cut to the same design as the Penn sleeves, uses standard #4 washer under the gear.

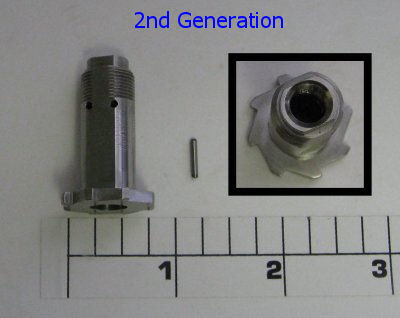

    2nd Gen - This is cut all the way down to the ratchet on each side, allowing for the use of the Bryan Young custom washer sets.

    Set to match this 2nd Gen sleeve: 4-113HSPBY
Penn Old SKU #: 98-320AT
Our Price: $0.00 EACH
