The PENN Squall Lever Drag is lightweight and ergonomic. Made from graphite for its lightweight and corrosion resistant benefits. Stainless steel gears with a higher speed gear ratio that the competition make the Squall LD perfect for nearshore trolling for kings and dolphin. Penn's proprietary Dura-Drag system will be there when you hook that big wahoo and he tries to smoke your reel! Left hand available in the 40 and 60 sizes.

Highlights:

Gears: The stainless steel gear train in Penn's Squall Lever Drag reels doesn't get much tougher. Machined from stainless steel and drilled out for weight reduction, these gears offer the perfect combination of strengh and speed.

Washers: Penn's Dura-Drag material contains a special Phenolic bonding agent that prevents premature breakdown of the carbon fiber material while providing a barrier to water. They then pretreat each drag washer with a special compound developed by Penn engineers... say goodby to jerky drags and lost fish!

Lever Drag Function and ergonomics were on top of the list when Penn designed the Squall Lever Drag reels. Note that the lever drag does not protrude above the frame of the reel. What does this mean to the angler? There is no way for the line to loop over and hang up on the lever of the Squall Lever Drag which could result in a break-off. One less thing to worry about when the line pops out of the clip.

Features:

  • Lightweight graphite frame and sideplates
  • Forged and machined aluminum spool
  • Stainless steel main and pinion gears
  • Dura-Drag™ washers virtually eliminate hesitaion, even under extreme drag settings
  • 6 shielded stainless steel ball bearings
  • Switchblade harness lugs ( 50 and 60 sizes only )
  • Ratcheted drag lever prevents "drag creep" caused by hours of trolling and engine vibrations
  • Line Capacity Rings
Dura Drag Washers Line Capacity Rings Switch Blade Lugs Versa Handle Braid Ready
Model Mono Cap
(yds/lb)
Braid Cap
(yds/lb)
Bearings Max Drag
@ Strike
(lb)
Max Drag
@ Full
(lb)
Gear Ratio Line Retrieve
(in)

Weight
(oz)

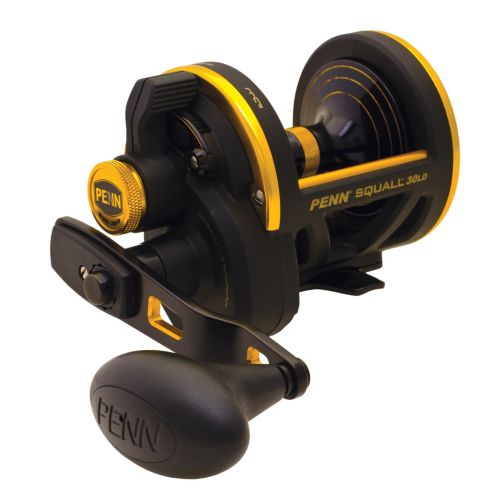

SQL30LD 390/20 350/25 260/30 1025/20 775/30 550/50 6 9 13 6.1:1 37 18.2

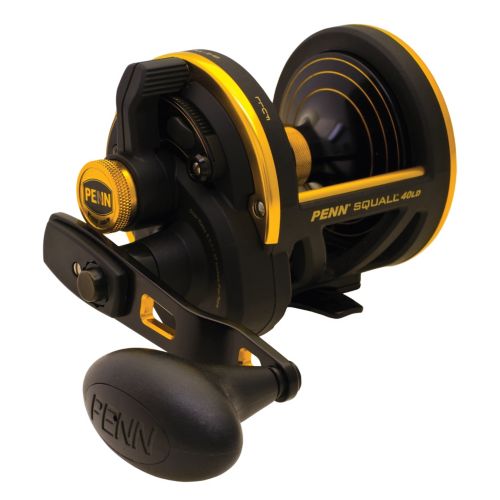

SQL40LD 490/25 360/30 300/40 1075/30 750/50 625/65 6 14 20 5.1:1 37 20.9

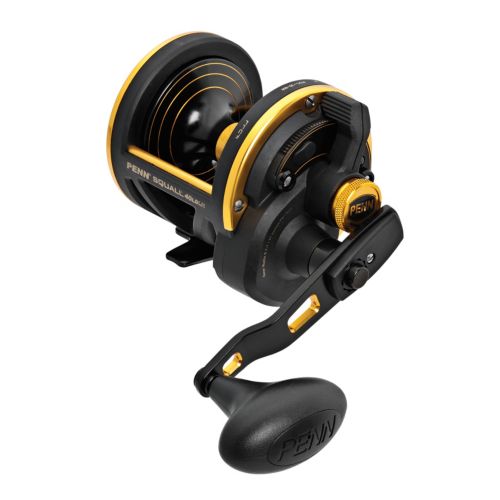

SQL40LDLH 490/25 360/30 300/40 1075/30 750/50 625/65 6 14 20 5.1:1 37 20.9

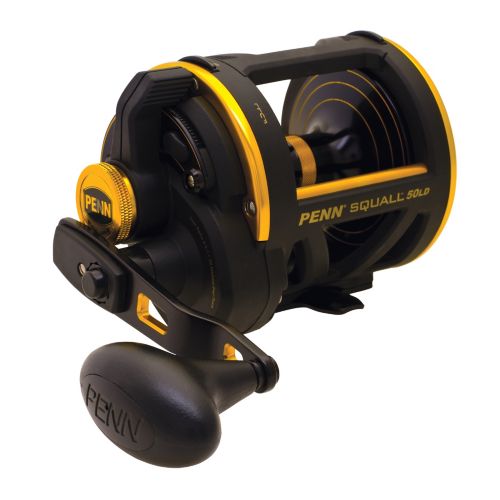

SQL50LD 500/30 420/40 310/50 1050/50 875/65 750/80 6 15 27 4.3:1 35 27.4

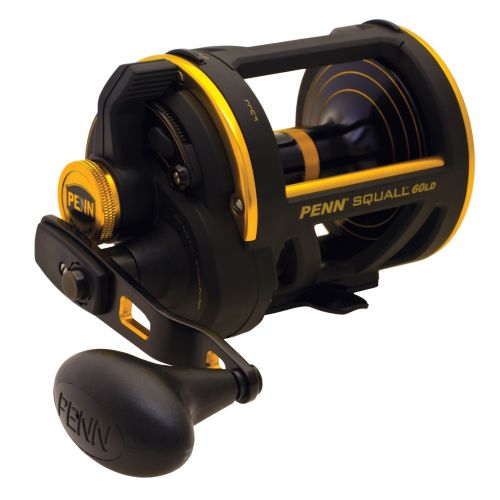

SQL60LD 500/40 370/50 330/60 1050/65 900/80 775/100 6 20 33 4.3:1 35 28.1

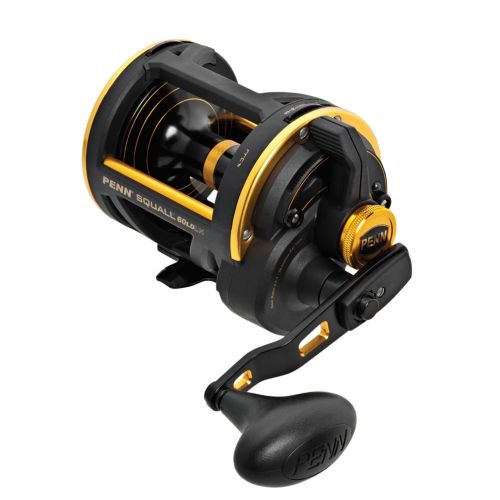

SQL60LDLH 500/40 370/50 330/60 1050/65 900/80 775/100 6 20 33 4.3:1 35 28.1
