Featuring a Full Metal Body for superior durability, the Fathom Lever Drag series offers power and speed in a lightweight package. These reels are engineered to be fished with superline and cover a wide range of fishing applications such as jigging, live baiting, and bottom fishing.

Highlights:

Gears: The stainless steel gear train in Penn's Fathom Lever Drag reels doesn't get much tougher. Machined from stainless steel and drilled out for weight reduction, these gears offer the perfect combination of strengh and speed.

Washers: Penn's Dura-Drag material contains a special Phenolic bonding agent that prevents premature breakdown of the carbon fiber material while providing a barrier to water. We then pretreat each drag washer with a special compound developed by Penn engineers... say goodby to jerky drags and lost fish!

Features:

  • Full Metal Body and Sideplates keep precise gear alignment under heavy loads
  • Forged and machined aluminum spool
  • Stainless steel main and pinion gears
  • Dura-Drag™ washers virtually eliminate hesitaion, even under extreme drag settings
  • 5 shielded stainless steel ball bearings
  • Double-dog ratchet anti-reverse system
  • Line Capacity Rings
Dura Drag Washers Line Capacity Rings Braid Ready Full Metal Body
Model Mono Cap
(yds/lb)
Braid Cap
(yds/lb)
Bearings Max Drag
@ Strike
(lb)
Max Drag
@ Full
(lb)
Max Drag
@ Sunset
(lb)
Gear Ratio Line Retrieve
(in)

Weight
(oz)

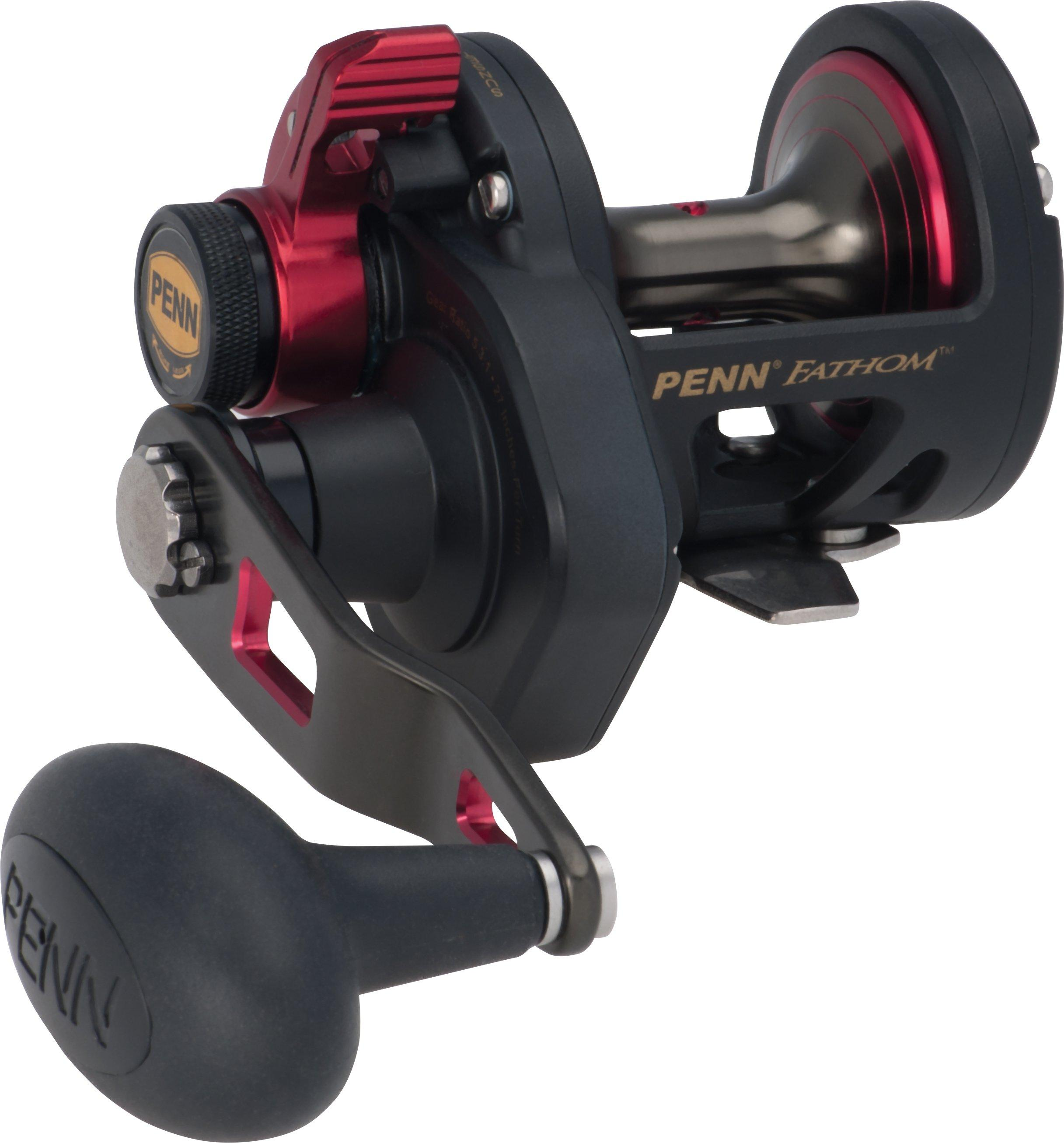

FTH15LD 355/12 • 305/15 • 200/20 550/20 • 415/30 • 290/50 5 13 16 20 5.3:1 27 15.1

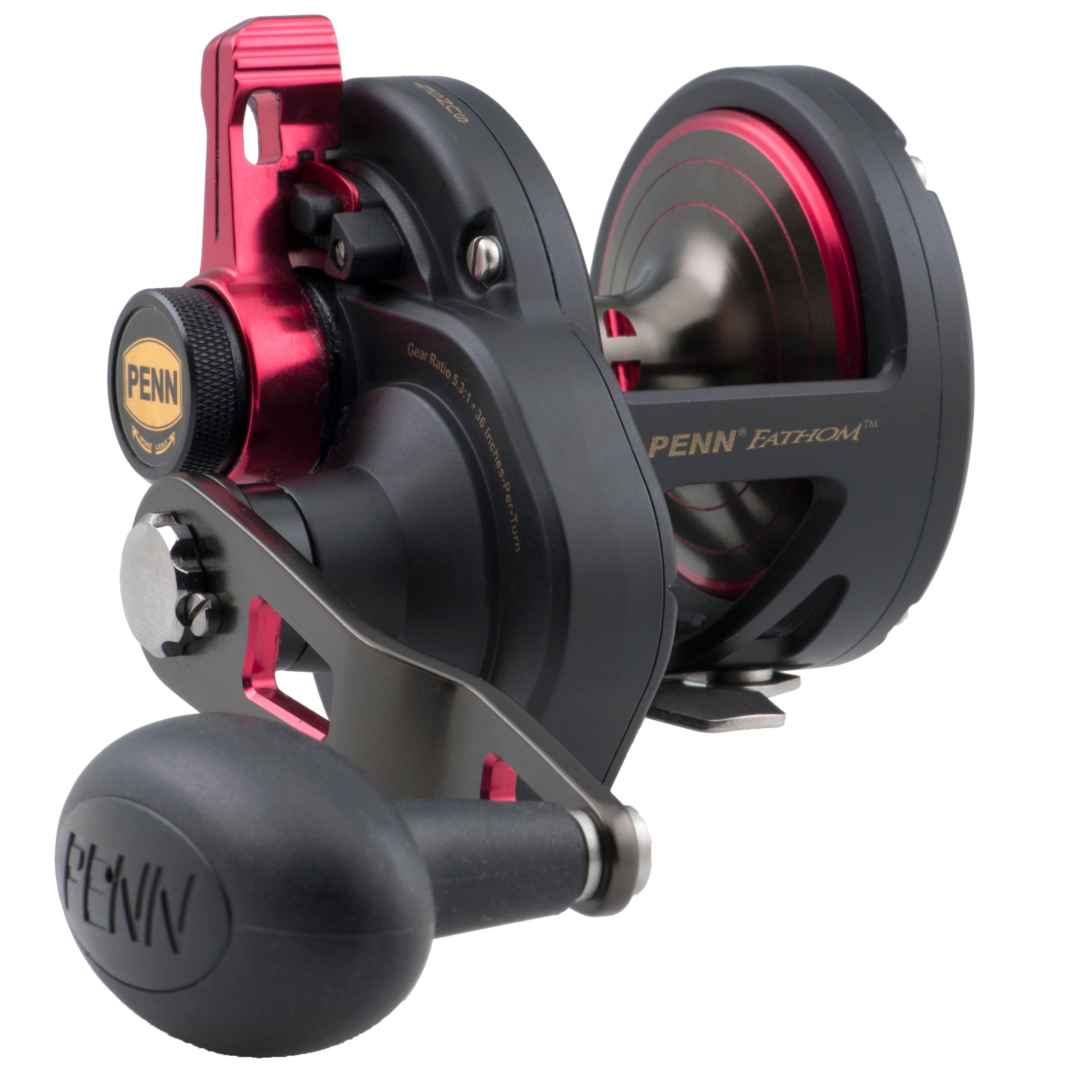

FTH25NLD 330/20 • 305/25 • 245/30 680/30 • 475/50 • 395/65 5 23 28 33 5.3:1 36 19.4

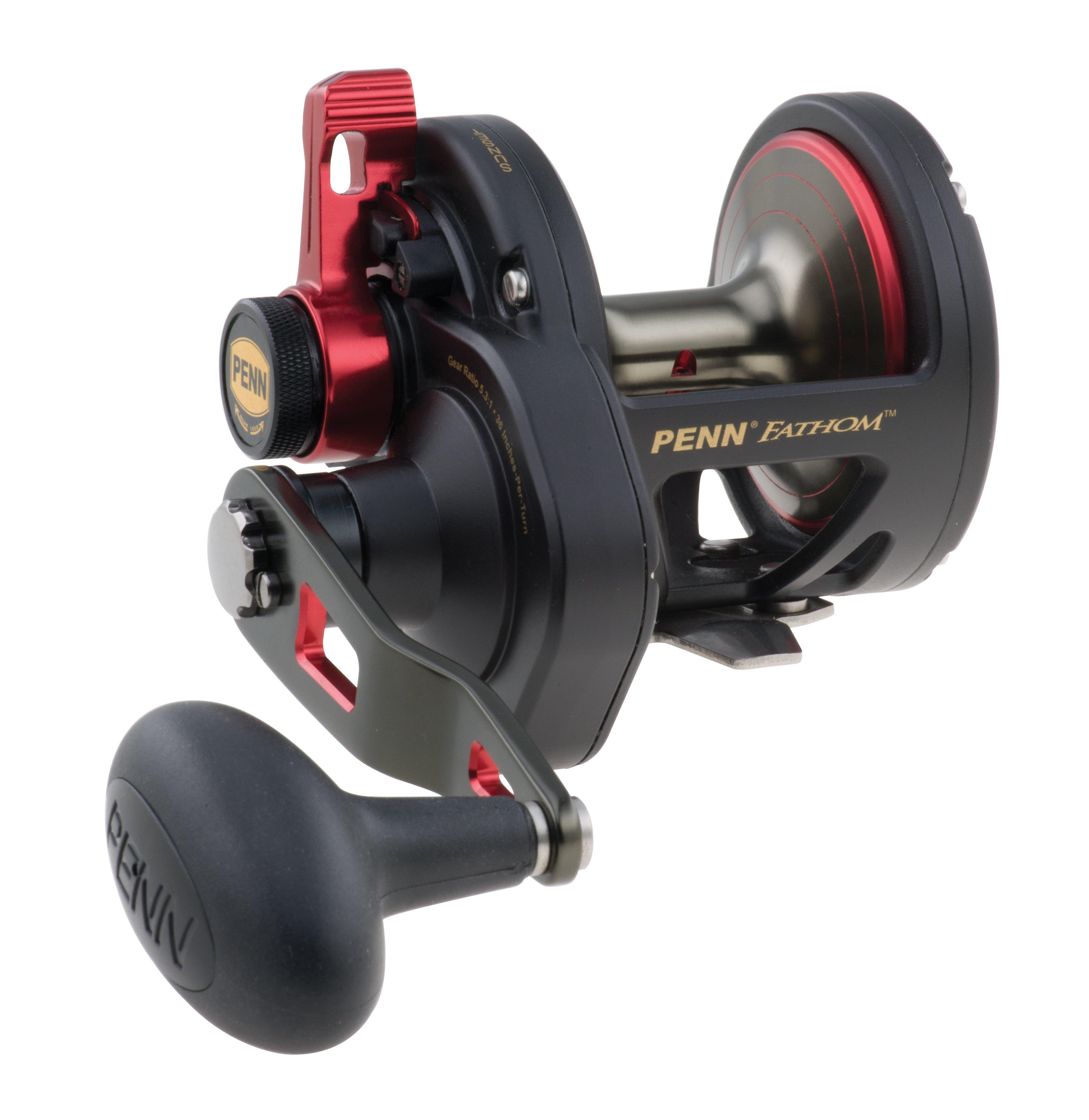

FTH30LD 440/20 • 330/30 • 255/40 635/50 • 525/65 • 455/80 5 23 28 33 5.3:1 36 19.8

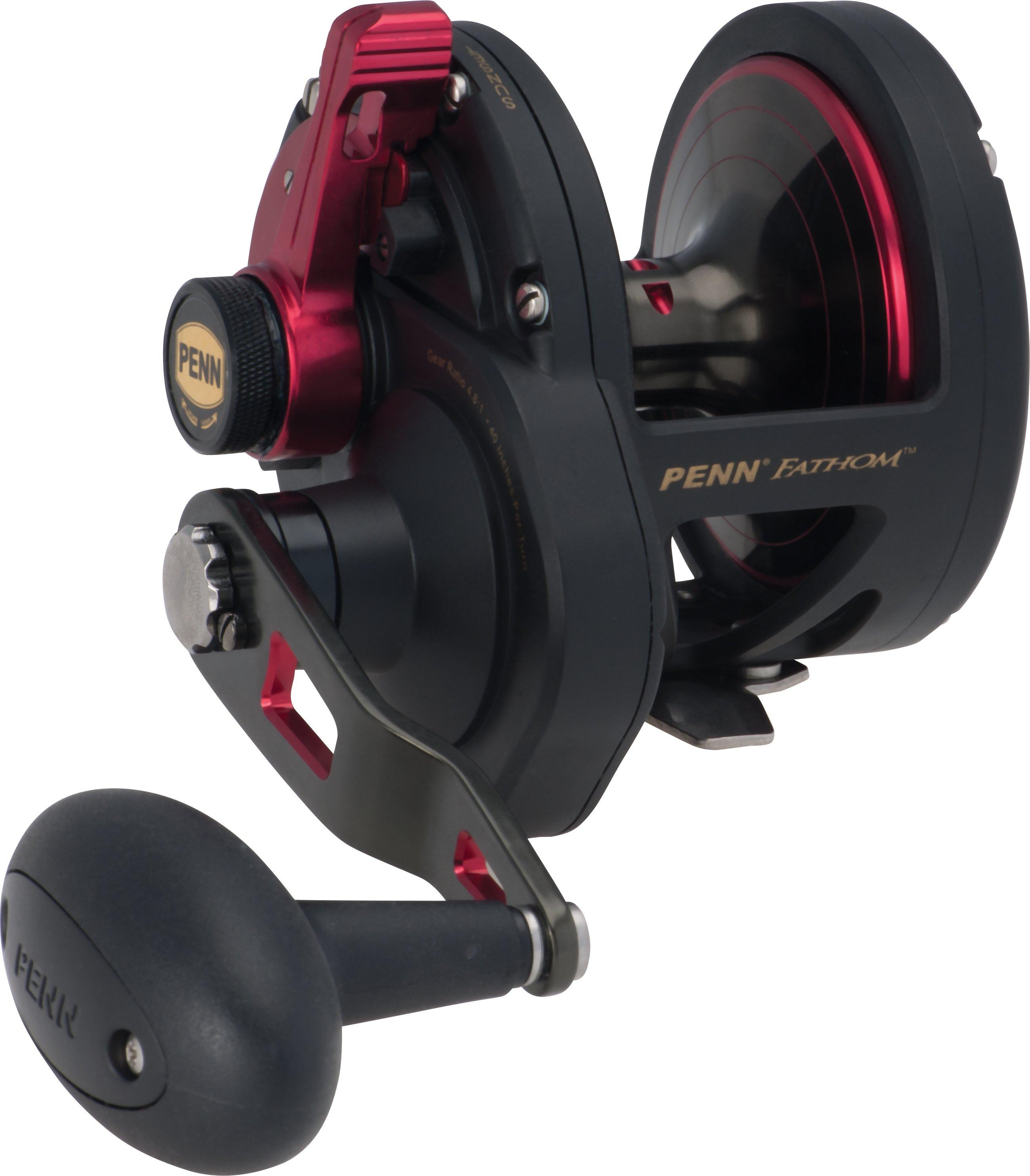

FTH40NLD 410/30 • 315/40 • 235/50 785/50 • 655/65 • 565/80 5 23 28 40 4.8:1 40 24.7

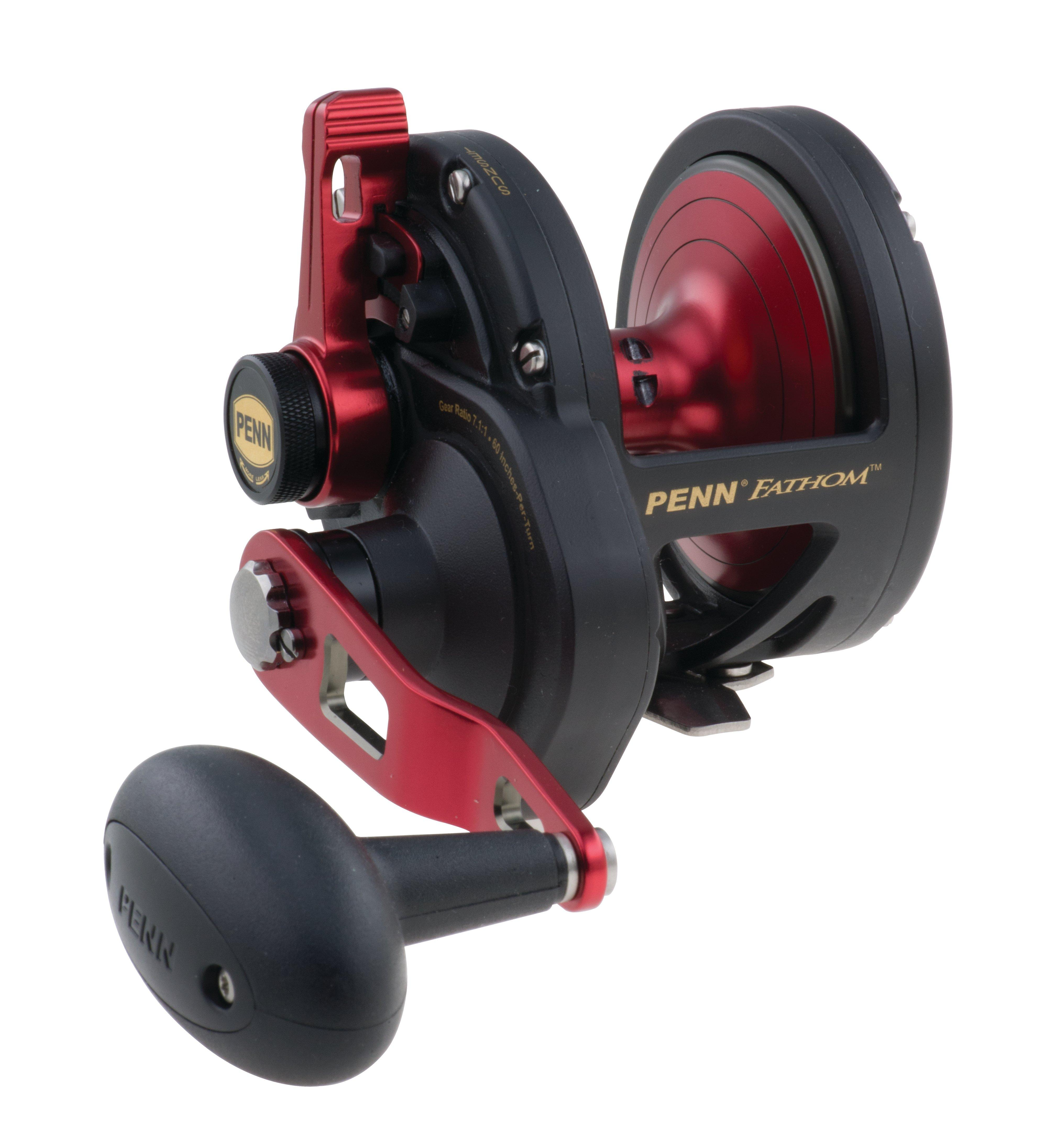

FTH40NLDHS 410/30 • 315/40 • 235/50 785/50 • 655/65 • 565/80 5 23 28 40 7.1:1 60 24.7
