Common Repair Problems - International Reels

965 Early Run Reels - Plates, Housing, Screws, Idler Gear, Worm Shaft and Spool Gear ratchet change

Early Run 965 Reels
The first run(s) of these reels contained a different gear setup:

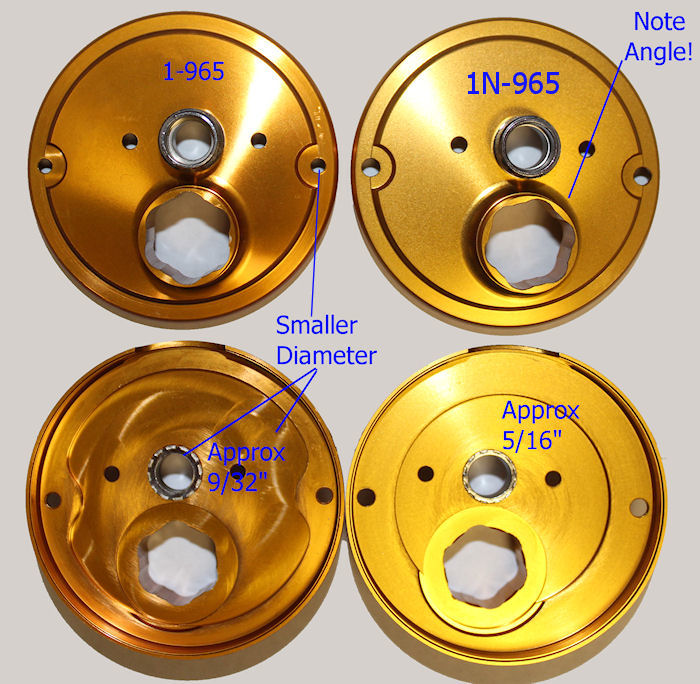

Housing, Plates and related external parts changed:
Part	Early Run	Current Reels
Plate, Handle Side	1-965	1N-965
Take-Apart Screw (2 Required)	38-965 **NLA***	38N-965
Side Plate Washer (2 Required)	38B-965	38BN-965

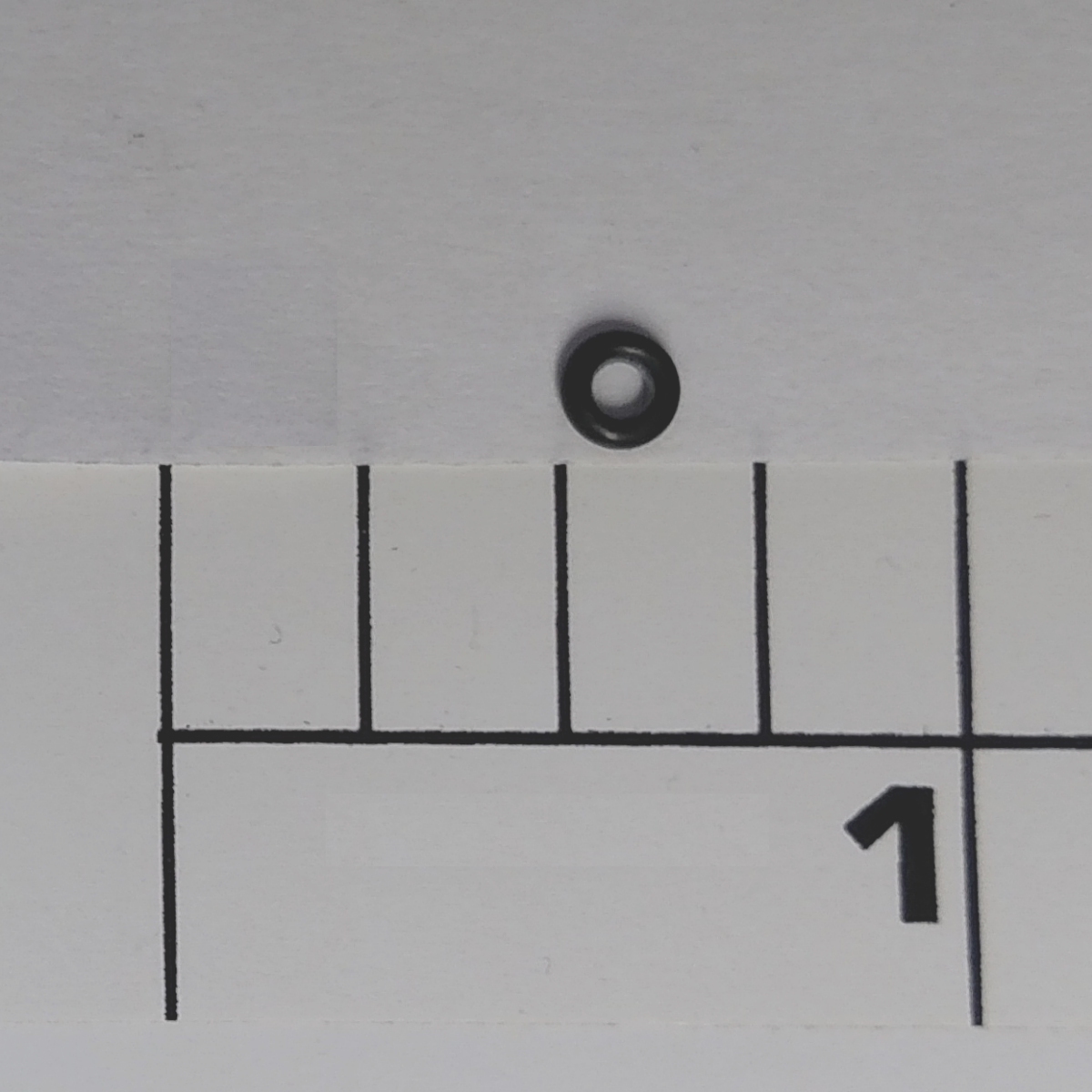

O'Ring for screw (2 Required)	38C-965	38CN-965
Housing	183-965	183N-965
Gears that changed internally:
Part	Early Run	Current Reels
Idler Gear	64-965 **NLA**	64M-965
Worm Shaft	42-965 **NLA**	42M-965
Spool Gear Click Ratchet	66-965 **NLA**	66M-965
TEXT AS Engraved	International 965	International 965

A higher percentage of the reels will have the current design.

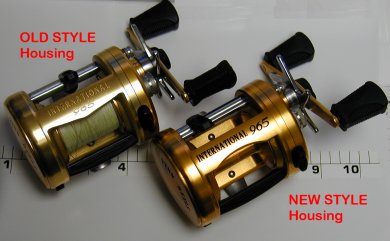

Plates and housing on the newer reels are a darker gold color, as shown in the photo below, but color isn't as important as the engraving on the housing.
The "International 965" is engraved as two lines on the early reels, regardless of reel color, then changed to the text being on one line on the current ones.

TO SEE WHICH TYPE OF GEARS THAT YOU HAVE:
The idler gear is the most distinctive - the 64-965 was a plastic gear with an attached small brass gear, O.D. measures 1.078 inches overall. The current 64M-965 is entirely made of plastic, and O.D. measures 1.1 inches.

If you have the original plastic/brass idler gear, and need to replace ANY of the three pieces, you will need to order all three parts.

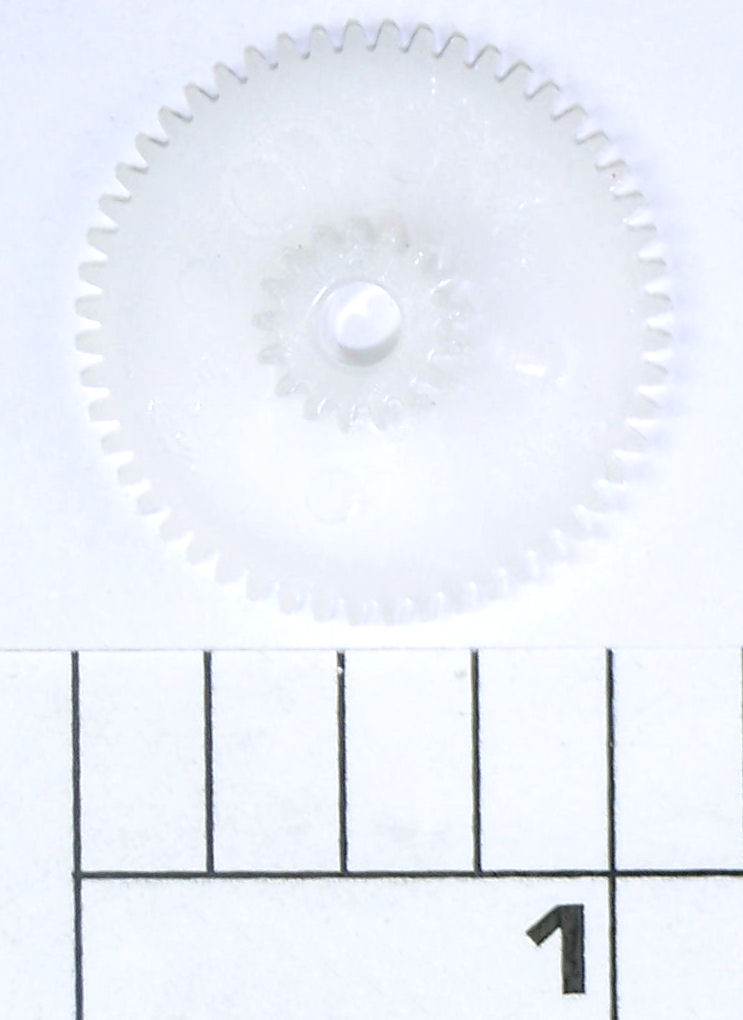

Sample of newer all plastic idler gear.

Notes For Ordering The Parts Above

To Order: Click on the linked part number(s) in the parts list to go to the screen to order that specific part. Do this for each part that you need to order/replace

Upgrade: To completely upgrade to the newer system, order all the parts in the "Current Reels" column.

This screen is information only
