25GLS Design Change for Spool/Bearings, Dog, and Gears

Price: $0.00

EACH

  • SKU25GLS

IMPORTANT CHANGE FOR 25GLS Reels

Conversion no longer possible as one or more of the parts is discontinued and no longer available. Information remains for reference purposes only.

AS OF (date unknown):

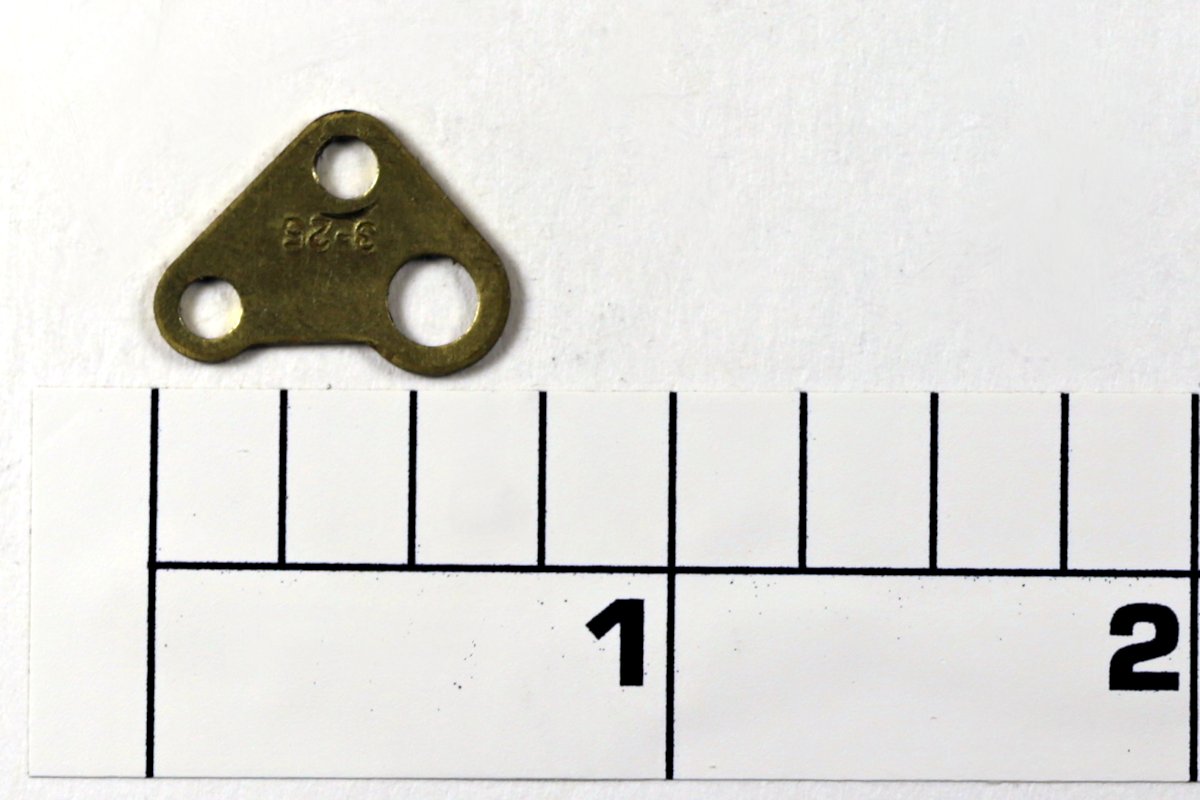

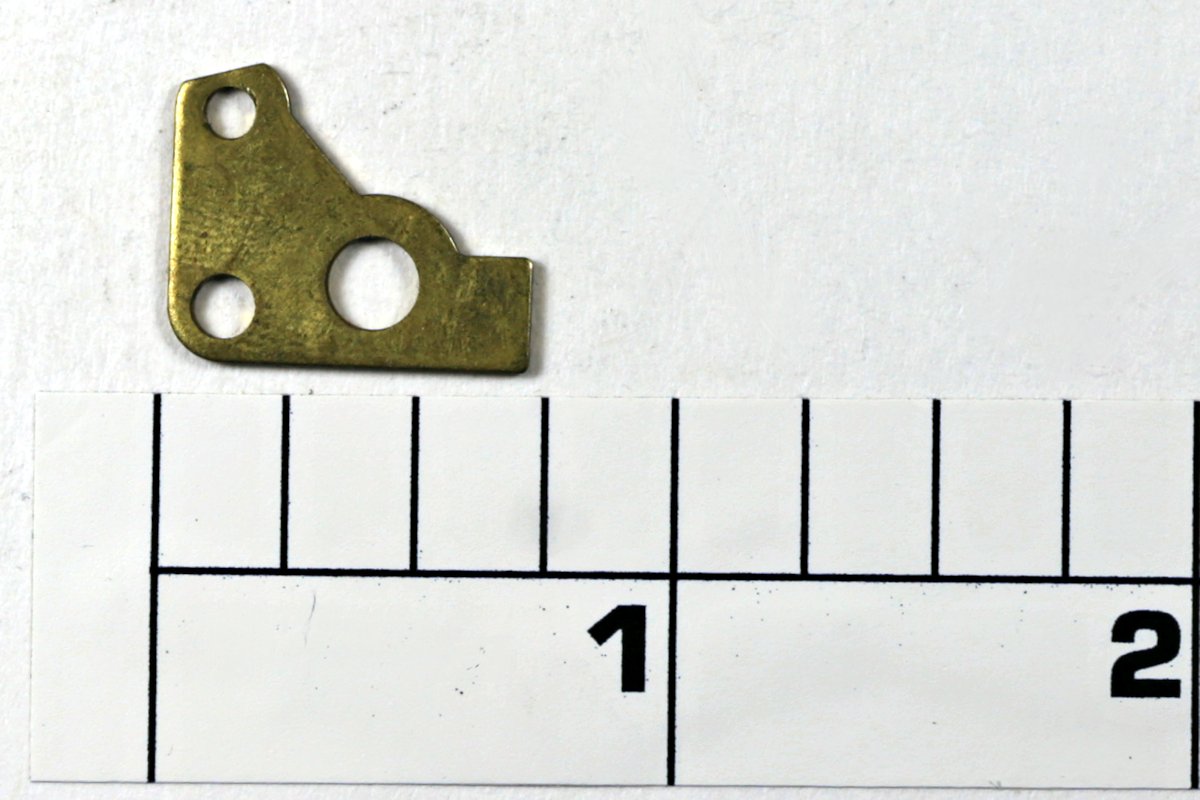

Penn changed the design on the reel. They redesigned the Right Side Bearing (handle side), and modified the Right Side Plate and the Spool to accommodate the design. They also change the Dog Bridge and Dogs, as well as the Main and Pinion Gears.

TO DETERMINE WHICH DESIGN YOU HAVE


Measure the left side spool ball bearing or the right side plate bearing (they are the same).

The NEWER 26N-25 Ball Bearing measures: 8MM I.D. x 18.90MM O.D.
If your bearing matches this, you have the newer design already installed on your reel.

The OLDER 26-25 Bearing measures: 8MM I.D. x 16.99MM O.D.
If your bearing matches this, you have the older design.

IMPORTANT If you need to change ANY of the older parts in the table below, you will need to convert to the corresponding newer parts. You can still replace the older ball bearings on the old system without converting, as the 26-25 is still available at this time.

This design change is no longer available as a kit to convert, as the 13P-25 pinion gear is no longer available, and the 5N-25 main gear is also almost gone.
