Converting in either direction
changing from Std to HS or HS to Std

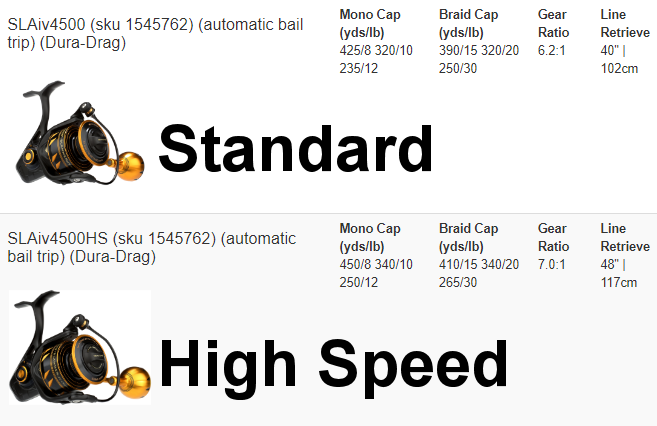

| SLAiv4500HS High Speed 7.0:1 | SLAvi4500 Standard 6.2:1 | ||
|---|---|---|---|
|
TO CONVERT NEED:
QTY 1 of 1559172 8-SLAiv2500HS DRIVE GEAR (MAIN GEAR) QTY 1 of 1559256 19-SLAiv4500HS PINION GEAR QTY 1 of 1559259 47-SLAiv4500HS SPOOL ASSEMBLY OPTIONAL (If you want reel correctly labeled) QTY 1 of 1559254 1-SLAiv4500HS BODY/HOUSING QTY 1 of 1559258 45-SLAiv4500HS BODY COVER ASSEMBLY QTY 1 of 1559900 52-SLAiv4500HS DRAG KNOB ASSEMBLY The housing, housing cover and drag knob are NOT necessary to the conversion Above are all the HIGH SPEED parts |
TO CONVERT NEED:
QTY 1 of 1418972 8-SLA3500 DRIVE GEAR (MAIN GEAR) QTY 1 of 1559198 19-SLAiv3500 PINION GEAR QTY 1 of 1559246 47-SLAiv4500 SPOOL ASSEMBLY OPTIONAL (If you want reel correctly labeled) QTY 1 of 1559239 1-SLAiv4500 BODY/HOUSING QTY 1 of 155924545-SLAiv4500 BODY COVER ASSEMBLY QTY 1 of 1559213 52-SLAiv3500 DRAG KNOB ASSEMBLY The housing, housing cover and drag knob are NOT necessary to the conversion Above are all the STANDARD parts |
THIS SCREEN is not for ordering, just for info on the design change itself.
If you would like to order the newer parts, click on the linked part number to go to it's screen.
