This item is used on multiple models.
Used underneath the 10-300T drag star.
Installation Notes (Using SQL25N parts list as example)
We are using the SQL25N as an example because of a schematic drawing error by Penn on SQL25N, SQL30 and SQL40 drawings
The design is applicable where ever this part setup is used on other Penn reels as well.
SQL25N example parts:

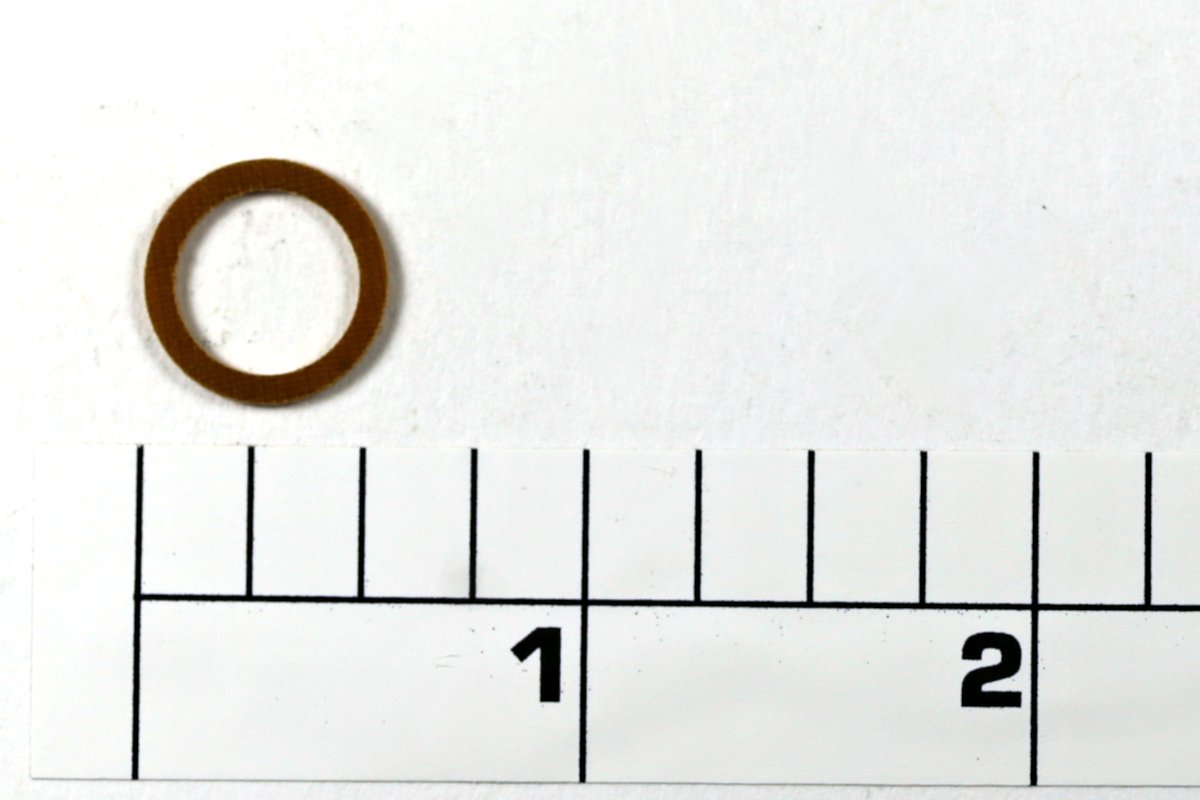

4A 4-300T 1180770 WASHER, GRAPHITE, SMALL
10C 10C-525MAG2 1214527 DETENT SPRING
8B 8-525MAG2 1214525 SPRING RETAINER
4A washer positioning is on top of the 8B and 10C when those two are assembled, with the drag star above it on the gear stud.
Penn's schematic drawings for the SQL25N, SQL30 and SQL40 reels had this incorrectly positioned inbetween the 8B and 10C which causes the 10C to break.
It has been corrected on the drawings here by MysticParts.com
Click to view larger:
Other reels where this layout applies (but the part numbers used are DIFFERENT):
Later runs of the 113HN Baja Special (Parts 4-300T, 8-113HN, 10C-113HN)
The TRQ100T thru TRQ300T (Parts 4-300T, 8-113HN, 10C-113HN)
