INCOMPATABILITY NOTE
The 15L-CFTii3000 / 15L-CLA2000 Seals may not be compatible with the SLAiV series as listed on the 2500/5500/6500/7500/8500/10500 Rev.00 Schematics.
(This may also be a problem with previous models that also use the 24C-CLA5000 cap, such as CFTii, CLA, CLAii, SLAiii)
15L-CFTii3000 / 15L-CLA2000 are much smaller and thinner than the seal that was found on the 24C-CLA5000 caps during disassembly.
We could not identify an existing Penn number to match it to, so we have assigned the number as 15L-CLA5000 Seal (Thicker/Larger)
15L-CFTii3000 / 15L-CLA2000 can be installed on the 24C-CLA5000 cap, but may tear when installing and is incredibly difficult to remove without tearing once installed, and may not provide enough seal.

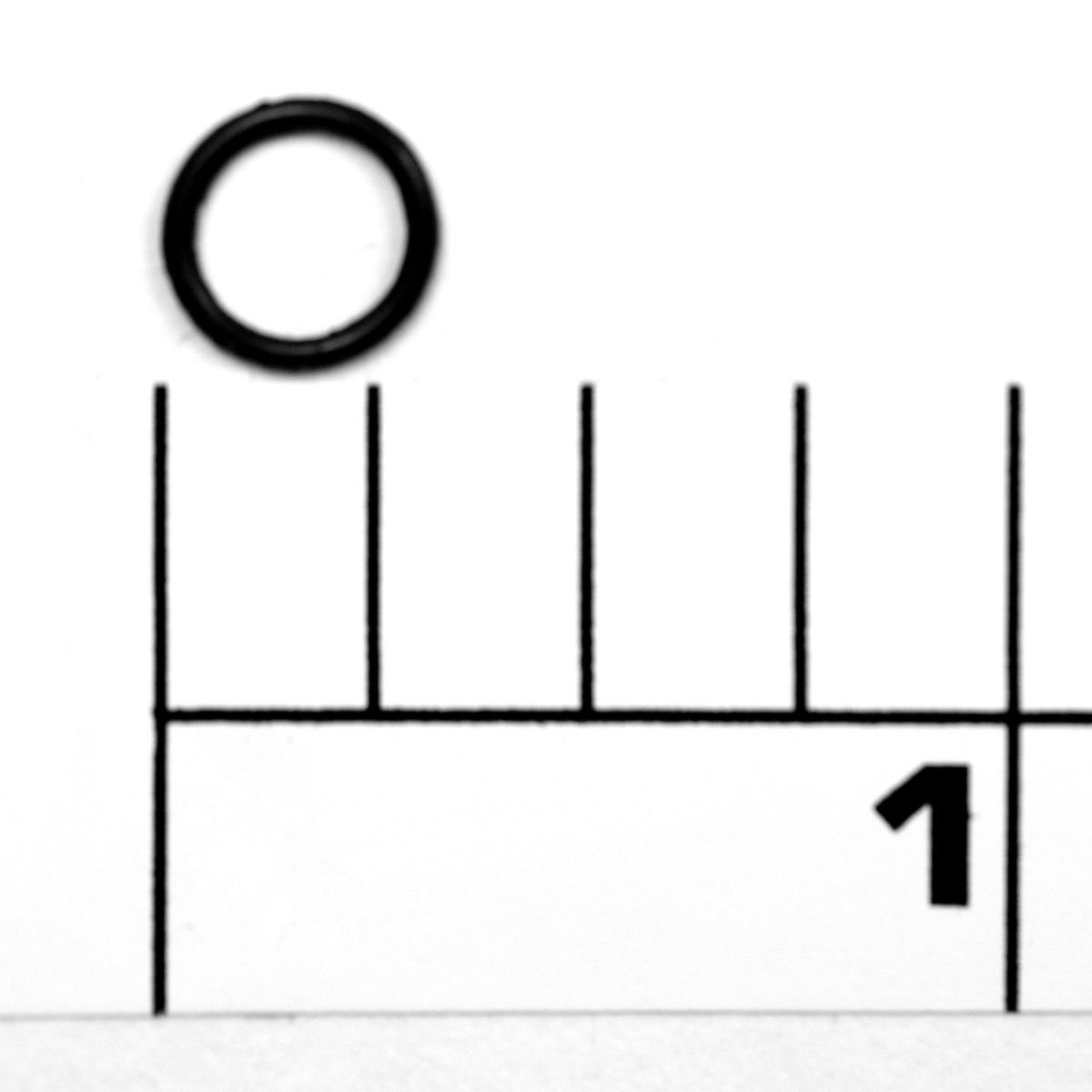

15L-CFTii3000 Seal (Red) is the same size as 15L-CLA2000 Seal (Black)
